Makita HR4002 Parts Breakdown
  1. Manuals
  2. Brands
  3. Makita Manuals
  4. Rotary Hammer
  5. HR4002
  6. Parts breakdown

Makita HR4002 Parts Breakdown

Makita hr4002 rotary hammer: specifications
Hide thumbs Also See for HR4002:
1
2
3

Advertisement

Quick Links

Download this manual See also: Technical Information, Instruction Manual

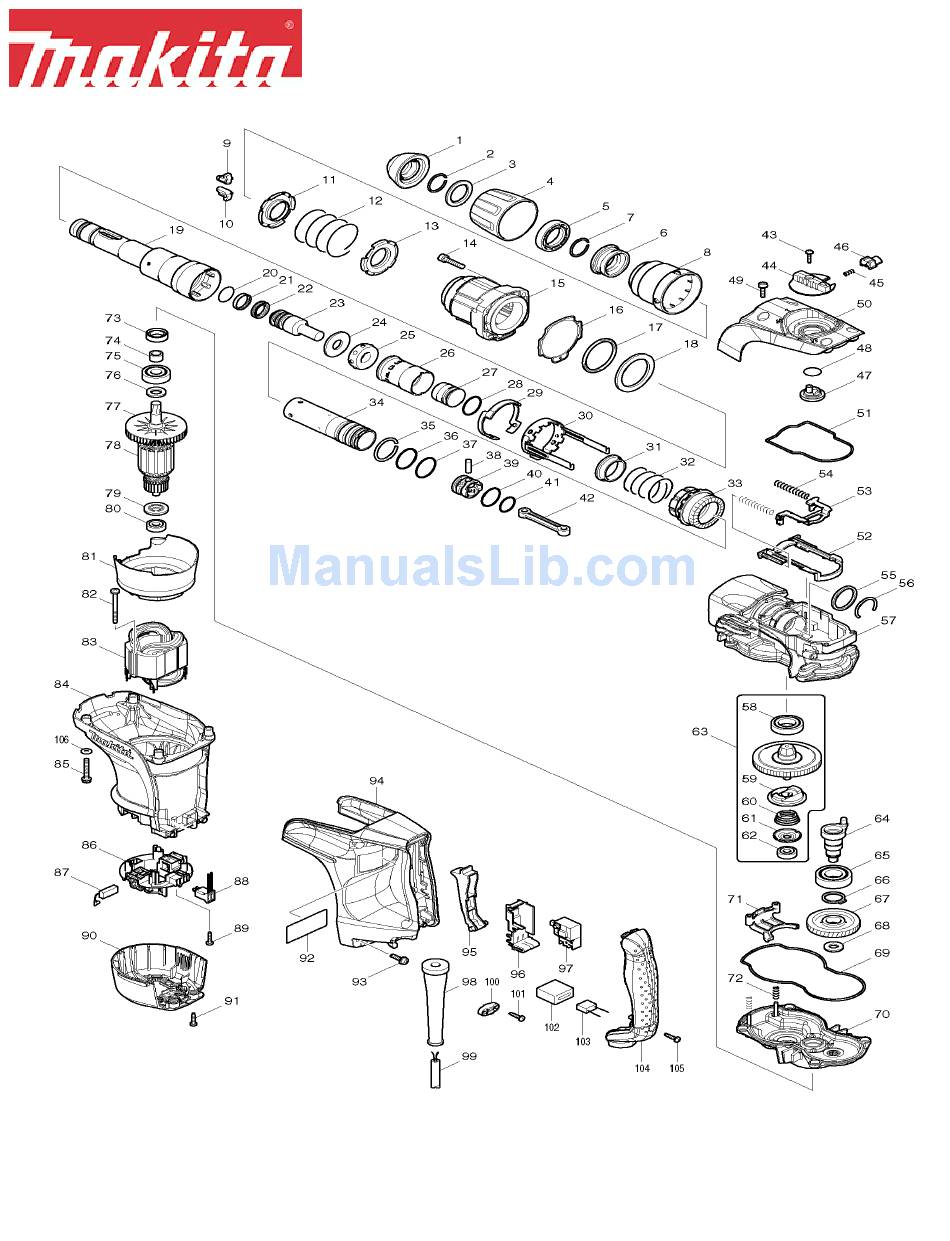

Parts Breakdown
HR4002
Page 1 of 3
2/8/2008
