Honeywell Dolphin CT50 - Data Collection Terminal Quick Start Guide

Out of the Box

Make sure that your shipping box contains these items:

If you ordered accessories for your mobile computer, verify that they are also included with the order. Be sure to keep the original packaging in case you need to return the mobile computer for service.

Memory Card Specifications
Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD™ or microSDHC™ memory cards with Dolphin mobile computers for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options.

Accessories for the CT50

These accessories are available for the CT50:

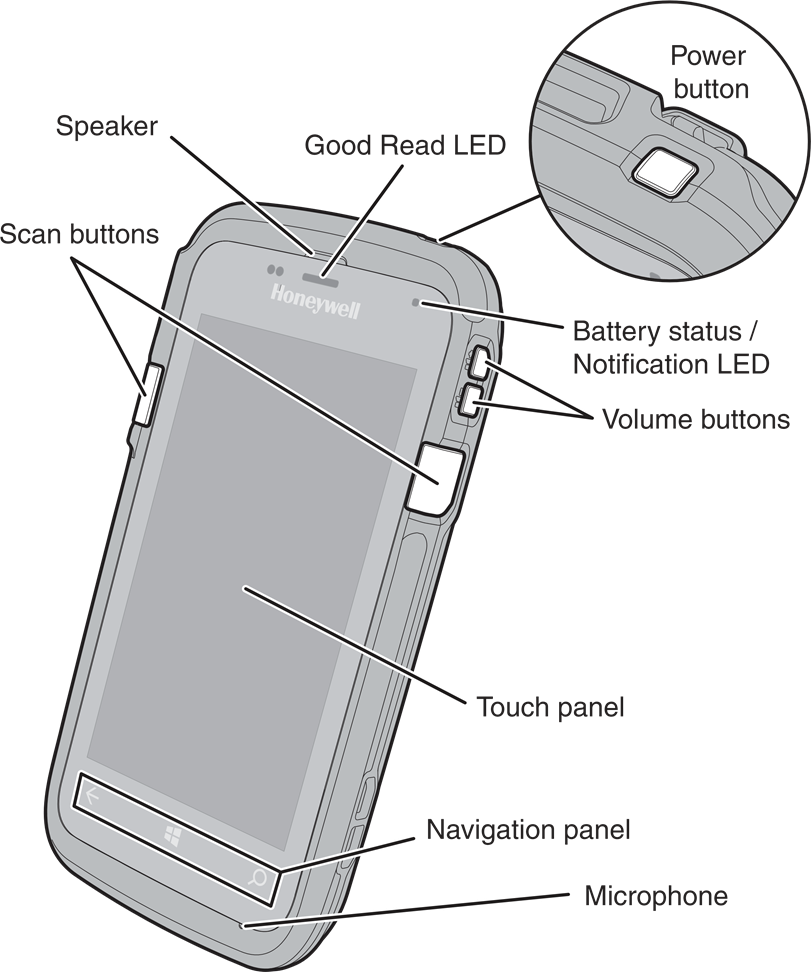

Front Features

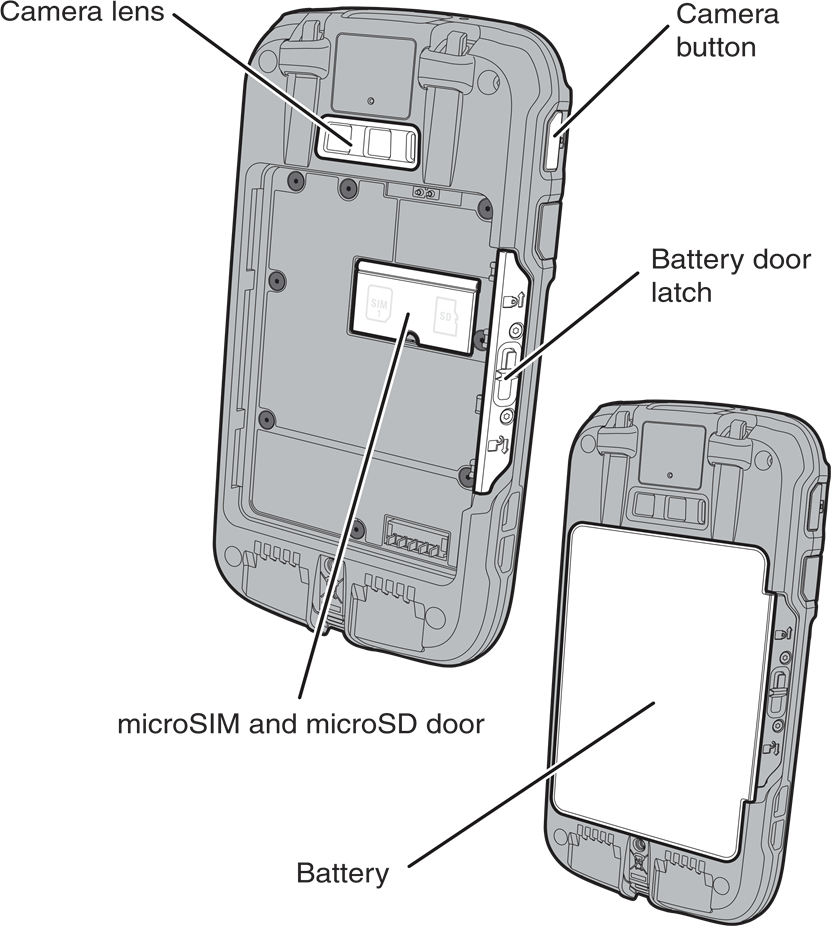

Back Features

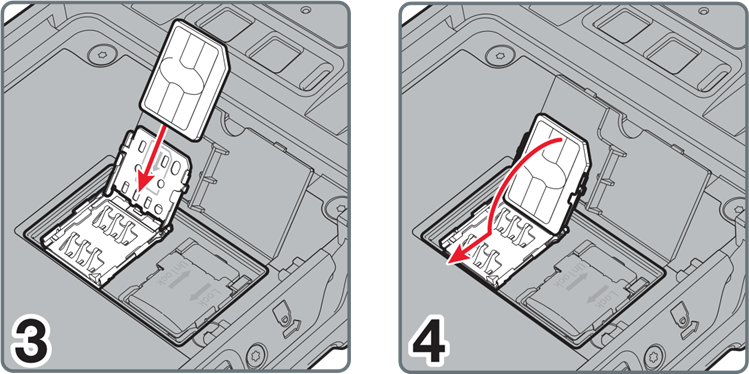

Install a microSIM Card

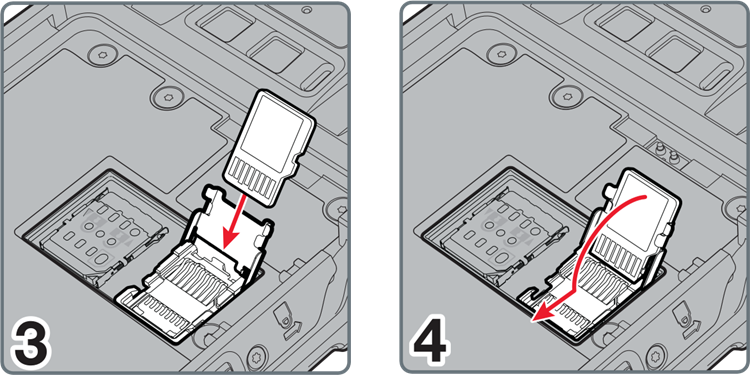

Install a microSD Card

Note: Format the microSD card before initial use.

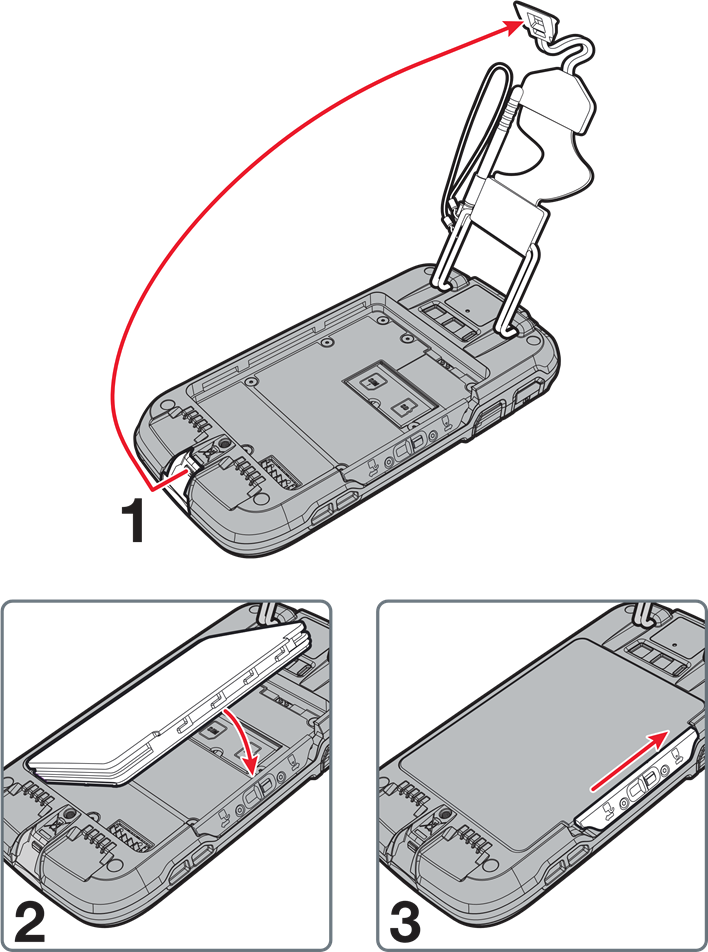

Install the Battery

The CT50 mobile computers ship with a Li-ion 3.6 VDC, 14.6 watt-hour battery manufactured for Honeywell International Inc.

Charge the Computer

The CT50 mobile computer ships with a partially charged battery. Charge the battery with a CT50 charging device for a minimum of 4 hours. Using the computer while charging the battery increases the time required to reach a full charge.

We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywell accessories or power adapters may cause damage not covered by the warranty.

The CT50 mobile computers are designed for use with the following charging accessories: HomeBase, Ethernet HomeBase, ChargeBase, NetBase, Quad Battery Charger, Vehicle Power Adapter, Vehicle Dock, and USB Adapter.

Make sure that all components are dry prior to using the computers and batteries with accessories. Using wet components may cause damage not covered by the warranty.

Power On the CT50 for the First Time

To learn about creating custom provisioning XML files, see the Windows Embedded 8.1 Handheld Administrators Guide at https://technet.microsoft.com/en-us/library/dn499757.aspx.

To quickly start the mobile computer for the first time, use one of these options.

Option 1: Scan the quick start bar code

1. Press the Power button.
2. From the Welcome screen, select your language and then touch next.
3. Point the computer at the bar code below.
4. Press one of the Scan buttons.

   The computer beeps twice and "configuration received" appears on the screen under Barcode.
5. Touch next. "Configuration progress..." appears on the screen.
   When the computer finishes starting up, the Start screen appears.

Option 2: Use the Consumer setup option

1. Press the Power button.
2. From the Welcome screen, select your language and then touch next.
3. On the Set up Your Handheld screen, touch More Options.
4. Select Consumer setup. The computer restarts and then displays the Welcome back screen.
5. On the Connect to Wi-Fi screen, select a Wi-Fi network from the available network list.
6. Type the appropriate security credentials and then select done.
7. Select either recommended or custom from the Set up your Handheld screen and touch OK.
8. Follow the onscreen prompts to set up the computer and create a Microsoft® account (optional).

To learn more about what you can do with a Microsoft account, go to www.windowsphone.com.

Turn Power On or Off

To turn the computer on:

• Press and release the Power button.

To turn the computer off:

1. Press and hold the Power button until "slide down to power off" appears on the screen.
2. Slide the screen down until the image disappears and "Goodbye" appears on the screen,

Note: You should always power off the computer before removing the battery.

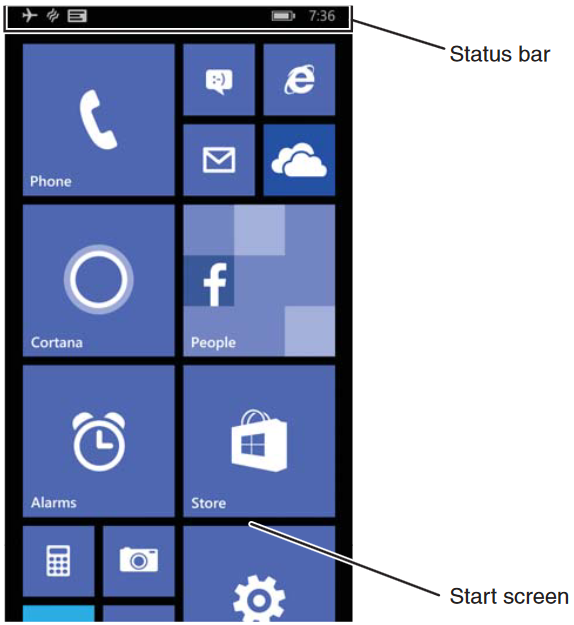

About the Home Screen

Navigation and Function Buttons

Buttons	Description	Function
	Back	Back to the previous screen.
	Home	Return to the Start screen.
	Search	Start a search on the computer or the Internet.
	Volume	Raise or lower the volume of the active speaker.

Note: Additional functionality varies according to the application in use.

Adjust the Screen Time Out Setting

To adjust the amount of time before the screen times out after inactivity:

Lock Screen (Screen Time Out)

Screen Time Out mode automatically turns the touch panel display off and locks the computer to save battery power when the computer is inactive for a programmed period of time.

Turn Airplane Mode On/Off

Note: When Airplane Mode is turned on, appears on the status bar.

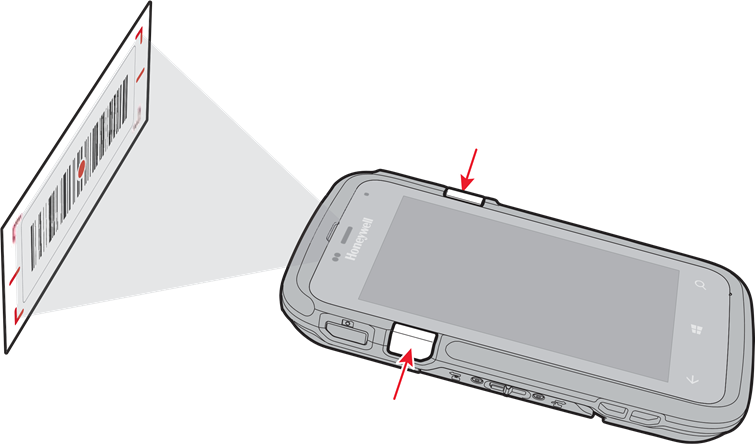

Scan a Bar Code with the ScanDemo

Note: For optimum performance, avoid reflections by scanning the bar code at a slight angle.

The decode results appear on the screen.

How to Use the Color Camera

Restart the Computer

You may need to restart the computer to correct conditions where an application stops responding to the system or the computer seems to be locked up.

To restart the computer if the touch panel display is unresponsive:

• Press and hold the Power + Volume Down buttons for approximately 8 seconds until the computer restarts.

Reset the Computer

For information on how to perform a Factory Reset (Clean Boot), see the user guide.

Support

To search our knowledge base for a solution or log into the Technical Support portal and report a problem, go to www.hsmcontactsupport.com.

User Documentation

For the user guide and other documentation, go to www.honeywellaidc.com.

Limited Warranty

For warranty information, go to www.honeywellaidc.com and click Resources > Warranty.

Patents

For patent information, see www.hsmpats.com.
