Items Supplied >

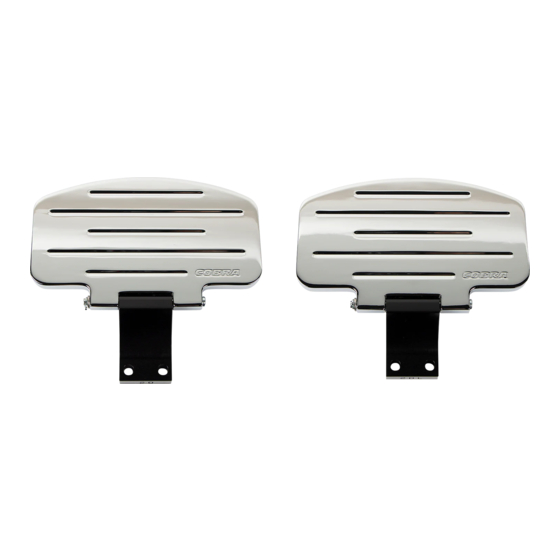

1 – Set Of Floorboards And Mounts
Instruction Manual >
Your passenger floorboards will install in just a few minutes using common tools. Read all instructions
carefully and completely before installing your new passenger floorboards.
1.
Remove the two bolts securing the rear foot peg mounts to the frame.
2.
Locate the shorter of the two (2) Cobra floorboard mounts. This is the left side assembly. Secure the assembly
using the stock hardware.
3.
Secure the longer of the two (2) Cobra floorboard mounts to the right side using the stock hardware. You may
need to loosen the exhaust system to gain proper access to the right side bolts.
*Cobra® recommends you always wear a helmet while riding. Please never operate your motorcycle while under
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycl e and please ride safely.
DOCUMENT NO. 0019
REV. A
11/08
23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180 Fax. 714.692.5016
®
Application(s) >
Yamaha RoadStar 1600 99-03
Yamaha RoadStar 1700 04-14
06-3750/06-4750
www.cobrausa.com
®
