ZERO TRACE TL1KPZ - Lithium-ion Led Flashlight Manual

Overview

SAFETY GUIDELINES / DEFINITIONS

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS

Read all instructions before operating flashlight. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

GENERAL SAFETY WARNINGS AND INSTRUCTIONS

This product or its power cord contains lead, a chemical known to the State of California to cause cancer and birth defect or other reproductive harm. Wash hands after handling.

INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

• To reduce the risk of injury, close supervision is necessary when the flashlight is used near children.
• Use only attachments recommended or sold by the manufacturer.

TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Charge indoors only.
• Do not expose charging adapters or battery to moisture, water or any other liquid.
• Use only the charging adapter supplied by the manufacturer to recharge.
• When an extension cord is used:
  • The marked rating of the detachable power supply cord or extension cord should be at least as great as the electrical rating of this appliance.
  • The cord should be arranged so that it will not drape over the countertop or tabletop where it can be tripped over, snagged, or pulled on unintentionally (especially by children).
  • The extension cord should be kept dry and off the ground.

FIRE HAZARD: Keep flashlight lamp away from materials that may burn.

TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:

• The LED gets hot quickly. Do not touch the hot lens, guard or enclosure.
• Never place the light face down on any surface when lit, charging or not in use. Never store the light face down on any surface.
• Never look directly into the light or shine the light into another person's eyes.
• Keep sharp objects away from lens — it can crack or break.
• Do not expose this unit to extremely high temperatures.
• Do not drop or throw flashlight. It contains a lithium-ion battery pack.
• Use only with either the AC or DC charging adapter and/or the USB charging cable that are provided with unit. Plug in the charging cable at the flashlight first, then plug into the charging source.
• Do not overcharge: Recharge up to 4 hours maximum or until the charge status LED indicator lights blue.
• After charging/recharging, disconnect charging adapter and wait 5 minutes before use.
• Do not crush, cut, pull or expose the charging cable to extreme heat.
• Position the charging cable so it does not become entangled or become a safety hazard. Keep the charging cable away from sharp edges.
• Do not open the flashlight body casing. There are no user-serviceable parts inside.
• Do not operate the flashlight without the lens in place.
• To reduce risk of damage to the charging cable, pull by the plug rather than the cord when disconnecting.
• Do not attempt to charge the unit if the charging adapter is damaged – return the charging adapter to manufacturer for repair or replacement.

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM-ION BATTERIES

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, BURST HAZARD, OR INJURY TO PERSONS OR PROPERTY:

Lithium-ion batteries are small, compact and ideal for providing long-lasting power to this unit. However, they must be used and charged properly. Improper use can result in serious injury, fire, or death.

• Lithium-ion batteries can explode in the presence of a source of ignition. Do not use the product in the presence of an open flame.
• Do not place this lithium-ion battery powered unit in fire or apply heat to it.
• Do not subject this lithium-ion battery powered unit to strong impacts or shocks. The battery in this unit contains safety and protection devices which, if damaged, may cause the battery to generate heat, rupture or ignite.
• Do not expose the lithium-ion battery to water or salt water, or allow the battery to get wet.
• Avoid storing this lithium-ion battery powered unit in the basement, bathroom or other areas of the house that are or may become wet or where humidity and moisture may concentrate.
• Do not leave this lithium-ion battery powered unit in direct sunlight, or use or store the unit inside cars in hot weather. Doing so may cause the battery to generate heat, rupture, or ignite. Using the battery in this manner may also result in a loss of performance and a shortened life expectancy.
• Never charge this unit near heat or flammable objects.
• NEVER THROW WATER ON A BURNING LI-ION BATTERY! If a lithium-ion battery does catch on fire, it will burn even more violently if it comes in contact with water or even moisture in the air. A fire extinguisher must be used.

Battery Charging and Capacity
This unit is delivered in a partially charged state – you must fully charge it before using it for the first time.
When stored at room temperature with a full charge, Li-ion batteries will begin to discharge from the time they are manufactured, even when unused. Deep discharges also decrease their capacity. Battery life can be extended by the following:

• Charge battery to full capacity before storage.
• Optimal storage temperature for this unit is between 5°C and 20°C (41°F and 68°F).
• Never discharge the battery fully.
• Charge after each use.
• Always charge at least once every 3-6 months if not in frequent use to prevent overdischarge.

Transportation of Lithium-Ion Batteries

• Always check all applicable local, national, and international regulations before transporting a unit containing a Lithium-Ion battery.
• Transporting an end-of-life, damaged, or recalled battery may, in certain cases, be specifically limited or prohibited.

INSTRUCTIONS PERTAINING TO WATERPROOF FLASHLIGHTS

The rubber O-ring acts to preserve the waterproof qualities of the flashlight. The O-ring seals the charging port cover to prevent water from entering the gap. An undamaged rubber O-ring and lens, and proper sealing of the charging port cover before use are very important.

TO REDUCE THE RISK OF PROPERTY DAMAGE:

• Attempting to remove the rubber O-ring, use of the unit with a damaged O-ring or lens, improper sealing of the waterproof charging port cover, and/ or submerging this unit in water deeper than 1 meter, for time longer than 30 minutes and/ or in temperatures other than between 41ºF and 104ºF (5ºC and 40ºC), may cause the unit to no longer be waterproof. Do not use the unit if these conditions exist or it could sustain permanent damage.

INSTRUCTIONS PERTAINING TO THE USB PORTS

•
  Some household USB-powered electronics will not operate with the USB ports provided with this device. Check the manual of the corresponding electronic device to confirm that it can be used with this type of USB port.
• The USB ports do not support data communication. They only provide power to an external USB powered device (5V DC/1A using the flashlight's USB port or 5V DC/2A using the USB ports on the AC or DC charging adapters). Make sure the rating of equipment plugged into the each USB port does not exceed the amperage stated.
• Do not attach USB hubs allowing connection of multiple personal electronic devices to any of these USB ports on the flashlight or charging adapters.

SAVE THESE INSTRUCTIONS

INTRODUCTION

Read this Instruction Manual and follow the instructions carefully before using your new flashlight.

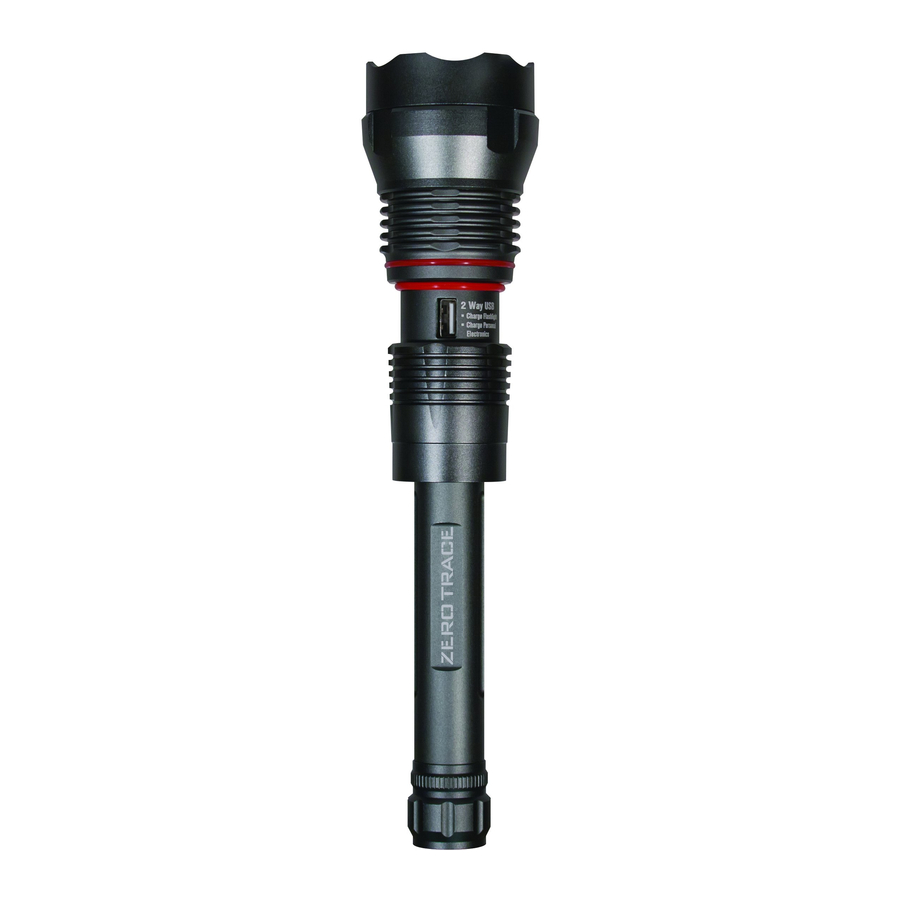

FEATURES

1. Charging port cover
2. Power/light mode button
3. USB port (for use with USB charging cable and charging adapters)
4. Battery/charge status LED indicator / translucent USB power button
5. Rubber O-ring
6. USB charging cable (for use with 120 volt AC/USB and 12 volt DC/USB charging adapters)
7. 12 volt DC/USB charging adapter
8. 12 volt DC/USB charging adapter LED Indicator
9. 12 volt DC/USB charging adapter USB port
10. 120 volt AC/USB charging adapter
11. 120 volt AC/USB charging adapter USB port

READING THE BATTERY/CHARGE STATUS LED INDICATOR

The battery/charge status LED indicator is located inside the translucent USB Power Button. It lights or flashes in three colors to indicate the following:

When charging:
Blue: Battery is in a fully charged state.
Yellow (flashing): Battery is in a partially charged state.
Red (flashing): Battery needs to be recharged.

When operating the USB port (once the translucent USB power button has been pressed):
Blue: Battery is operating at full voltage.
Yellow: Battery is operating at partial voltage.
Red: Battery is operating at low voltage, and should be recharged.
Red (flashing): Battery is operating at extremely low voltage. The built-in low voltage protection has activated and the unit will automatically shut down. The unit must be recharged immediately.

CHARGING/RECHARGING THE FLASHLIGHT

This unit is shipped in a partially charged state. Charge unit after purchase and BEFORE first use using the 120 volt AC/USB charging adapter for up to 4 hours or until the battery/charge status LED indicator lights blue.

Recharge after each use until the charge status LED indicator lights blue.

When the unit is not in use, we recommend that the battery is charged at least every 3 to 6 months.

TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:

• Never place the light face down on any surface when charging.
• Make sure the flashlight is turned OFF during recharging, as operating the flashlight can slow the recharging process.
• Failure to keep the battery charged will cause permanent damage and result in poor performance.

Charging/recharging using the 120 Volt AC/USB Charging Adapter

1. Make sure the power mode button and the translucent USB power button are both turned off* (the flashlight is not lit and the translucent USB power indicator/ power button is not lit).
   • The translucent button does not operate the flashlight, only the USB power port.
2. Unscrew the charging port cover (counterclockwise) until the USB port is exposed.
3. Insert the USB charging cable into the USB port on the flashlight.
4. Insert the other end of the USB charging cable into the 120 volt AC/USB charging adapter.
5. Plug the 120 volt AC/USB charging adapter into a (powered) standard North American 120 volt 60Hz outlet. The battery/charge status LED indicator will light or flash in one of three colors (as described in the "Reading the Battery/Charge Status LED Indicator" section) to indicate the charging status.
6. Charge up to 4 hours or until the battery/charge status LED indicator lights blue.
7. When charging is complete, first unplug the AC/USB charging adapter from the power source, then disconnect the USB charging cable from the adapter and the flashlight. Store the adapter and cable in a safe place.
8. Screw the charge port cover back in place (clockwise) until it is finger right. Make sure it fits securely, but do NOT overtighten.

Charging/recharging using the 12 Volt DC/USB Charging Adapter

1. Make sure the power mode button and the translucent USB power button are both turned off* (the flashlight is not lit and the translucent USB power indicator/ power button is not lit).

• The translucent button does not operate the flashlight, only the USB power port.

2. Unscrew the charging port cover (counterclockwise) until the USB charging port is exposed.
3. Insert the USB charging cable into the USB port on the flashlight.
4. Insert the other end of the USB charging cable into the 12 volt DC/USB charging adapter.
5. Insert the 12 volt DC/USB charging adapter into the 12 volt DC accessory outlet of a vehicle or other functioning 12 volt DC power source. The LED indicator on the 12 volt DC/USB charging adapter will light green when it is properly plugged into the 12 volt DC power source. The battery/charge status LED indicator will light or flash in one of three colors (as described in the "Reading the Battery/Charge Status LED Indicator" section) to indicate the charging status.
   Note: Some vehicles require that the ignition be switched to the accessory position in order to power the accessory outlet.
6. Charge up to 4 hours or until the battery/charge status LED indicator lights blue.
7. When charging is complete, first unplug the 12 volt DC/USB charging adapter from the 12 volt DC power source, then disconnect the USB charging cable from the adapter and the flashlight. Store the adapter and cable in a safe place.
8. Screw the charge port cover back in place (clockwise) until it is finger right. Make sure it fits securely, but do NOT overtigthten.

TO AVOID THE RISK OF PROPERTY DAMAGE:

• NEVER CONNECT THE UNIT TO A POSITIVE GROUNDED VEHICLE.
• The 12 Volt DC charging adapter must only be connected to batteries with a nominal output voltage of 12 volts. The unit will not operate from a 6 volt battery and will sustain permanent damage if connected to a 24 volt battery.

Charging/recharging using the USB charging cable and a device with a USB power port (not supplied)

1. Make sure the power mode button and the translucent USB power button are both turned off* (the flashlight is not lit and the translucent USB power indicator/ power button is not lit).
   ^* The translucent button does not operate the flashlight, only the USB power port.
2. Unscrew the charging port cover (counterclockwise) until the USB charging port is exposed.
3. Insert the USB charging cable into the USB port on the flashlight.
4. Insert the other end of the USB charging cable into a device's functional USB power port. The battery/charge status LED indicator will light or flash in one of three colors (as described in the "Reading the Battery/Charge Status LED Indicator" section) to indicate the charging status.
5. Charge until the battery/charge status LED indicator lights blue.
6. When charging is complete, disconnect the USB charging cable from the device's USB power port and the flashlight. Store the cable in a safe place.
7. Screw the charge port cover back in place (clockwise) until it is finger tight.
   Make sure it fits securely, but do NOT overtigthten.

OPERATING THE FLASHLIGHT

The power/light mode button is located at the bottom of the flashlight. It turns the flashlight on and off; and is also used to select high (bright), low (dimmer) and flashing (SOS) modes.

Notes: The battery/charge status LED indicator will not light during cordless operation of the flashlight.
To check the battery status, make sure the flashlight is turned off, then press on the translucent USB power button. The battery/charge status LED indicator will light or flash in one of three colors (as described in the "Reading the Battery/ Charge Status LED Indicator" section) to indicate the internal battery status.
The battery/charge status LED indicator will automatically turn off if it detects there is no USB output power for 10 seconds.

Never attempt to operate the flashlight's USB port and the flashlight simultaneously.

Operating the flashlight cordless

Disconnect the charging cable or adapter, then select the light mode as follows:

FOR HIGH (BRIGHT) MODE:

1. Press the power/light mode button firmly (a "click" will sound). The flashlight is now operating at its highest (brightest) setting.
2. Press the power/light mode button firmly again (a "click" will sound) to turn the flashlight off.

FOR LOW (DIMMER) MODE:

1. Press the power/light mode button firmly (a "click" will sound).
2. Press the power/light mode button gently once (no "click" will sound). The flashlight is now operating at its lowest (dimmer) setting. Gently press it twice more to return to high (bright) mode.
3. Press the power/light mode button firmly again (a "click" will sound) to turn the flashlight off.

FOR FLASHING (SOS) MODE:

1. Press the power/light mode button firmly (a "click" will sound).
2. Press the power/light mode button gently twice (no "click" will sound). In this mode, the light will repeatedly emit the SOS signal (a continuous sequence of three short flashes/three longer flashes/three short flashes). Gently press it once again to return to high (bright) mode.
3. Press the power/light mode button firmly again (a "click" will sound) to turn the flashlight off.

If the flashlight battery voltage is low, it may operate in low (dimmer) mode even when the power/light mode button is pressed only once. The built-in low voltage protection will activate after a short period of operation, then the unit will automatically shut down This is a special feature to protect the unit's internal battery from damage. Recharge the battery before continuing use.

TO REDUCE THE RISK OF PROPERTY DAMAGE: Make sure the flashlight's USB port is turned off (the battery/charge status LED indicator is not lit) during operation.

Operating the flashlight corded
Attach the appropriate cable or adapter as described in the "Charging/Recharging" section. Operate normally the flashlight as outlined in the previous section.

The flashlight will operate while either charging adapter or the USB cable is attached, but will continue to draw power from the unit's Lithium-Ion battery while the flashlight operates. This may cause the low voltage protection to activate and shut the flashlight down. Manufacturer recommends only operating the unit in corded mode for a short period of time.

OPERATING THE FLASHLIGHT'S USB PORT

The flashlight's USB port is located under the charging port cover. It provides 5 volts/1A of DC power to an external USB powered device.

1. Disconnect the charging adapter or cable and make sure the flashlight is turned off.
2. Unscrew the charging port cover (counterclockwise) until the USB port is exposed.
3. Press the translucent USB power button to power on the USB port. The battery/charge status LED indicator will light or flash in one of three colors (as described in the "Reading the Battery/Charge Status LED Indicator" section) to indicate the internal battery status.
4. Simply plug the USB device into the flashlight's USB port and operate normally.
5. Press the translucent USB power button again to turn off the USB port. Make sure the translucent USB power button is in the off position (is not lit) when the unit is being recharged or stored.
6. 6Screw the charge port cover back in place (clockwise) until it is finger tight. Make sure it fits securely, but do NOT overtigthten.

Note: The flashlight's USB port will automatically shut down (the battery/charge status LED indicator will automatically turn off) if it detects there is no USB output power for 10 seconds.

TO REDUCE THE RISK OF PROPERTY DAMAGE:

• Do not simultaneously operate the flashlight and the flashlight's USB port.

OPERATING THE 120 VOLT AC/USB CHARGING ADAPTER'S USB PORT

Plug the 120 volt AC/USB charging adapter into a (powered) standard North American 120 volt 60Hz outlet. Then simply plug the USB device into the USB outlet and operate normally.

TO AVOID THE RISK OF PROPERTY DAMAGE:

• Always plug the 120 volt AC/USB charging adapter to the standard North American 120 volt 60Hz outlet before plugging any devices into it.

OPERATING THE 12 VOLT DC/USB CHARGING ADAPTER'S USB PORT

Plug the 12 volt DC/USB charging adapter into a vehicle's 12 volt DC accessory outlet or other functioning 12 volt DC power source. The LED indicator on the 12 volt DC/ USB charging adapter will light green to indicate that it is properly connected. Then simply plug the USB device into the USB outlet and operate normally

TO AVOID THE RISK OF PROPERTY DAMAGE:

• NEVER CONNECT THE UNIT TO A POSITIVE GROUNDED VEHICLE.
• The 12 volt DC/USB charging adapter must only be connected to batteries with a nominal output voltage of 12 volts. The unit will not operate from a 6 volt battery and will sustain permanent damage if connected to a 24 volt battery.
• Always connect the 12 volt DC/USB charging adapter to the 12 volt DC power source before plugging any devices into it.

CARE AND MAINTENANCE

All batteries lose energy from self-discharge over time and more rapidly at higher temperatures. When the unit is not in use, we recommend that the battery is charged at least every 3 to 6 months.
If the unit gets dirty, gently clean the outer surfaces of the flashlight unit with a soft cloth moistened with a mild solution of water and detergent.
Except for the fuse in the 12 volt DC/USB charging adapter, there are no userreplaceable parts. Periodically inspect the condition of adapters, connectors and wires. Contact manufacturer to replace any components that have become worn or broken.

Battery replacement/disposal
BATTERY REPLACEMENT
The battery should last the service life of the unit. Service life is dependent on a number of factors including but not limited to the number of recharge cycles, and proper care and maintenance of the battery by the end user. Contact manufacturer for any information you may need.

SAFE BATTERY DISPOSAL

Contains a lithium-ion battery, which must be disposed of properly. Recycling is required. Failure to comply with local, state and federal regulations can result in fines, or imprisonment.
Please recycle.

• Do not dispose of the battery in fire as this may result in an explosion.
• Before disposing of the battery, protect exposed terminals with heavy-duty electrical tape to prevent shorting (shorting can result in injury or fire).
• Do not expose battery to fire or intense heat as it may explode.

Fuse replacement in the 12 volt DC/USB charging adapter

1. Unscrew the end cap counterclockwise and remove.
2. Remove center contact and fuse.
3. Check fuse with a continuity checker.
4. If blown, locate a replacement 2 amp fuse.
5. Replace the fuse, center contact and end cap.
6. Screw end cap clockwise until it is finger tight - DO NOT OVERTIGHTEN.
7. Test for proper operation of the 12 volt DC/USB charging adapter.

TROUBLESHOOTING

The flashlight will not charge

• Check that the translucent USB power button is turned off.
• Check the connection to the AC or DC power source. Make sure there is good contact.
• Confirm that there is functioning AC or DC current.

The flashlight will not operate cordless

• Make sure the power/light mode button has been pressed firmly (and that you hear a distinct "click") to turn the flashlight on.
• Check that the translucent USB power button is turned off.
• The internal battery may be completely discharged. Charge the unit following the directions given in this manual.

The flashlight's USB port will not operate

• Make sure the cable and/or adapter is disconnected from any live AC or DC power source.
• Make sure the power/light mode button is turned off.
• Make sure the translucent USB power button is pressed to turn the USB port on.
• The flashlight's USB port will automatically shut down (the battery/charge status LED indicator will automatically turn off) if it detects there is no USB output power for 10 seconds. Press the translucent USB power button again to turn the flashlight's USB port back on.
• Make sure the rating of equipment plugged into the flashlight's USB port does not exceed 1A continuous.
• The internal battery may be completely discharged. Charge the unit following the directions given in this manual.

The 120 volt AC/USB charging adapter's USB port will not operate

• Make sure you have live AC power to the outlet the 120 volt AC/USB charging adapter is plugged into.
• Make sure the rating of equipment plugged into the charging adapter's USB port does not exceed 2A continuous.

The 12 volt DC/USB charging adapter's USB port will not operate / LED indicator on the 12 volt DC/USB charging adapter does not come on

• Check the connection to the 12 volt power source. Make sure there is good contact.
• Confirm there is functioning DC current.
• The fuse inside may have blown. Replace the fuse following the instructions in this manual.
• Make sure the rating of equipment plugged into the charging adapter's USB port does not exceed 2A continuous.

If the unit does not operate after taking the steps given above, contact the manufacturer at (877) 571-2391.

ACCESSORIES

Recommended accessories for use with this unit may be available from the manufacturer. If you need assistance regarding accessories, please contact manufacturer at 1-877-571-2391.

The use of any accessory not recommended for use with this appliance could be hazardous.

SERVICE INFORMATION
Whether you need technical advice, repair, or genuine factory replacement parts, contact the manufacturer at 877-571-2391.

ONE-YEAR LIMITED WARRANTY
The manufacturer warrants this product against defects in materials and workmanship for a period of ONE (1) YEAR from the date of retail purchase by the original end-user purchaser ("Warranty Period").

If there is a defect and a valid claim is received within the Warranty Period, the defective product can be replaced or repaired in the following ways:

1. Return the product to the manufacturer for repair or replacement at manufacturer's option. Proof of purchase may be required by manufacturer.
2. Return the product to the retailer where product was purchased for an exchange (provided that the store is a participating retailer).

Returns to retailer should be made within the time period of the retailer's return policy for exchanges only (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges.

This warranty does not apply to accessories, bulbs, fuses and batteries; defects resulting from normal wear and tear, accidents; damages sustained during shipping; alterations; unauthorized use or repair; neglect, misuse, abuse; and failure to follow instructions for care and maintenance for the product.

This warranty gives you, the original retail purchaser, specific legal rights and you may have other rights which vary from state to state or province to province. This product is not intended for commercial use.

SPECIFICATIONS

Flashlight (Conforms to UL STD.73)
Bulb:	10 watt LED bulb
Battery:	Lithium-Ion, 7.2 V DC
Input:	5V DC, 2A
USB Output:	5V DC, 1A
120 Volt AC/USB Charging Adapter (Conforms to UL STD. 60950-1)
Input:	120V AC, 60Hz, 0.25A
Output:	5V DC, 2A
12 Volt DC/USB Charging Adapter (Conforms to UL STD. 2089)
Input:	12V DC, 1.1A
Output:	5V DC, 2A
Fuse:	2A

Imported by Baccus Global LLC, 595 S. Federal Highway, Suite 210, Boca Raton, FL 33432 (877) 571-2391

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not approved by the party responsible for compliance could void user's authority to operate the equipment.
