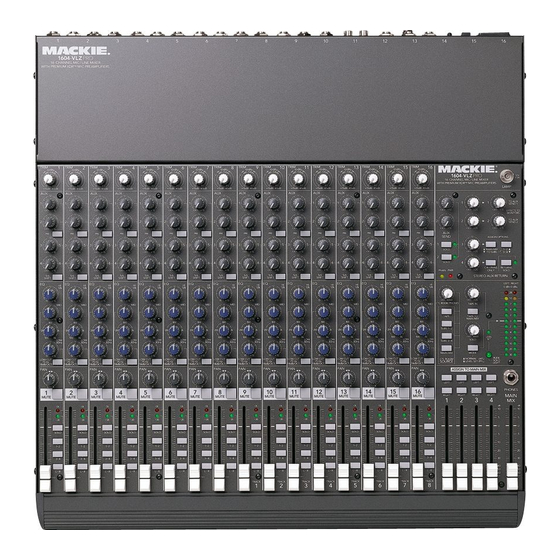

Mackie 1604-VLZ PRO Service Manual

16-channel mic/line mixer
Hide thumbs Also See for 1604-VLZ PRO:

Advertisement

Quick Links

Download this manual
1604-VLZ PRO
16-CHANNEL MIC/LINE MIXER
SERVICE MANUAL
©1998 MACKIE DESIGNS, INC.
820-173-00
Page 3 is interactive

Advertisement

loading

Related Manuals for Mackie 1604-VLZ PRO

Summary of Contents for Mackie 1604-VLZ PRO

  • Page 1 1604-VLZ PRO 16-CHANNEL MIC/LINE MIXER SERVICE MANUAL ©1998 MACKIE DESIGNS, INC. 820-173-00 Page 3 is interactive...
  • Page 2 SERVICE ON THIS EQUIPMENT IS TO BE PERFORMED BY EXPERIENCED REPAIR TECHNICIANS ONLY...

  • Page 3: Service/Technical Assistance

    Mackie Designs, Service Technical Assistance, is available 8AM - 5PM PST, Monday through Friday for Authorized Mackie Service Centers, at 1-800-258-6883. Feel free to call with any questions and speak with a carefully-calibrated technician. If one is not available, leave a detailed message and a qualified Mackoid will return your call asap.

  • Page 5: Assembly Guide

    The circled item numbers are ASSEMBLY GUIDE shown in the parts list on page 9...
  • Page 6 ASSEMBLY GUIDE The circled item numbers are shown in the parts list on page 9...
  • Page 7 ASSEMBLY GUIDE The circled item numbers are shown in the parts list on page 9...
  • Page 8 ASSEMBLY GUIDE The circled item numbers are shown in the parts list on page 9...
  • Page 9 090-101-00 Master parts # PART NO. DESCRIPTION NOTES 090-101-00 1604VLZ PRO 120V 090-101-01 1604VLZ PRO 230V 090-101-02 1604VLZ PRO 100V 040-060-00 18GA 1007 RED 11.5 BBL PG 040-070-00 18GA 1007 11.5 QD/BBL PLG 040-071-00 RIB 26C SHRD PLZ M/F 15” 040-072-00 RIB 20C SHRD PLZ M/F 13.5”...

  • Page 10: Reference Designators

    055-219-00 REV B, Pod Board PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 110-013-00 RESISTOR CF R71-72 115-081-00 RES .25W 1% 6.81 R525-556 115-373-00 RESISTOR CF 6K81 R493-524 130-003-02 POTRTY 50KG 9MM MN TN PAN 50KG R557 140-051-00 RESISTOR CF R1-4 R6 R9 R12 R15 R19 R23 R45-47 R54-56 R59-62 140-065-00 RESISTOR CF...
  • Page 11 055-219-00 REV B continued PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 145-389-00 RES MF SM .1W 1% 10K0 OHM 10K0 R68-69 R74-76 R83-87 R93-103 R109-110 R114 R117-124 R326 R332 R338 R344 R350 R356 R362 R368 R376 R383 R390 R397 R404 R411 R418 R425 R431 R438 R445 R452 R459 R466 R473 R480 R485-492 212-001-00 CER .01UF 10% 50V X7R SM...
  • Page 12 055-220-00 REVA, Main board PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 130-002-02 RESISTOR POT 9MM HORIZ 50KB R118-119 R218-219 R318-319 R418-419 R518-519 R618-619 R718-719 R818-819 R918-919 R1018-1019 R1118-1119 R1218-1219 R1318-1319 R1418-1419 R1518-1519 R1618-1619 130-003-02 RESISTOR POT 9MM HORIZ 50KG R1704 R1716 R1790 R1808 R111 R113 R115 R160 R211 R213 R215 R260 R311 R313 R315 R360 R411 R413 R415 R460 R511 R513 R515 R560 R611...
  • Page 13 055-220-00 REV A continued PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 140-066-00 RES TF SM .1W 5% 510 OHM R17 R1874 R143-146 R150-152 R161 R202 R243-246 R250-252 R261 R302 R343-346 R350-352 R361 R402 R443-446 R450-452 R461 R502 R543-546 R550-552 R561 R602 R643-646 R650-652 R661 R702 R743-746 R750-752 R761 R802 R843-846 R850-852 R861 R902 R943-946 R950-952 R961...
  • Page 14 PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS R1159 R1163 R1204 R1212 R1214 R1216 R1228-1230 R1233 R1259 R1263 R1304 R1312 R1314 R1316 R1328-1330 R1333 R1359 R1363 R1404 R1412 R1414 R1416 R1428-1430 R1433 R1459 R1463 R1504 R1512 R1514 R1516 R1528-1530 R1533 R1559 R1563 R1604 R1612 R1614 R1616 R1628-1630 R1633 R1659 R1663 R1781 R1785 R1799 R1803 R1817 R1828 R1837 R1848 R1859 R1879-1880 R1902 R1904...
  • Page 15 055-220-00 REV A continued PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 140-109-00 RESISTOR CF R132 R157-158 R232 R257-258 R332 R357-358 R432 R457-458 R532 R557-558 R632 R657-658 R732 R757-758 R832 R857-858 R932 R957-958 R1032 R1057-1058 R1132 R1157-1158 R1232 R1257-1258 R1332 R1357-1358 R1432 R1457-1458 R1532 R1557-1558 R1632 R1657-1658 R1709 R1718 R1724-1725 R1777 R1782 R1786-1787 R1795 R1800...
  • Page 16 PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 212-001-00 CAPACITOR CERAMIC SMT 0.01 C1755 C1857-1858 212-004-00 CAPACITOR CERAMIC SMT 220PF C103 C203 C303 C403 C503 C603 C703 C803 C903 C1003 C1103 C1203 C1303 C1403 C1503 C1603 C1808 C1813 C1818 C1820 C1823 C1825 C1844 C1850 212-005-00 CAPACITOR CERAMIC SMT 20PF...
  • Page 17 055-220-00 REV A continued PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 220-013-02 CAPACITOR LYTIC RADIAL TAPE .22UF C104-106 C204-206 C304-306 C404-406 C504-506 C604-606 C704-706 C804-806 C904-906 C1004-1006 C1104-1106 C1204-1206 C1304-1306 C1404-1406 C1504-1506 C1604-1606 220-014-00 CAPACITOR LYTIC RADIAL KS 2.2UF C1804 220-030-00 CAPACITOR LYTIC RADIAL 1000UF 10% C1-16...
  • Page 18 055-249-00 REV A, power board PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 040-341-00 DIS 18AWG 1015 GRN 2.5IN LGTM 100-008-00 RESISTOR CF R4-5 100-028-00 RESISTOR CF R9-10 100-059-00 RESISTOR CF R7-8 100-061-00 RESISTOR CF R11-12 100-080-00 RESISTOR CF 100-104-00 RESISTOR CF 200K R2 R6 110-059-00...
  • Page 19 080-120-00 Power supply subassembly, 120V PART NO. DESCRIPTION VALUE REFERENCE DESIGNATORS 040-090-00 DIS 18G 1007 GRN 10 LUGX2 040-151-00 DIS 18GA 1015 GRN 8IN LG 040-341-00 DIS 18G 1015 GRN 2.5 LGTM 055-249-00-01 PCB ASSY PS 1604VLZ PRO 1 See page 18 for details 080-028-00 SA XRMR 1604VLZ 120V 400-009-00...
