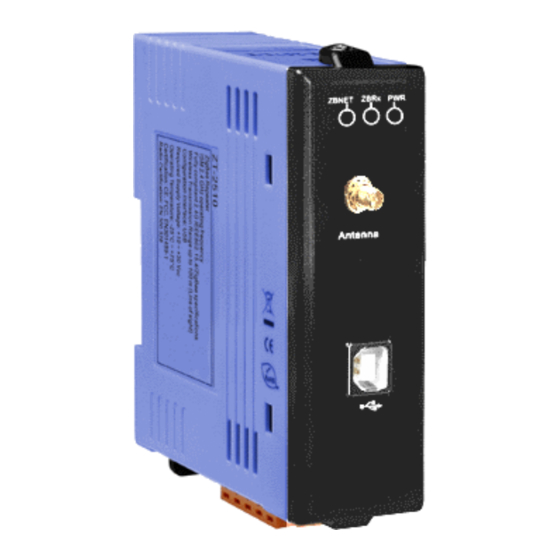

ICP DAS USA ZT-2510 Quick Start Manual

Hide thumbs Also See for ZT-2510:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Packing List
In addition to this guide, the package includes the following items：
ZT-2510
Technical Support
service@icpdas.com
www.icpdas.com
 For Desktop Web
ANT-124-05
Resources
How to search for drivers, manuals and spec
information on ICP DAS website.
 For Mobile Web
ZT-2510
ZT-2510
ZT-2510 Quick Start
CA-USB18
v2.0, Jul 2022
P1

Advertisement

loading

Related Manuals for ICP DAS USA ZT-2510

Summary of Contents for ICP DAS USA ZT-2510

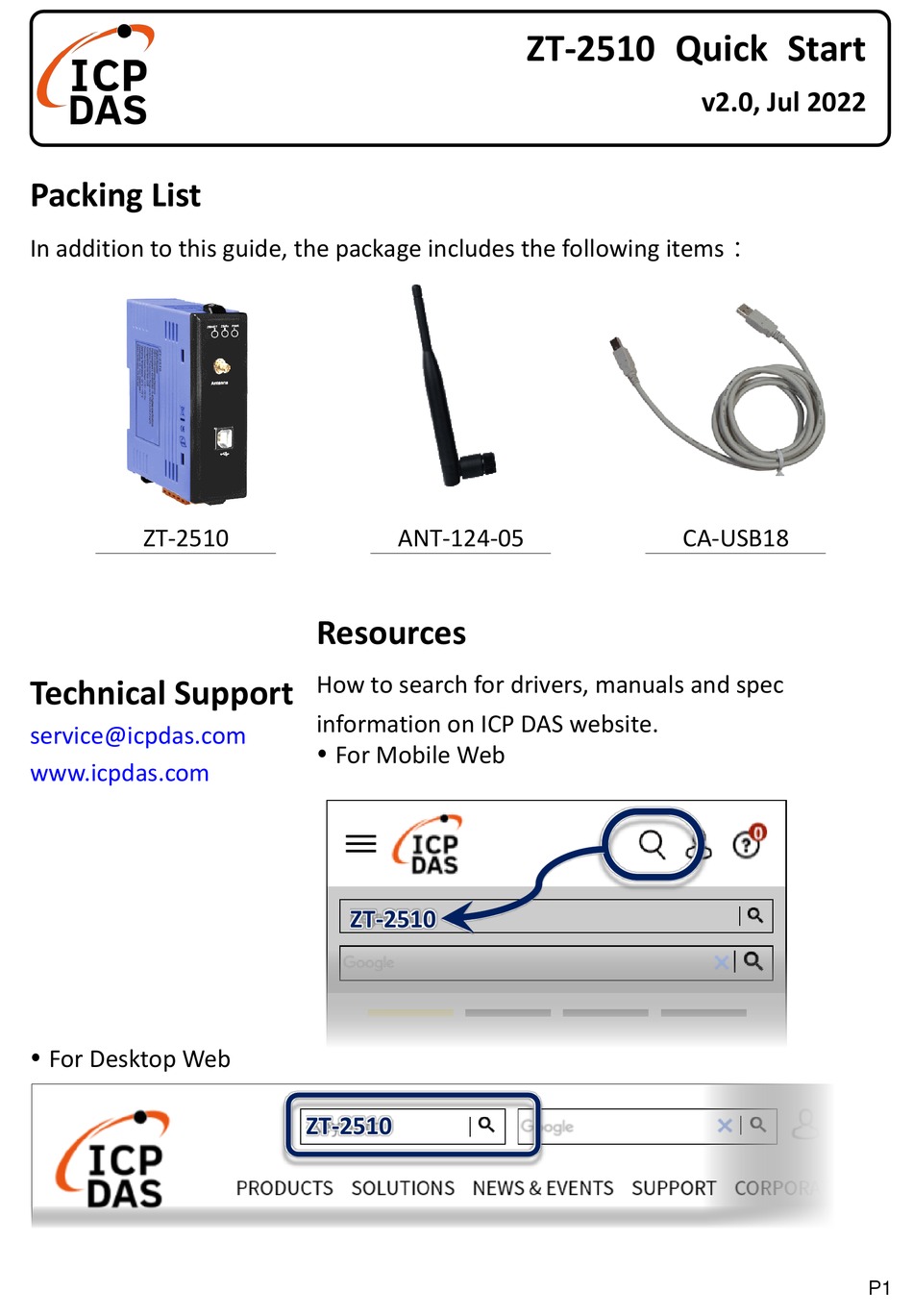

  • Page 1 ZT-2510 Quick Start v2.0, Jul 2022 Packing List In addition to this guide, the package includes the following items： ZT-2510 ANT-124-05 CA-USB18 Resources How to search for drivers, manuals and spec Technical Support information on ICP DAS website. service@icpdas.com  For Mobile Web www.icpdas.com...

  • Page 2: Preparations For Use

    Windows 7 ZT-2510_Driver_Windows Windows 8 ZT-2510_V2_Driver_v2.12 _Vista_7_8_10 Windows 8.1 .36.4 Windows 10 Please refer [ZT-2510 _Linux _UserManual] document Linux https://www.icpdas.com/en/download/show.php?nu m=2836&model=ZT-2510 1.3 Install ZT Configuration Utility Please go to the following URL to download and install [ZT Configuration Utility]. https://www.icpdas.com/en/download/file.php?num=5320...
  • Page 3 Description of setting parameters 2.1 Pan ID “Pan ID” is the group identity of a ZigBee network. The “Pan ID” must be the same if they are in the same ZigBee network. (Valid values range from 0x0000 to 0x3FFF) 2.2 Node ID “Node ID”...
  • Page 4 CE/FCC certification if adjusting this parameter, nor assume any liability because of the adjustment parameters derived from the RF Power. Connecting the Power and PC 3.1 Connect the USB port of ZT-2510 and then you can start configuration. ZT-2510： CA-USB18...
  • Page 5 4.2 Click the [Serial Port] icon and then select the COM Port number connected to ZT-2510. 4.3 After selecting the COM Port number, a list of model numbers will be displayed. Select the [ZT-2510] to configure. After clicking the button, the utility will begin checking the connection.
  • Page 6 4.4 Once a connection is established, select either the [Default] or the [Wizard] function from the settings mode page. Wizard Default Whether you select either the [Default] or the [Wizard] option for performing configuration, both are used to configure the Pan ID, Node ID, RF Channel, RF Power and so the relevant parameters.

  • Page 7: Led Indicator Status

    LED Indicator Status LED Indicator Status Introduction The status of ZigBee network [ZigBee Router (Slave)] Steady Lit Signal Strength ZigBee Net Blinking (500 ms) Signal Available (Green LED) Blinking (1s) Signal Weak Blinking (2s) Signal Terrible or No ZigBee Network The status of ZigBee communication ZigBee RxD Blinking...

  • Page 8: Technical Support

    Technical Support If you are any difficulties using the ZT-2510 module, save the ZigBee configurations using the described below. Please also provide a description of problem and attach file to an email and send it to service@icpdas.com. 6.1 Connect the ZT-2510 to the PC via USB. Launch the ZT Configuration Utility and select [Save Log] icon to save the configuration of ZT-2510 as a file.
