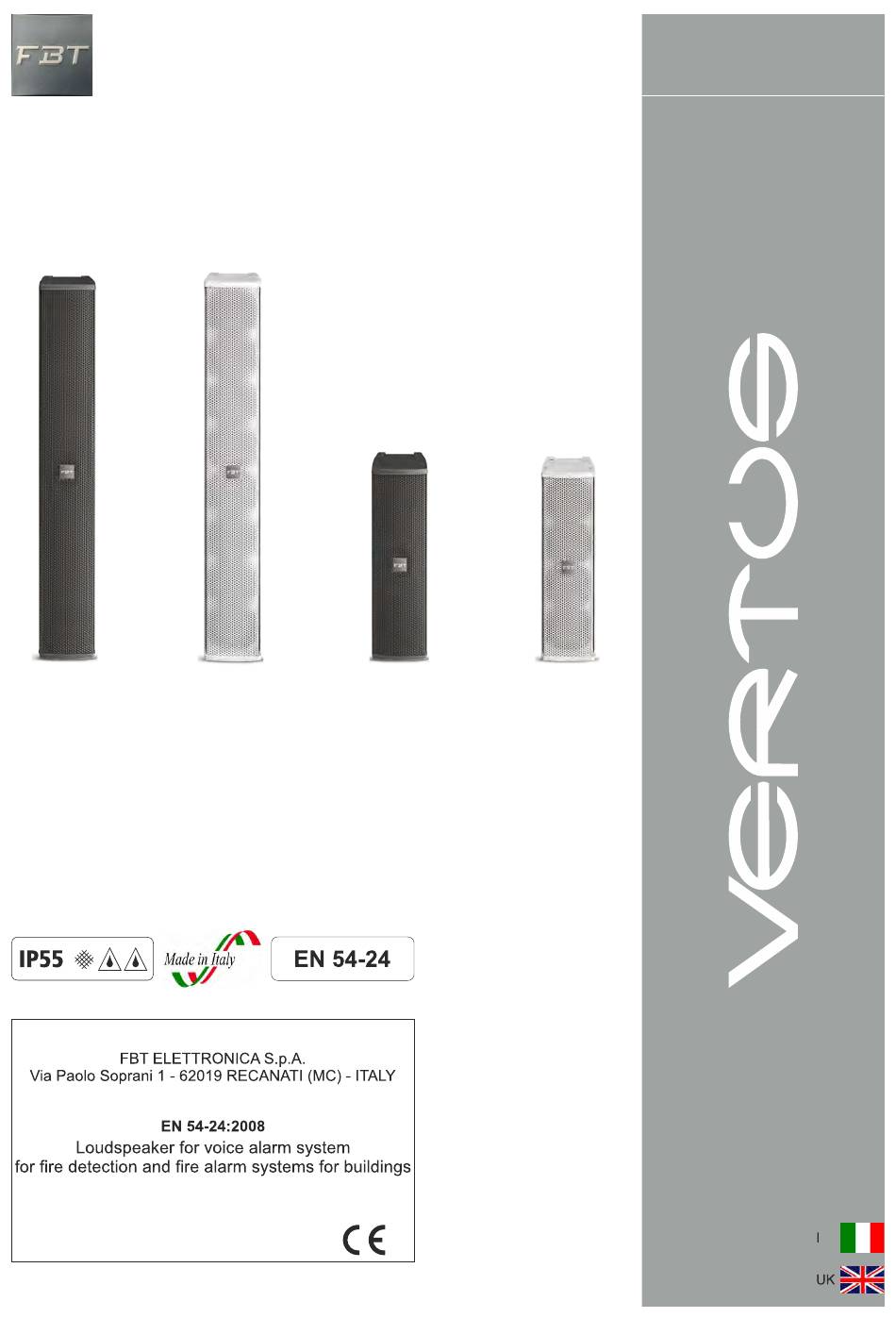

Page 1: Modalità Di Collegamento
CLA 403T / CLA 803T COLUMN LINE ARRAY 0068/CPR/142-2020 CLA 403T / CLA 803T Type B Dichiarazione di Prestazione (DoP) disponibile sul sito www.fbt.it Declaration of Performance (DoP) available on the website www.fbt.it... -
Page 3: Table Of Contents
INDICE AVVERTENZE PER LA SICUREZZA DESCRIZIONE DIMENSIONI ACCESSORI MODALITÀ DI INSTALLAZIONE 4 - 5 - 6 IMPOSTAZIONI MODALITÀ DI COLLEGAMENTO CARATTERISTICHE TECNICHE STUDIO DEL SISTEMA DI SONORIZZAZIONE SAFETY WARNINGS DESCRIPTION DIMENSIONS ACCESSORIES INSTALLATION MODE 14 - 15 - 16 SETTINGS CONNECTION MODES TECHNICAL SPECIFICATIONS STUDY OF THE ADDRESS SYSTEM... -
Page 4: Safety Warnings
• Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts of this product. • La FBT ELETTRONICA SpA raccomanda che l'installazione di questo prodotto venga eseguita solamente da installatori professionali qualificati in grado di eseguirla correttamente e certificarla in accordo con le normative vigenti. -
Page 5: Dimensions
DIMENSIONS CLA 803T 126 mm 4.95" FRONT SIDE REAR 100 mm 3.93" CLA 403T 126 mm 4.95" FRONT SIDE REAR 100 mm 3.93"... -
Page 6: Accessories
• FBT flying accessories are manufactured for their exclusive use with VERTUS systems and have not been designed for being used with any other speaker or device. - Page 7 Should the above safety regulations and calculation of the overall weight not to be complied with, FBT Elettronica SpA will not be liable for any damage to persons or property.
- Page 8 INSTALLATION MODE WALL ARRANGEMENT • To fix the speaker to the wall, use the adjustable wall hooks "VT-WH3" and "VT-W3" respectively to install the speaker horizontally or vertically. VERTICAL INSTALLATION 80 mm 3,14 inch WT-W3 HORIZONTAL INSTALLATION IN THE LEFT SIDE OF THE SPEAKER 80 mm 3,14 inch...
- Page 9 INSTALLATION MODE WALL ARRANGEMENT HOOK BETWEEN TWO COLUMNS • To hook two or more columns to each other, use the fixed joint "VT-JF3" or joint "VT- J3" to create an angle between the two speakers. VT-J3 VT-JF3 VT-W3 VT-JF3 VERTICAL INSTALLATION VT-JF3 HORIZONTAL INSTALLATION VT-WH3...
-
Page 10: Settings
NARROW WIDE WIDE INPUT INPUT POLARITY POLARITY 0068 / XXX / XXX-XXXX 0068 / XXX / XXX-XXXX TYPE B TYPE B FBT ELETTRONICA SpA FBT ELETTRONICA SpA OUTPUT CABLE OUTPUT CABLE Column Line Array Column Line Array 100V 100V NARROW... -
Page 11: Connection Modes
CONNECTION MODES SPEAKERS CONNECTION 4Ω 4Ω 4Ω 4Ω Constant impedance speaker systems Total = 16Ω Constant impedance outputs are generally used in the case of lines with a small number of speakers having a certain power and being placed at a minimum distance Series connection from the amplifier. -
Page 12: Technical Specifications
Loudspeaker physical references reference plane It is recommended to use an external DSP processor (e.g. FBT DLM26) to improve system performance and reliability. The settings are available on the website www.fbt.it in the section dedicated to reference axis VERTUS CLA models. -
Page 13: Study Of The Address System
STUDY OF THE ADDRESS SYSTEM System functional requirements Volume control on single No. of speakers speaker or groups Choice of connection type: constant voltage constant impedance Absorbed power Length of lines Analysis of ambient Ambient dimensions acoustic qualities Type of installation: Type of message Choice of speakers ceiling or wall... - Page 16 CODE 42973 08.09.2020 rev.02...
