I N S T R U CT I O N M A N UA L

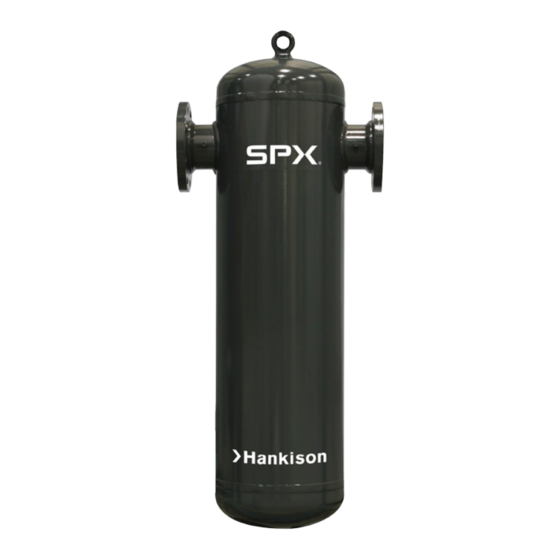

HF Series
Compressed Air Filters
Models HF(grade)-52 through HF(grade)-92 Standard, High Pressure and Corrosion Resistant Models
F O R M N O . : 4 0 1 1 2 0 8
R E V I S I O N : 1 0 / 2 0 1 5
R E A D A N D U N D E R S TA N D T H I S M A N UA L P R I O R TO O P E R AT I N G O R S E R V I C I N G T H I S P R O D U CT.

Advertisement

loading

Summary of Contents for HANKISON SPXFLOW HF Series

  • Page 1 I N S T R U CT I O N M A N UA L HF Series Compressed Air Filters Models HF(grade)-52 through HF(grade)-92 Standard, High Pressure and Corrosion Resistant Models F O R M N O . : 4 0 1 1 2 0 8 R E V I S I O N : 1 0 / 2 0 1 5 R E A D A N D U N D E R S TA N D T H I S M A N UA L P R I O R TO O P E R AT I N G O R S E R V I C I N G T H I S P R O D U CT.
  • Page 2: Table Of Contents

    General Safety Information 1. Pressurized devices • Do not exceed maximum operating pressure indicated on serial number tag. • Make certain filter is fully depressurized before servicing. 2. Breathing Air • Air treated by this equipment may not be suit- able for breathing without further purification.
  • Page 3: Model Number Configuration

    Model Number Configuration (1) Filter Grade (2) Housing (3) Connection Sizes (4) Features 11 - Mechanical Separator Capacity D = Internal Automatic Drain Number scfm [m hr] @ Mechanism 9 - Separator/Filter 100 psig [7 kgf/cm G = Differential Pressure Gauge 7 - Air Line Filter Indicator 625 [1110]...
  • Page 4: Installation

    1.0 Installation A. Where Used/Air Quality After Filtration Solid particle Liquid removal Maximum inlet Remaining Grade Where used removal (maximum efficiency (at liquid loading oil content size in microns) rated conditions) ppm w/w ppm w/w Separator - downstream of an aftercooler 30,000 Point-of-use - where no aftercooler is installed —...
  • Page 5 B. Piping C. Drain Provisions (Grades 11, 9, 7, 5, 3) 1. Before installing, blow out pipe line to remove The bottom of the pressure vessel is provided with scale and other foreign matter. a drain plug for shipping purposes. Provision for manual or automatic draining is necessary for proper 2.
  • Page 6 D. Differential Pressure Gauge (DPG) - NOTES: Grades 9, 7, 6, 5, 3 1) Make certain o-rings are in place on the bottom of the gauge body. On standard units, a gauge and installation kit are 2) Connect the low pressure transmission bolt (bolt shipped separately packaged for field installation.
  • Page 7: Operation

    2.0 Operation d. Presence of liquids because of lack of or failure of prefilters Do not operate filter at pressures in ex- e. Flow, pressure and temperatures outside de- cess of Maximum Working Pressure indicated on Serial sign conditions Number Tag. f.
  • Page 8: Maintenance

    3.0 Maintenance B. Procedure for Element Replacement THIS FILTER IS A PRESSURE CONTAINING A. When to Replace Filter Element DEVICE. DEPRESSURIZE BEFORE SERVICING. NOTE: Grades 7,6,5,3,1 - complete element is re- 1. By-pass the filter to permit placed; Grade 9 - unless separator core is damaged servicing.
  • Page 9 5. Grades 7, 6, 5, 3, 1 - Discard old elements and o- 9C. Models with flanged bottom rings. a. Swing blind bottom flange into position. b. Rebolt after inspecting flange gasket to ensure 5A. Grade 9 its integrity. a. Remove nylon nut and CONE bottom cap 10.
  • Page 10: Dimensions And Weights

    Dimensions and Weights...
  • Page 11: Warranty

    WARRANTY he manufacturer warrants the product manufactured by it, when properly installed, operated, applied, and main- tained in accordance with procedures and recommendations outlined in manufacturer’s instruction manuals, to be free from defects in material and workmanship for a period of one (1) year from date shipment to the buyer by the manufacturer or manufacturer’s authorized distributor provided such defect is discovered and brought to the manu- facturer’s attention within the aforesaid warranty period.
  • Page 12 Resistant Models SPX FLOW, INC. 4647 S.W. 40th Avenue Ocala, Florida 34474-5788 U.S.A. P: (724) 745-1555 F: (724) 745-6040 E: hankison.americas@spxflow.com www.spxflow.com/hankison Improvements and research are continuous at SPX FLOW Inc. Specifications may change without notice. ISSUED 10/2015 Form No.: 4011208 Revision: E COPYRIGHT ©2015 SPX FLOW Inc.
