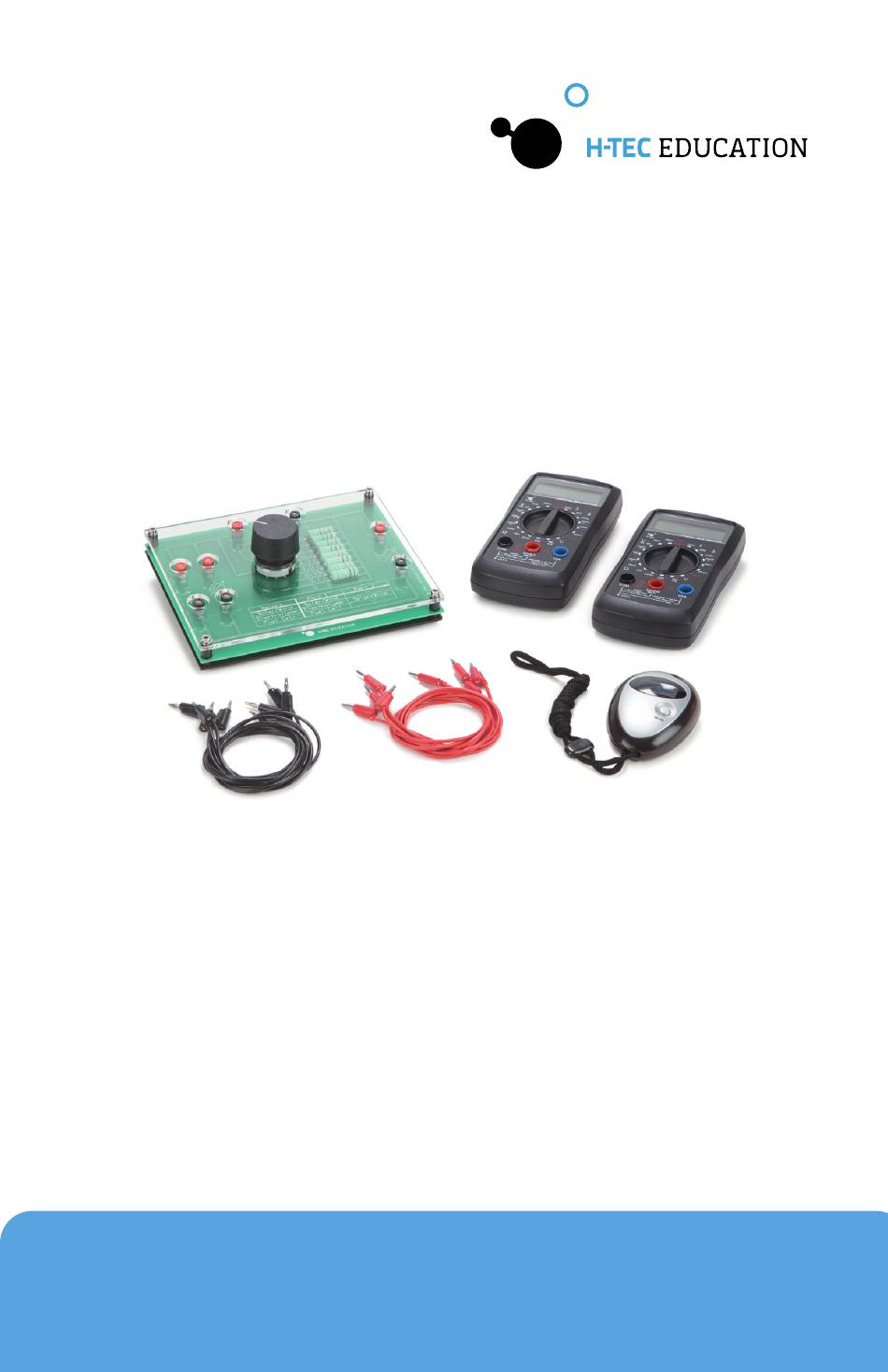

- Page 1 Operating Instructions A129 - Measurement Set...
-
Page 2: Table Of Contents
Table of contents Your duty to supervise General Safety Precautions Function & intended use Contents Setup Use of the Measurement Set Technical Data Troubleshooting Shutting Down Maintenance Transport & Storage Disposal www.myhtec.com... -
Page 3: Your Duty To Supervise
Function and intended use The Measurement Set is exclusively for the purpose of determination of measured data of H-TEC Education products within the scope of training or demonstration activities. Any other use is impermissible! Please refer to the relevant operating instructions for information on the operation of the components to be measured, such as fuel cells, electrolyzers or solar modules. -
Page 4: Contents
Contents 1x Measurement Board 2x Multimeter w/ operating instructions 1x Stopwatch w/ operating instructions 1x Cable Set 4x connecting cable, 2mm, length 50 cm, red 4x connecting cable, 2mm, length 50 cm, black www.myhtec.com... - Page 5 Also necessary (not included) 2x 9V Battery for multimeters Initial start-up Initial start-up of multimeters Initial start-up of multimeters Inesert batteries, and read the operating instructions for the multimeters activating them as described there. Initial start-up of stopwatch Initial start-up of stopwatch Read the operating instructions for the stopwatch activating it as described there.
-
Page 6: Use Of The Measurement Set
Use of the Measurement Set The connections and use of the decade resistor are explained below. Please refer to the relevant operating instructions and experimental templates for implementation of experiments, as well as the set-up and operation of the components to be measured. - Page 7 General Warning Notices General Warning Notices CAUTION Risk of damage to the equipment by applying any type of voltage! Risk of damage to the equipment by applying any type of voltage! Applying any type of voltage to the “U” and “I” connections, may damage set-up components beyond repair.
- Page 8 Fig. 2: Set-up example with Solar Module 2.) Setting up for experiments with electrolyzers: 2.) Setting up for experiments with electrolyzers: The components are connected as follows: Port 1 Port 1 Port 2 Port 2 Solar module or wind Multimeter Multimeter Electrolyzer turbine...
-
Page 9: Technical Data
Technical Data Please refer to the relevant operating instructions for the technical data of the multimeters and the stopwatch. Decade resistor: Decade resistor: H x W x D: 50 x 160 x 132 mm Connections: female connectors for 2 mm multilam plugs Port 1 &... -
Page 10: Troubleshooting
Make sure that all the components are connected as described in the “Use of the Measurement Set” chapter. Possible Cause: The decade resistor is damaged. Solution: Contact H-TEC Education The measured values are determined to be too low. Possible Cause: Higher currents can magnify contact resistance. Solution: Check all connections for secure, tight connection. -
Page 11: Shutting Down
Shutting Down Before putting the product into storage, the following point must be observed: Remove all batteries from devices. Maintenance The product’s components do not need maintenance. The following points should, however, be observed: Only use dry, lint-free cloths to clean the products. Ensure that the batteries in the multimeters and stopwatch are replaced before they are completely deleted. - Page 12 © H-Tec Education, 2019. No part of this guide may be reproduced in whole or in part in any manner without the express written permission of H-Tec Education. Subject to technical changes. H-TEC EDUCATION 1902 Pinon Dr. Unit B College Station, TX 77845...
