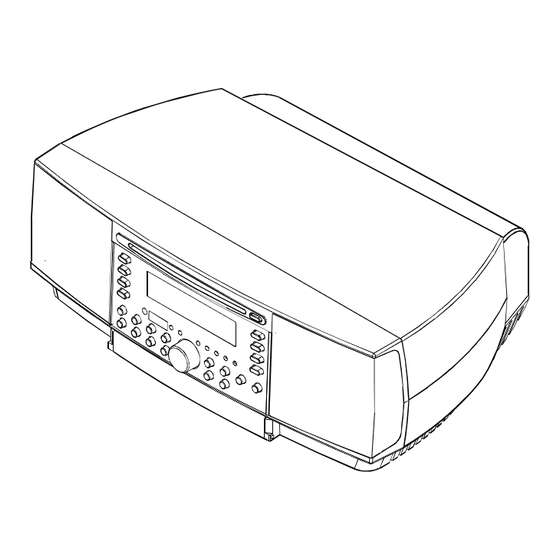

- Page 1 MSU-2020 User Manual Before attempting to connect, operate or adjust this product, please read these instructions completely. Please save this manual.
-
Page 2: Table Of Contents
Before operating or adjusting this product, please read these instructions manual completely and keeps this manual for future reference. Accessories Please check and identify the supplied accessories. Operating instructions (this manual) Remote control x 1 CR2025 3V Lithium battery inside the remote control (for the remote control) AM Loop Antenna x 1 FM Antenna x 1... -
Page 3: Safety Information
IMPORTANT SAFETY INSTRUCTIONS & CAUTION CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF POWER PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. 3125A Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. Improper use can result in potential electrical shock or fire hazards. - Page 4 follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. 8. Carts and Stands The product should be used only with a cart or stand that is recommended by the manufacturer. 8A. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
- Page 5 20. Replacement Parts When replacement parts are required, parts specified by the manufacturer or have the same characteristics as the original part. Unau result in fire, electric shock, or other hazards. 21. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in prope 22.
-
Page 6: Precautions
recautions On Safety Do not use we t hands to pull out the plug. It ma y cause ele ctrical shock. If the unit does not work, please pull out the plug for safety. Contact us for further technical support. Before moving the unit, please make sure the power adapter is from the wall outlet. -
Page 7: Operation Panel
eration Panel ★ FRONT SIDE 31 30 29 ★ REAR SIDE FM ANTENNA ANTENNA INPUT 75 OHMS INPUT OUTPUT... - Page 8 Operation Panel FRONT PANEL .CD DISC SLOT 2. RADIA BAND SELECTI ON (FM/AM) PRESS THE BUT TON TO SWITCH F 3. SELECTS MULTI-SOURCE FUNCTION PRESS THE BUTTON REPEATEDLY TO SWITCH RADIO, CD, USB(SD/MMC),AUX SET SLEEP DELAY TIME ADJUSTMENT PRESS THE BUTTON TO ADJUST SLEEP 5.
-
Page 9: The Remote Control
The Remote Control... - Page 10 Installing the Battery of the remote control Pull the tab in first time use. When the power of battery is battery. Install th e battery : Insert the CR2025 type battery (3V) in the battery compartment ( the polarity "＋" on top) then push the battery compartment into the remote control.
-
Page 11: Setting The Clock
etting Clock and Basic Connection Before operating the unit in the first time, please m local AC voltage. Connect the power cord by inserting AC plug into outlet. Setting the Clock Set the clock of the unit i n the first time. You can set the clock in any time, just press the time + button and time- button ( + and Press the time + button to increase the current time and press the time –... -
Page 12: Basic Connection
Aux Input You can listen to the sound from external audio device ( li ke: DVD player and CD player ) by connecting to auxiliary input of this unit. The unit has two auxiliary inputs. You can connect external audio device to AUX IN o real panel or on the front panel. -
Page 13: Radio Operation
Radio Operation Power on and Standby operation Plugging in the power cord to AC outlet and press the POWER button on the front panel or the remote control to do power on or standby operation. (see Fig 9) The clock display on LCD when the unit is in standby mode. -
Page 14: Cd Disc Operation
CD Disc Operation CD Disc Operation Starting CD mode Plug the power cord to AC outlet, then press the POWER button to start operation. Press the SOURCE button repeatedly to select CD mode for CD playback. If the unit isn’t in CD mode, you also can directly insert a CD disc into the CD slot to automatically select CD mode and playback. - Page 15 CD Disc Operation Advanced CD operation (Continued) Press the SCAN button to do playback 10 second in each track. (See Fig. 15) Audio CD: Press the SCAN button to enable disc scan function in disc playing, press again to disable scan function. MP3 disc: Press the SCAN button to enable disc scan function in disc playing, press again to do folder scan and press again to disable scan...
-
Page 16: Jog Menu Operation
Jog Menu Operation JOG menu operation: You can change some features of this unit by pressing JOG button. Press the JOG button on the front panel or on the remote control to select the options in JOG menu. (see Fig.17) Press the JOG button repeatedly to select additional options. -
Page 17: Setting The Alarm
Setting the alarm Setting the alarm There are two independent alarms in this unit. (Alarm1 and Alarm 2) When you want to use the alarm function, you should set the content of the alarm. 1) Press and hold the alarm button on the front panel or the remote control, the unit will enter to alarm setting session. -
Page 18: Enable The Alarm
Enable the alarm Enable the alarm Y ou can enable the alarm in anytime. Press the ALARM button (alarm 1 or alarm 2) repeatedly to choose the desired alarm mode ---- music alarm, tone alarm, alarm off. The alarm status indicator will display on the front panel. -
Page 19: Rds And Text Setting
RDS and Text Setting RDS, standing for the Radio data service, adding a basic data and text service to FM radio. Along with the audio, small amounts of text and data are transmitted with the radio signal, and can be picked up and processed by radios have an RDS decode built-in. -
Page 20: Usb (Sd/Mmc) Operation
USB (SD/MMC) Operation USB (SD /MMC) MODE This unit can play mp3 files stored on USB device (like Pen Drive) and SD/MMC card. You can copy mp3 files to USB device or SD/MMC card from PC then playback mp3 file on this unit. -
Page 21: Trouble Shooting
TROUBLE SHOOTING Q&A Before requesting service for this unit, please check below table for a possible cause of the problem. You can simple check or adjust on your part. It may eliminate the problem and restore proper operation. Trouble Power cord is not properly No audio hooked up. -
Page 22: Specification
Audio Output Power supply Dimensions ( W/H/D ) Weight Power Consumption MSU-2020 16 x 2 (Matrix) LCD AM: loop antenna ; FM: F type connector (75Ω) AM: 530~1710KHz ( 10 KHz step ) FM: 87.5~108MHz ( 100 KHz step ) - Page 23 NOTES...
- Page 24 1 YEAR PARTS/90 DAYS LABOR LASONIC will repair or replace (at our option) at no charge any part(s) found to be defective during the warranty period. This warranty period starts on the date of purchase by the original consumer.
