Quick Set Up Manual – WS-2310TWC Weather Station
Using cable connection or 433MHz for wireless transmission of weather data, this unique weather station can be powered
using batteries or AC power (or both at the same time) for all your weather needs in the home or office.

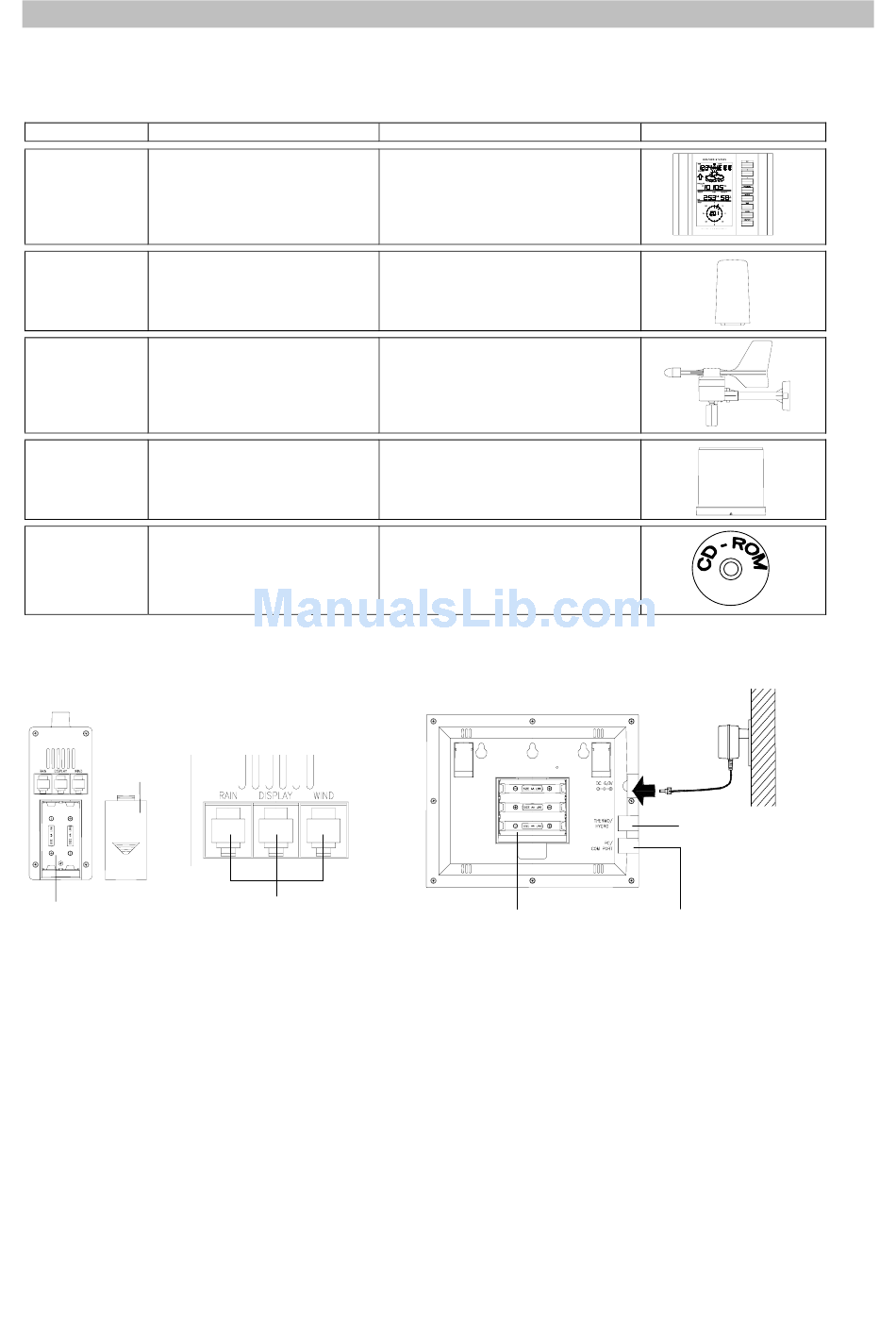

Carefully open and check that the following contents are complete:
Item: Consisting of:
Base Station 1) Main unit
Thermo-Hygro 1) Main unit
Sensor 2) Rain protection cover
Wind Sensor 1) Main unit with wind vane
2) 32ft cable (already attached the
3) Mast holder
Rain Sensor 1) Base and funnel
2) 32ft cable (already attached
'Heavy CD-ROM
Weather" PC (English and German version only)
software
Setting Up:
Important: Operating power is supplied to both the wind and rain sensors by the thermo-hygro sensor
Thermo-Hygro Sensor
Battery Cover
Battery Compartment
Setting up using batteries:
1) Sensors: Pull and remove the protective rain cover to reveal three socket ports and the battery cover. Insert the cables
of the wind and rain sensors in the correctly marked sockets. Slide open the battery compartment and checking the
correct polarity insert 2 x AA 1.5V batteries and replace the cover and rain cover
2) Base Station: Now open the battery cover at the back of the unit and checking the correct polarity insert 3 x AA 1.5V
batteries and replace the battery cover
Setting up using the AC/DC power adaptor:
1) Sensors: Set up the sensors as described above in Setting up using batteries.
2) Base Station: Using the AC power adaptor (included in this set) plug it into mains supply and connect it to the 6.0V DC
adaptor socket located at the side of the base station.
Performing a function test:
After powering up the units, the base station has to synchronize to the sensors before the weather data can be received.
The synchronization mode lasts for 15 minutes. Pressing the MIN/MAX key at any time will send the base station into the
WWVB radio controlled time reception mode. Under normal conditions the radio controlled time is usually received within 3-
5 minutes before returning to the normal operation. During the synchronization mode, perform the following function test to
check operation:
main unit)
the main unit)
Sensor sockets
Fittings:
1) AD/DC 120V power Adaptor -
optional use (included)
1) 32ft cable - optional connection to
the base station (included)
2) Wall mounting screws
3) Plastic anchors for screws
1) 2 x U-bolts for mast holder
2) 4 x Washers
3) 4 x Nuts
4) 1 x screw (to secure main unit to the
mast holder)
1) 6.5 ft computer cable for PC
function only - optional use
(included)
Base Station
Battery compartment
Illustration:
DC 6.0V
socket
Socket for sensor
PC COM Port
