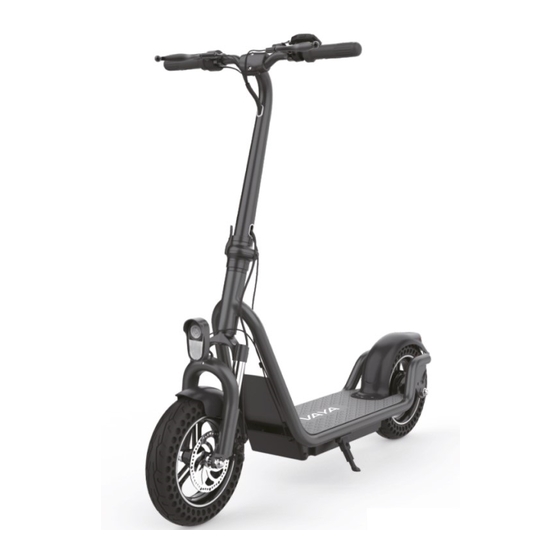

- Page 1 TWO WHEEL FOLDING ELECTRIC SCOOTER MODEL: F2...
-
Page 2: About The Manual
About the Manual 1.This appliance can be used by children aged from 8 years and above and persons with reduced physical, T h i s m a n ua l a p p l ie s t o t w o w h e e l e le c t r i c sc o o t e r . Pl e a s e r ea d t h i s ma n u a l sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or c a r e f u l l y t o e n s ur e t h a t ；... - Page 3 Routine maintenance About the manual Contents Parameter table Two wheel scooter installation guide wheel - 02 - - 03 -...
- Page 4 Chapter 1 Chapter 2 Products and components Function Icon and description Throttle Brake handle components (front disc brake) Display screen User manual x1 Brake handle(rear drum brake) Bell Manual Screw(M6) Rear light Folding mechanism Rear drum brake Motor Hexagonal Wrench(M5) Front linght Battery chamber Suspension front fork...
-
Page 5: Control Panel
Control panel Chapter 3 Power switch Two Wheel Scooter Installation Guide Speed gear Riding speed Battery status Control instructions Light switch Use control panel to control scooter, the specific features are as follows. 1. 1 Long press the power switch button for 3 seconds to turn on the scooter. The control panel shows the power, riding speed and battery status. - Page 6 3.Hold the scooter upright,to ensure that the lock will not affected,please keep the folding-spanner(The red part of the image) 1.Fasten the scooter standpipe and fold out the kickstand at the bottom. Pull the folding-spanner to the top,then te scooter is completely locked. 3.Use the hex wrench in the mounting box to lock the 4.After the installation is completed, switch on screws on both sides...
-
Page 7: Charging Instructions
Chapter 4 Chapter 5 Charging instructions How To Ride The Two Wheel e-scooter Important Reminder：Charge your electric scooter before storage and charge at least once every three month to prevent battery from over-discharge. (Scooter may not able to turn on) *There are risks of falling and injury when study riding, so please wear a helmet and protective gear as shown in the picture. - Page 8 Chapter 6 Riding security 3.When the electric scooter is sliding, the other foot steps 4.Release the throttle can slow down the speed, and on the pedal. After the feet step on the pedal, slightly press automatic energy recovery system can help to slow the throttle (speed above 3km/h will start the throttle).
- Page 9 Chapter 7 Folding and Transportation Do not press on the accelerator pin Avoid barriers while driving. while walking with the e-scooter. Pull thesafety-lock(The red part of the image) up meanwhile holding the standpipe, then open up the folding-spanner(The blue part of the image), aim it at the bell and the fender hook, then buckle the bell with the back-fender.
- Page 10 Warming Reminder Do not try to do any dangerous movement. Forbidden to step on the back fender. Forbidden to press the brakes. Forbidden to drive on the driveways or Forbidden to rotate the handle strongly in crowded residential areas. while driving with high speed. Forbidden to drive without your hands Forbidden to go up/down stairs or to jump holding handlebars.
-
Page 11: Routine Maintenance
Chapter 8 Routine Maintenance Safety instructions • An electric scooter is a sporting entertainment tool that is not a vehicle, but once you drive it into a public area, it will also have a vehicle property, so there are also possible safety risks for all modes of transport. Strictly follow the instructions in this Electric scooter cleaning and storage provincial regulations and traffic regulations. -
Page 12: Parameter Table
Chapter 9 Parameter Table Note: Parameters Specifications safety short-circuits. LxWxH(MM) 1220mm*610*1130mm Disc brakes debug 1220mm*610mm*630mm Weight Total Scooter(KGS) 22.5 Knob with a M5 hex wrench(As shown in below picture), turn the Rotary knob to the right by a little and tighten the Rider Weight Limit(KGS) Rider Age 16-50... - Page 13 Contact us Specifications Parameters In the process of using the two-wheel scooter，if you have any questions about riding，maintenance，security，please contact us. We are very pleased to provide service to you. Battery Pack Rated Capacity 16Ah Rated Capacity 576Wh Temperature, short circuit, undervoltage, Protection overcurrent, overcharge, overdischarge Rated Power(W)
