Open (direct) UVC disinfection system – GRIZZLY UVC SPECTRA ANTIMAGNETIC
PARAMETERS:
UVC Device power: 1160W
Supply voltage: 230V / 50Hz
Special device without ferromagnetic elements.
Construction material: Aluminum with the possibility of fitting plastic wheels with a stainless steel pin.
Equipment electronics without metal covers and parts, stored in ALU covers.
Fluorescent lamp bases - plastic
IP: 20
Control type: Intelligent remote control with timing options
Safety: 4x PIR sensor for 360 ° motion sensing (in case of motion detection deactivates the tubes for 2 minutes)
Power of germicidal radiation: 1160W
Wavelength: 253.7nM
Beam angle: 360 °
UVC lamps: 8pcs - 145W, manufacturer PHILIPS
Lamp life: max. 18,000 hours
Weight: 24 kg
Device height 191cm, base diameter 56cm
Optical signaling of ongoing disinfection by open radiation
Built-in digital meter for operating hours of UVC tubes
Suitable for spaces up to 100 square meters
Advertisement
Summary of Contents for Grizzly 1160W UVC

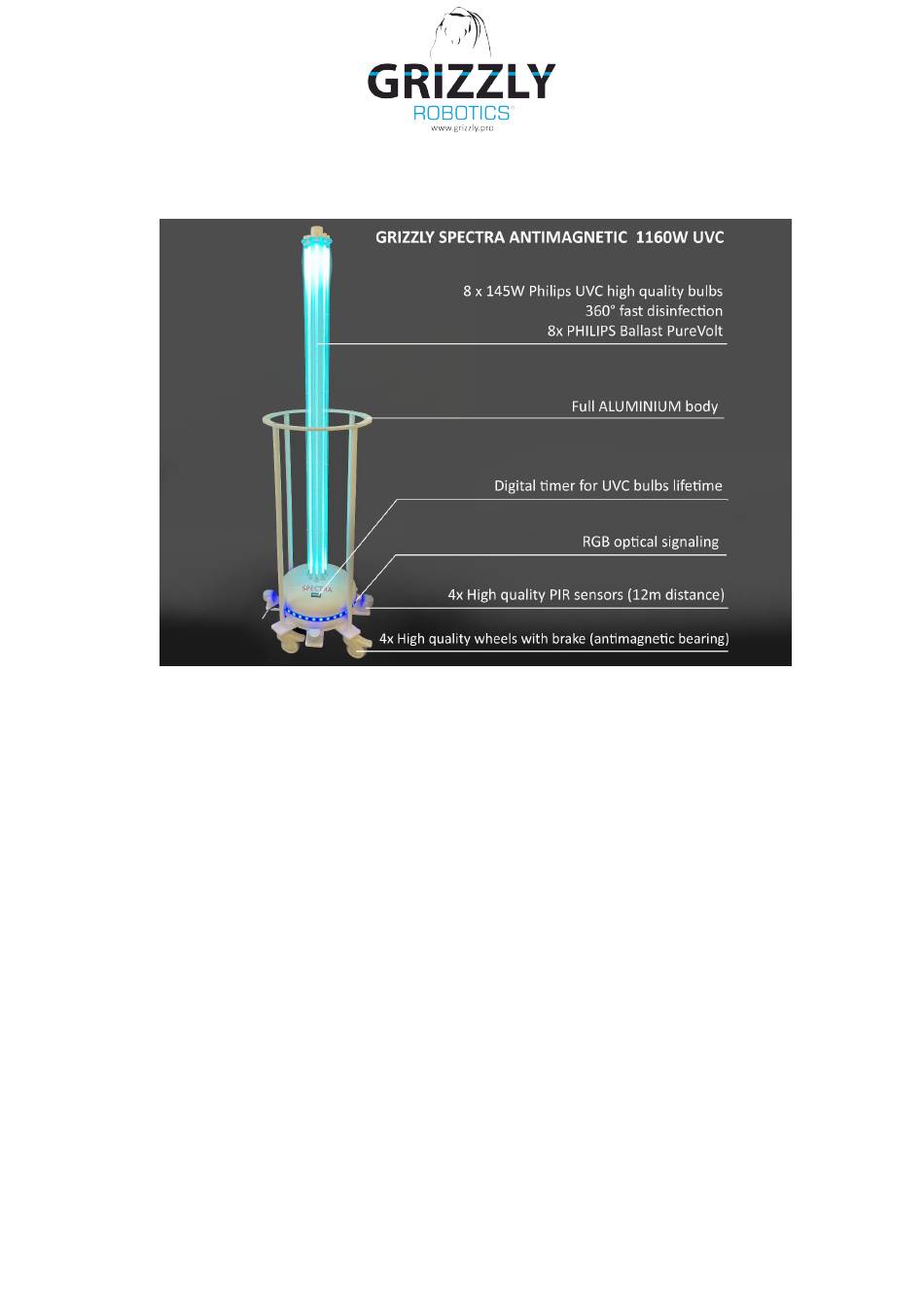

- Page 1 Open (direct) UVC disinfection system – GRIZZLY UVC SPECTRA ANTIMAGNETIC PARAMETERS: UVC Device power: 1160W Supply voltage: 230V / 50Hz Special device without ferromagnetic elements. Construction material: Aluminum with the possibility of fitting plastic wheels with a stainless steel pin.
- Page 2 Germicidal radiation is an artificial radiation from the UV part of the spectrum. In terms of air sterilization, radiation in the range of 280 to 200 nm is most effective. GRIZZLY devices produce ultraviolet radiation with a wavelength of 253.7 nm.
- Page 3 USER MANUAL: The GRIZZLY SPECTRA ANTIMAGNETIC device is completely manufactured without the use of ferromagnetic metals. The fine electronics of electronic ballasts may contain a small amount of ferromagnetic metal and therefore it is necessary to ensure a minimum distance of 3m from the magnetic resonance device.
-
Page 4: General Safety Instructions
Unplug the emmiter when not in use. GRIZZLY s.r.o. is not responsible for damage to persons or property caused by this product nor for damages that may arise when the user handles this product in inappropriate manner. The user is responsible for the proper installation, operation and storage of this product. - Page 5 • unload the device from the means of transport with the utmost care prescribed by the handling mechanism. All rights reserved. No part of this manual may be reproduced without the written permission of GRIZZLY s.r.o. reproduced or processed using electronic systems, reproduced or distributed in any form.
