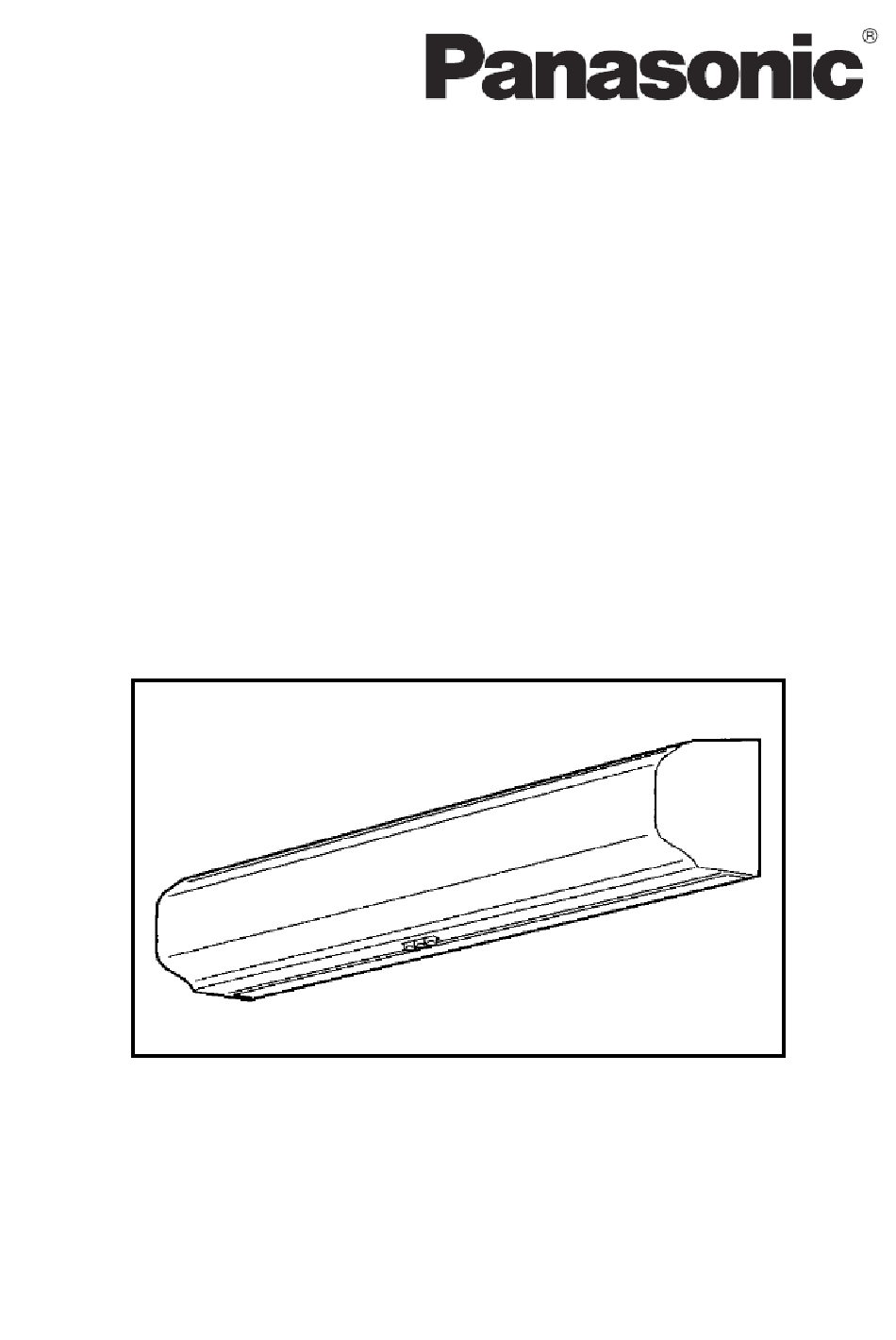

- Page 1 Service Manual AIR CURTAINS FY-08/10/12/14ESN, FY-08/10/12ESP FY-08/10/12/14ELN, FY-08/10/12ELP Panasonic Ecology Systems Guangdong Co., Ltd.
-
Page 2: Specifications
FY-08/10/12/14ESN, FY-08/10/12ESP FY-08/10/12/14ELN, FY-08/10/12ELP SPECIFICATIONS Item Length Wheel Dia. Weight inch inch Model No. FY-08ESN/P 4 1/2 11.5 25.3 FY-08ELN/P 1200 4 1/2 13.5 29.7 FY-10ESN/P 4 1/2 11.5 25.3 FY-10ELN/P 1200 4 1/2 13.5 29.7 FY-12ESN/P 4 1/2 13.0 28.6... - Page 3 - 3 -...
- Page 4 - 4 -...
- Page 5 IV. Exploded View and Part List Location of Parts (FY-08/10/12/14ESN, FY-08/10/12ESP) - 5 -...
- Page 6 Parts List (FY-08ESN,FY-08ESP, FY-10ESN,FY-10ESP) FY-08ESN,FY-08ESP FY-10ESN,FY-10ESP Part Name Part No. Q'ty/Set Part No. Q'ty/Set Front panel FEC037H021E FEC037H021E Intake inlet FEC101H014E FEC101H014E Air outlet FEC076H001E FEC076H001E Mounting plate FEC050H018E FEC050H018E FEC077H001E FEC077H001E Back panel ass'y Inside panel FEC078H001E FEC078H001E Single shaft motor ass'y (UA:110-127V)
- Page 7 Parts List (FY-14ESN) FY-14ESN Part Name Part No. Q'ty/Set Front panel FEC037H021E Intake inlet FEC101H014E Air outlet FEC076H001E Mounting plate FEC050H018E FEC077H001E Back panel ass'y Inside panel FEC078H001E Single shaft motor ass'y (UA:110-127V) 14ESN0611* Single shaft motor ass'y (NA:220-240V) 14ESN0612* Double shaft motor ass'y (UA:110-127V) 14ESN0601* Double shaft motor ass'y (NA:220-240V)
- Page 8 Location of Parts (FY-08/10/12/14ELN, FY-08/10/12ELP) - 8 -...
- Page 9 Parts List (FY-08ELN,FY-08ELP, FY-10ELN,FY-10ELP) FY-08ELN,FY-08ELP FY-10ELN,FY-10ELP Part Name Part No. Q'ty/Set Part No. Q'ty/Set Front panel FEC037H022E FEC037H022E Intake inlet FEC101H015E FEC101H015E Air outlet FEC076H002E FEC076H002E Mounting plate FEC050H018E FEC050H018E Back panel ass'y FEC077H002E FEC077H002E Inside panel FEC078H002E FEC078H002E Double shaft motor ass'y (UA:110-127V) FEC001H077E FEC001H081E Double shaft motor ass'y (NA:220-240V)
- Page 10 Parts List (FY-14ELN) FY-14ELN Part Name Part No. Q'ty/Set Front panel FEC037H022E Intake inlet FEC101H015E Air outlet FEC076H002E Mounting plate FEC050H018E FEC077H002E Back panel ass'y Inside panel FEC078H002E Double shaft motor ass'y (UA:110-127V) 14ESN0601* Double shaft motor ass'y (NA:220-240V) 14ESN0602* 14ESN0652* Capacitor 15μF 250VAC (110-127V/double shaft) 14ESN0662*...
