CE Kit
for Multi-Pro
Model No. 104–8950

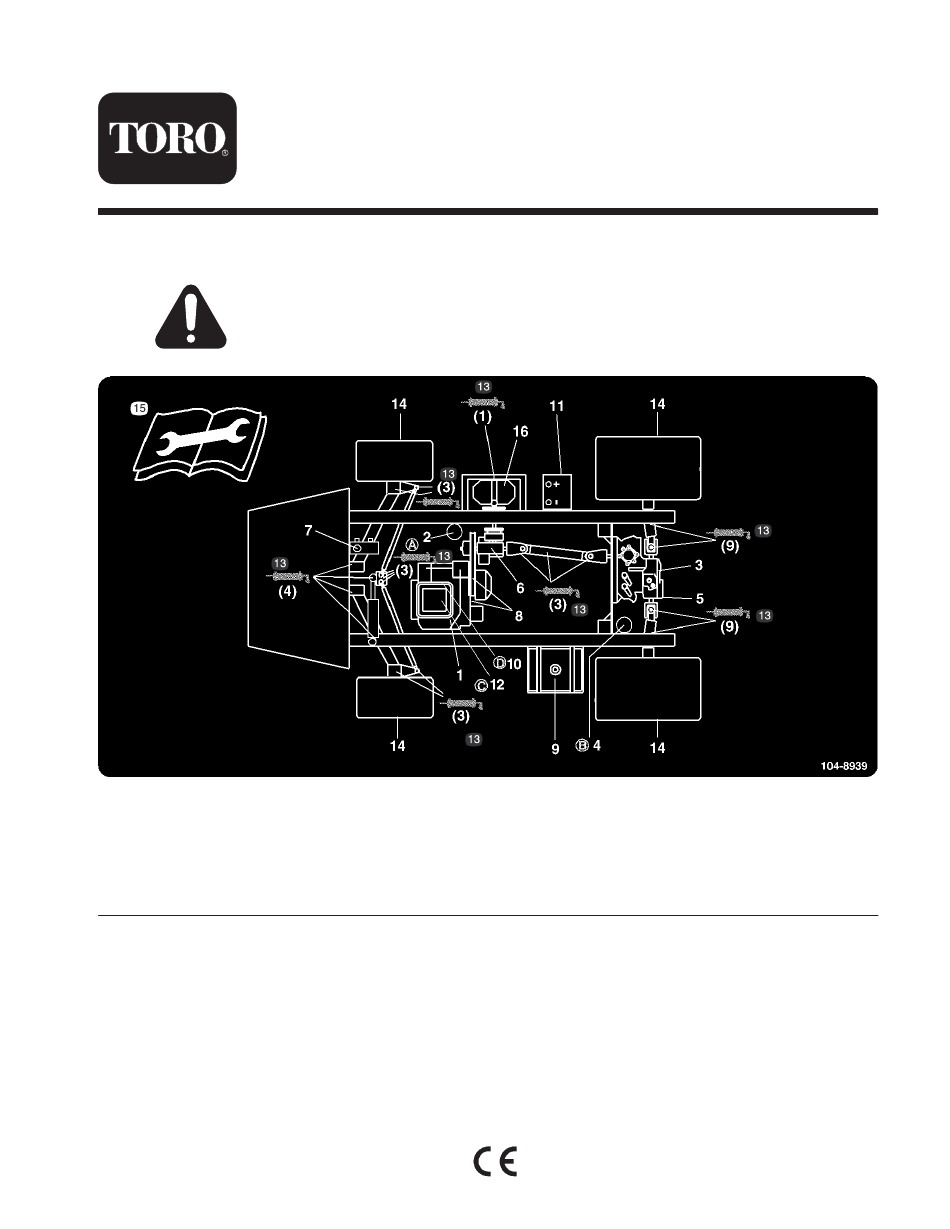

Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or lost.
1. Engine oil level (dipstick)
2. Engine oil filter
3. Transaxle/hydraulic fluid
level (dipstick)
4. Transaxle hydraulic filter
W 2003 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
)
1200 and 1250 Sprayers
104-8939
5. Hydraulic strainer
6. Gear box fluid level
7. Brake fluid
8. Belts, steering and drive
9. Fuel, unleaded only
Original Instructions (EN)
Installation Instructions
10. Fuel filter
11. Battery
12. Air cleaner
13. Grease
14. Tire pressure
Form No. 3329-906
15. Read the instructions before
servicing or performing
maintenance.
16. Pump
Contact us at www.Toro.com
All Rights Reserved
Printed in the USA
Advertisement
Table of Contents
Related Manuals for Toro 104-8950
Summary of Contents for Toro 104-8950
- Page 1 8. Belts, steering and drive 13. Grease 4. Transaxle hydraulic filter 9. Fuel, unleaded only 14. Tire pressure W 2003 by The Toro Company Contact us at www.Toro.com 8111 Lyndale Avenue South All Rights Reserved Original Instructions (EN) Bloomington, MN 55420-1196...
-
Page 2: Table Of Contents
Loose Parts Note: Use the chart below to verify that all parts have been shipped. Description Qty. Flange bolt (5/16 x 3/4 inch) Installing the battery cover fasteners Flange nut (5/16 inch) Shroud bracket Shroud-pump drive Installing the pump shroud Flange bolt (1/4 x 1/2 inch) Flange nut (1/4 inch) Pressure gauge... -
Page 3: Flange Bolt (5/16 X 3/4 Inch)
Installing the Battery Cover Installing the Pump Shroud Fasteners Install the pump shroud to cover the pump drive. Replace the existing hand knobs with the provided 1. Loosen the two pump bolts in the pump face and install fasteners. the shroud support as shown in figure 2. 1. -
Page 4: Pressure Gauge
Installing the Pressure Gauge Installing the Horn Replace the existing pressure gauge with the new gauge 1. Drill a hole, 11/32 inch in diameter, in the vehicle frame capable of displaying pressure in kPa. under the floorboard. The hole should be 4 cm (1-1/2 inches) down from the frame top and 5 cm 1. - Page 5 4. Open the horn button packing that includes the horn Installing the Hose Cover switch and button cap, 2 screws, and a retaining ring. 1. Locate the hydraulic hoses under the dash panel 5. Remove the horn button cap and thread the retaining (Fig.
- Page 6 Applying the Decal The decal included in the this kit replaces the existing decal, part number 100–8620 (Fig. 8). 100–8620 Figure 8 1. Clean the existing decal (Fig. 8), located on the left front of the seat box and surrounding area. Make the it are is free of dirt, grease, or other foreign material.
