Summary of Contents for Neat Bar
- Page 1 Neat Bar & Neat Pad User Manual...

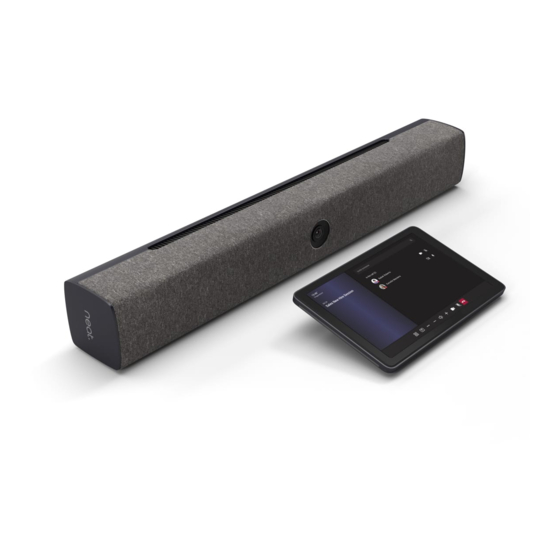

- Page 2 Neat Bar Collaboration System Neat Bar includes Camera, Speakers, Neat Bar is a compact and highly Microphones and environmental capable meeting device. sensors all in one compact design. It’s perfect for bringing superior Neat Bar comes with a dedicated -quality audio and video to your Neat Pad Controller and optional huddle, focus and meeting spaces.

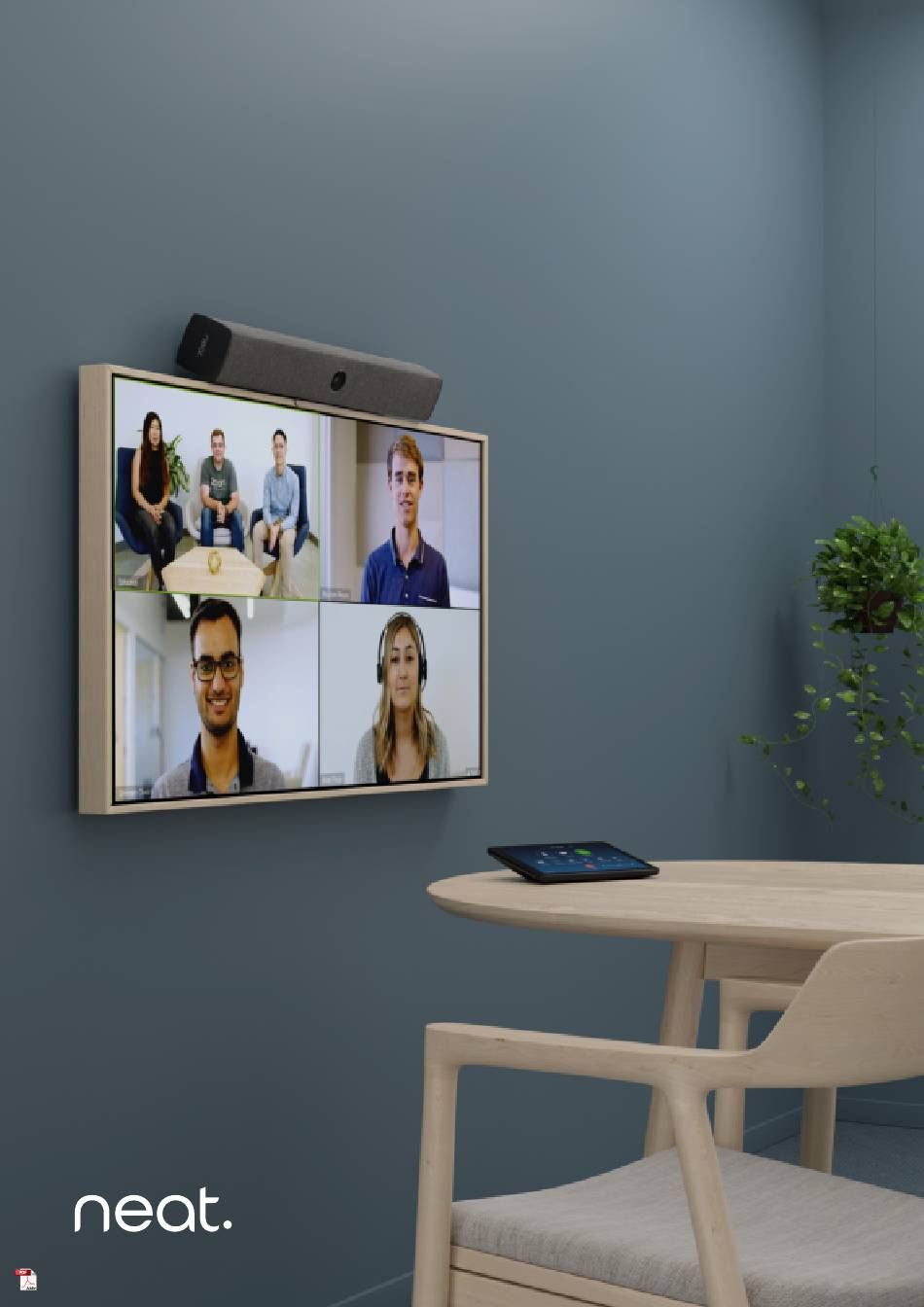

- Page 3 Simple setup All you need is in the box, including mounts, cables and clear instructions. So it’s easy for anyone to install and set-up, above or below one or two screens. Wall mount Screen mount Table stand...
- Page 4 In the box Neat Bar: All-in-one audio and 4 × M screw (0.94 in / 24 mm) for VESA mount 4 × M screw (0.94 in / 24 mm) for VESA mount video device 2 ×...
- Page 5 PoE power adapter for the side mount 1 × 2.5 mm hex key for the adapters Mount adapter, side mount and wall mount 1 × 2 mm hex key to secure Neat Pad to the wall mount Mount adapter Neat Pad...
- Page 6 (1) and carefully slide the unit towards you (2). Do not leave Warning: Neat Bar in a max tilted position with the red indicator showing as it is not secured by the lock spring.
-
Page 7: Size And Weight
Size & weight Neat Bar Width: 21.9 in (556 mm) Depth: 3 in (76 mm) Height: 3 in (76 mm) Weight: 3.75 pounds (1.7 kg) 21.9 in (556 mm) 3 in (76 mm) 3 in (76 mm) Neat Pad Width: 7.8 in (198 mm) Depth: 5 in (127 mm) Height: 1.7 in (42 mm) - Page 8 Setup & connectivity Setup Requirements for a complete setup Use the provided cables to set up Neat Bar. Display Connect the cables according to the illustration. Cables marked are included. Cables marked Internet connection Video service are optional and not required for basic use of the system.
