This manual is exclusively prepared for
R410A indoor unit. Please read this manual
in conjunction with corresponding manual for
outdoor unit.
P01974Q
ORIGINAL INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Hitachi RPIM-0.8HNAUB1Q
Summary of Contents for Hitachi RPIM-0.8HNAUB1Q
- Page 1 RPIM-0.8HNAUB1Q RPIM-1.0HNAUB1Q RPIM-1.3HNAUB1Q RPIM-1.5HNAUB1Q RPIM-1.8HNAUB1Q RPIM-2.0HNAUB1Q Ceiling Ducted Type RPIM-2.3HNAUB1Q RPIM-2.5HNAUB1Q RPIH-3.0HNAUB1Q RPIH-3.3HNAUB1Q RPIH-4.0HNAUB1Q RPIH-5.0HNAUB1Q RPIH-6.0HNAUB1Q This manual is exclusively prepared for R410A indoor unit. Please read this manual in conjunction with corresponding manual for outdoor unit. P01974Q ORIGINAL INSTRUCTIONS...
-
Page 3: Important Notice
This manual should be considered as a permanent part of the air conditioning equipment. Please keep it properly. ● Hitachi pursues a policy of continuous improvement in design and performance of products. The right is therefore reserved ● to change specifications without notice. -
Page 4: Checking Product Received
WARNING Do not use any sprays such as insecticide, lacquer, hair spray or other flammable gases within approximately one (1) ● meter from the system. ● If the earth leakage breaker (ELB) is frequently activated, please stop the system and contact your local dealer or customer services. - Page 5 Unit Description Part Name 3.1 Indoor Unit 3.2 Remote Control Before Operation Operation Mode Auto Control Cleaning of Filter 7.1 Removing Filter 7.2 Cleaning Filter 7.3 Resetting Filter Indicator 8.1 If Trouble Still Remains 8.2 No Operation 8.3 Not Cooling or Heating Well 8.4 This is Not Abnormal...
- Page 6 Section 2 Installation & Maintenance Manual Wiring for Static Pressure Protection and Control Devices Field Operation...
-
Page 7: Unit Description

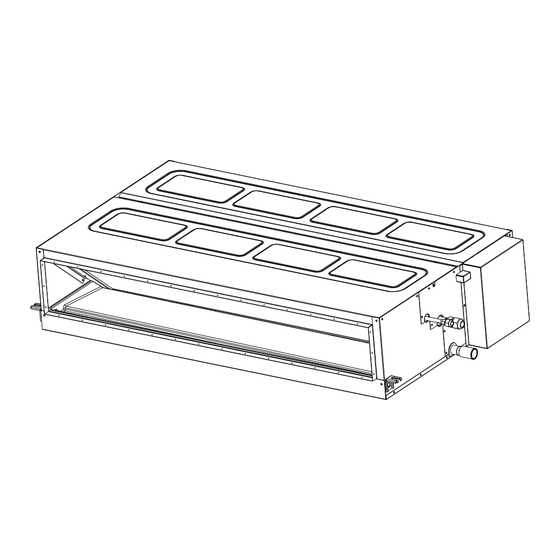

Unit Description This heat-pump type air conditioning unit can consist of one outdoor unit and several indoor units. Detailed Do not have the indoor unit or outdoor unit configurations are stated in the corresponding exposed to water. All these parts are designed installation &... - Page 8 Models: 0.8~2.5 Models: 3.0~6.0 Fig. 3.1 Ceiling Ducted Indoor Unit...
-
Page 9: Automatic Defrosting
4. Before Operation Freeze Protection during Refrigeration When the outlet air temperature of indoor unit is excessively low, refrigeration may be automatically switched to air supply mode, in which the unit runs for The units that have been left unused for a long period of a period of time to avoid frosting on indoor heat time shall be electrified for more than 12 hours before exchanger. -
Page 10: Cleaning Of Filter
7. Cleaning of Filter The operation of indoor unit is strictly prohibited without filter. Please turn off the main power supply before removing the filter (the previous operational function may occur). 7.1 Removing Filter 8.1 If Trouble Still Remains 7.2 Cleaning Filter If the trouble still remains even after checking the following, contact your contractor and inform Please clean the filter in the following steps. - Page 12 Check whether the design pressure of machine is 4.15 MPa. The following tools are necessary for the installation & construction. Tool Tool Spanner Handsaw Charging Cylinder Phillips Screwdriver Gauge Manifold Vacuum Pump Cutter for Wires Refrigerant Gas Hose Megohmmeter Gas Leak Detector Copper Pipe Bender Leveller Water Pump...
- Page 13 Install the indoor unit as per national standard. possible Please contact the dealer if the accessories are not delivered with machine.
- Page 14 Models: 0.8~2.5 Unit: mm Electric Box Service Access (≥450) Back Front Install suspension bolts as shown in Fig. 4.2. Top View Models: 3.0~6.0 Unit: mm For Concrete Slab For Steel Beam Electric Box Insert Service Access (≥450) 150 to 160mm (100 to150kg) 1.
- Page 15 4.3.2 Suspension Bolt and Pipe 4.3.3 Installation of Indoor Unit Connection Points Indoor unit is installed as shown in Fig. 4.4. Installation of Field-Supplied Parts (1) Indicate the location of suspension bolt, and the connection points of refrigerant pipe and drain Suspension Bolt 4-M10 or W3/8 pipe.
-
Page 16: Air Duct Connection
4.3.5 Air Duct Connection (2) Installation of Indoor Unit Air duct is connected to indoor unit via canvas hose Place the left bracket on the nut and washer of to effectively isolate noise and vibration. Indoor unit suspension bolt as shown in the figure below. is designed with flange with hole connectible to air Make sure the left bracket is properly placed duct. -
Page 17: Piping Connection
As shown in Fig. 5.4, two spanners shall be used for 5.2 Piping Connection tightening the nut. (1) Piping connection points are shown in Figs. 5.1 and 5.2. Models 0.8~2.5 Unit: mm Drain Pipe Refrigerant Gas Tube For Drain Pump Refrigerant Liquid Tube (mm) (N.m) -
Page 18: Drain Pipe
Where the relative humidity of air inlet or Excessive and inadequate refrigerant is a ambient air exceeds 80%, an auxiliary drain pan leading cause of system anomaly. Please shall be fabricated at installation site and placed inject the right amount of refrigerant. under the indoor unit, as shown in Fig. - Page 19 Check the capacity of power source. The system can't be started if the supply ● voltage is excessively low. Turn OFF the main power switch to the indoor unit and the outdoor unit and wait for at least 10 minutes before electrical wiring work or a periodical check is performed.
- Page 20 7.3 Static Pressure Selection Wiring Static Pressure (Pa) RPIM-0.8~2.5HNAUB1Q Plug Wording Static Pressure (Pa) RPIH-3.0~6.0HNAUB1Q Plug Wording *: Factory default The plug printed with number "1" before delivery of above-noted indoor unit is inserted into the socket. To change the static pressure, insert the plug printed with number "2".
-
Page 21: Field Operation
10. Field Operation 10.1 Field Minimum Wire Dize for Power Source Line Diameters of Field-Connected Wires and Power Cords Power Cord Signal Wire Power Supply Rated Current Models Specifications Specifications 0.93A RPIM-0.8~1.0HNAUB1Q 1.33A RPIM-1.3~1.5HNAUB1Q 1.59A RPIM-1.8~2.0HNAUB1Q 220V ~ 60Hz 1.94A RPIM-2.3~2.5HNAUB1Q RPIH-3.0~4.0HNAUB1Q 3.11A... - Page 22 The refrigeration system codes of all indoor units (A) Positions of DIP Switches are required to be set based on the position diagram below. All are set to OFF before delivery. H-LINK II. H-LINK II. Safety reset (DSW7) No setup is needed All are set to OFF before delivery.
