Summary of Contents for Keelin BTT01

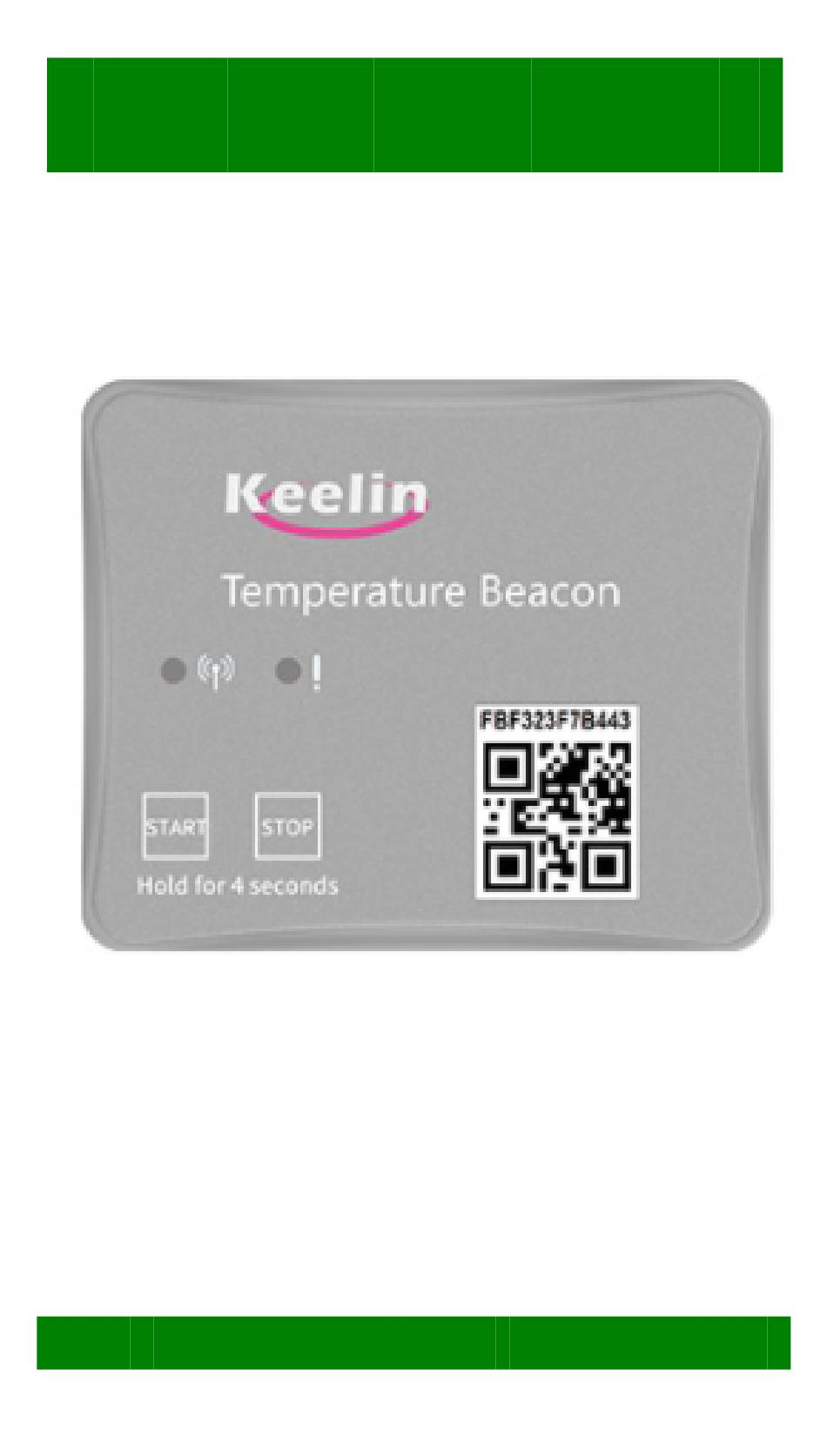

- Page 1 BLE Temp Data Logger BTT01 User Manual BLE/BEACON DATA PLATFORM...
-
Page 2: Table Of Contents
CATALOGUE Functions..............3 BLE Broadcast Content......... 4 Technical Parameters..........5 Factors affecting Battery Life........ 5 Turn on / off.............6 • How to turn on:........... 6 • How to shut down:..........6 • other:..............6 BLE APP Application..........7 • APP download............. 7 •... -
Page 3: Functions
Gateway, it also help to realize the accurate location in local area. • When BTT01 is used alone,it needs to match APP to obtain the historical data and upload to the cloud server. The location can be located by RSSI signal strength. -
Page 4: Ble Broadcast Content
• BTT01 store 180days data with storing intervals per 5 minutes, Data content includes date time and temperature. • Sync the time on APP for precise timing from the beginning. -
Page 5: Technical Parameters
Technical Parameters Communication method: BLE 5.0 Broadcast power: 8db Broadcast frequency 5s (customize) Transmission distance: open distance up to 500 meters Factors affecting Battery Life Working Temperature; BLE Connection Frequency; Times of Data transfer; LED indicator on frequency; Transmit Power; Broadcast intervals, battery capacity Note:In order to save power, please disconnect BLE asap after obtaining... -
Page 6: Turn On / Off
3 times quickly, indicating that the device is off. • other: When the device is turned on, ● press the "start" button and the blue light will light up, indicating that the device is working normally. When BTT01 is turned on, the ●... -
Page 7: Ble App Application
connection is established with the APP, Blue light will light up once, indicating that the connection is successful; when the device is disconnected from the APP, the red light will light up once. When the device is in an alarm ●... - Page 8 • The broadcast information which includes temperature, voltage,MAC address, signal strength of BTT01 device can be previewed and searched through the Beacon Cloud APP. • Search the target device by signal strength or device name on APP. Text: Input part of MAC address to...
-
Page 9: Device List
2. RSSI：Signal strength of device. The device is closer to the mobile phone, absolute value is smaller. According to this feature, devices in different ranges is screened. Each device address is unique. • Device List Broadcasting info of each device,... -
Page 10: Ble Connection
1.Device name：B1 2. MAC：Device address,unique. 3. Signal strength（RSSI）：The closer between device and mobile phone,the signal strength is to full. 4. Temp： The battery voltage for current broadcast time. When battery voltage is lower than 2.5V, the voltage font will turn red. •... -
Page 11: Historical Data Query
Historical data query Inquire the cached temperature data. After synchronizing data,select the time period to export the cached data,synchronize the data to cloud server. Hong long it takes to get the data depends on the data amount and the distance between the device and the mobile phone. -
Page 12: Device Information
current time. Device information Historical data curve: View the detailed data of a point by zooming with two fingers, sliding left and right/up and down. The data synchronized to the cloud can be viewed on the platform: http://beacon.sky200.net Parameters configuration Click the Setting icon to modify. -
Page 13: Basic Parameter Setting
Basic parameter setting Set the collection interval, storage interval, broadcasting interval. It save 180 days data with storage interval per 5mins. Clear data： Clear all cached data, restart counting. • OTA Upgrade： Synchronize to the latest software version through OTA (Over the air) upgrade when software is updated,... -
Page 14: Ota Upgrade-Ios System
• OTA Upgrade—IOS System ● Choose the upgrade package，Open through APP. ● Connect the device that needs to be upgraded in the APP,go to Setting- Over the air Upgrade. ● Choose “Select File”. ● user File, Choose the loaded target upgrade package. - Page 15 /Device address/ Time of export • Exported data format: date time + temperature...
-
Page 16: Temperature Unit
• Temperature Unit Celsius/Fahrenheit: After changing the temperature unit, it need to re-scan, connect the device, and export the data. -
Page 17: Warranty Rules
Warranty rules 1 Special statement 1）Technology change without notice. 2) If the color and appearance are inconsistent with those for the actual product, the latter will prevail. 3）Warranty card is only valid for devices with the following IMEI. 4）Please take care of the warranty card and show it with the original purchase receipts when enjoying the warranty service. - Page 18 2）Unauthorized removal or repair damaged. 3）Damage caused by improper installation, use, maintenance, custody. 4）IMEI label is torn or Obscure. 5）Warranty certificate and product models do not match or warranty certificate be altered. 6）Damage caused by force majeure...
