  • Page 2 Version: 1.0_UK Region: United Kingdom & Ireland Firmware Version: V5.1 For updates and support, visit www.draytek.co.uk Date: March 17, 2022 Note: Product specification is subject to continuous evolution which may not always be reflected in current documentation. For the formal specification...
  • Page 3 (2) years from the date of purchase from a DrayTek authorized dealer in the UK/Ireland. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of...
  • Page 4 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu 300, Taiwan , R.O.C., declare under our sole responsibility that the product ⚫ Product name: 35b Modem ⚫ Model number: Vigor167 ⚫...
  • Page 5 78.0% 81.3% 83.3% 83.7% 74.5% 80.5% 86.4% 85.4% No-load power 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W consumption For more updates & information, please visit www.draytek.co.uk. The external power supply used for each product will be model dependent.

  • Page 6: Table Of Contents

    1. Package Contents....................1 2. Panel Explanation ....................2 3. Hardware Installation ................... 3 3.1 Network Connection .......................3 3.2 Wall-Mounted Installation .......................4 4. Software Configuration ..................5 5. Getting Further Help ..................... 8 5.1 Additional Feature Setup ......................8 5.2 Keep up to date with our mailing list ..................8 5.3 Firmware Updates ........................9 5.4 Security &...

  • Page 7: Package Contents

    Take a look at the package contents. If there is anything missing or damaged, please contact DrayTek or your DrayTek reseller immediately. Modem Quick Start Guide RJ-11 to RJ-45 Cable RJ-11 to RJ-11 Cable The type of the power adapter depends on the country that the modem will be installed.

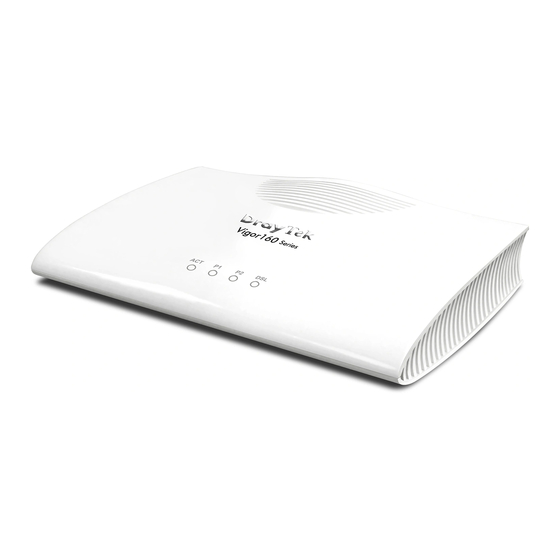

  • Page 8: Panel Explanation

    Status Explanation The system is not ready or is failed. Blinking The system is ready and can work normally. P1/P2 A normal connection is through its corresponding port. LAN is disconnected. Blinking Data is transmitting (sending/receiving). xDSL connection synchronized. Blinking xDSL connection is synchronizing.

  • Page 9: Hardware Installation

    This section will guide you through the installation of the modem hardware. Once it is connected, proceed to the next section for final setup. Before starting to configure the modem, you must connect your devices correctly. Connect the DSL interface to the MODEM port of your building’s splitter or microfilter, with a DSL line cable.

  • Page 10: Wall-Mounted Installation

    Vigor167 has keyhole type mounting slots on the underside. Drill the holes on the wall according to the recommended instruction. Fit screws into the wall using the appropriate type of wall plug. Note The recommended drill diameter shall be 6.5mm (1/4”).

  • Page 11: Software Configuration

    For a full demonstration of how to configure an IP address manually, see this guide: https://www.draytek.co.uk/support/guides/kb-windows-fixedip Open a web browser on your PC and type http://192.168.2.1. A pop-up window will open to ask for username and password. Please type “admin/admin” as the Username/Password and click Login.
  • Page 12 Now, the Main Screen will pop up. This is the [Dashboard], which displays the current status of the modem, with DSL details and port status information. Open [Configuration] > [WAN]. Then click the Edit option:...
  • Page 13 This will expand the WAN1 settings panel. On this screen, configure the following settings: ADSL Setting • VPI: 0 • VCI: 38 VDSL2 Setting • Service VLAN: Enabled • Tag: 101 • Priority: 0 Click Apply to apply the setting changes. The Vigor 167 modem is now ready to pass-through your Internet connection, to a connected PC, Router or Firewall.

  • Page 14: Getting Further Help

    Internet connectivity pass-through and more advanced features: https://www.draytek.co.uk/support/product-knowledgebase Now that you have your DrayTek product, you should keep up to date with product updates (firmware), security advisories and other product news, advice or special offers. Users in the UK/Ireland can subscribe to our mailing list. For...

  • Page 15: Firmware Updates

    - simple mistakes which could then be exploited by others. We've produced our free guide "Router Best Practice" which contains essential information for anyone installing, configuring or using a broadband router or wireless LAN. Available to download: https://www.draytek.co.uk/best...
