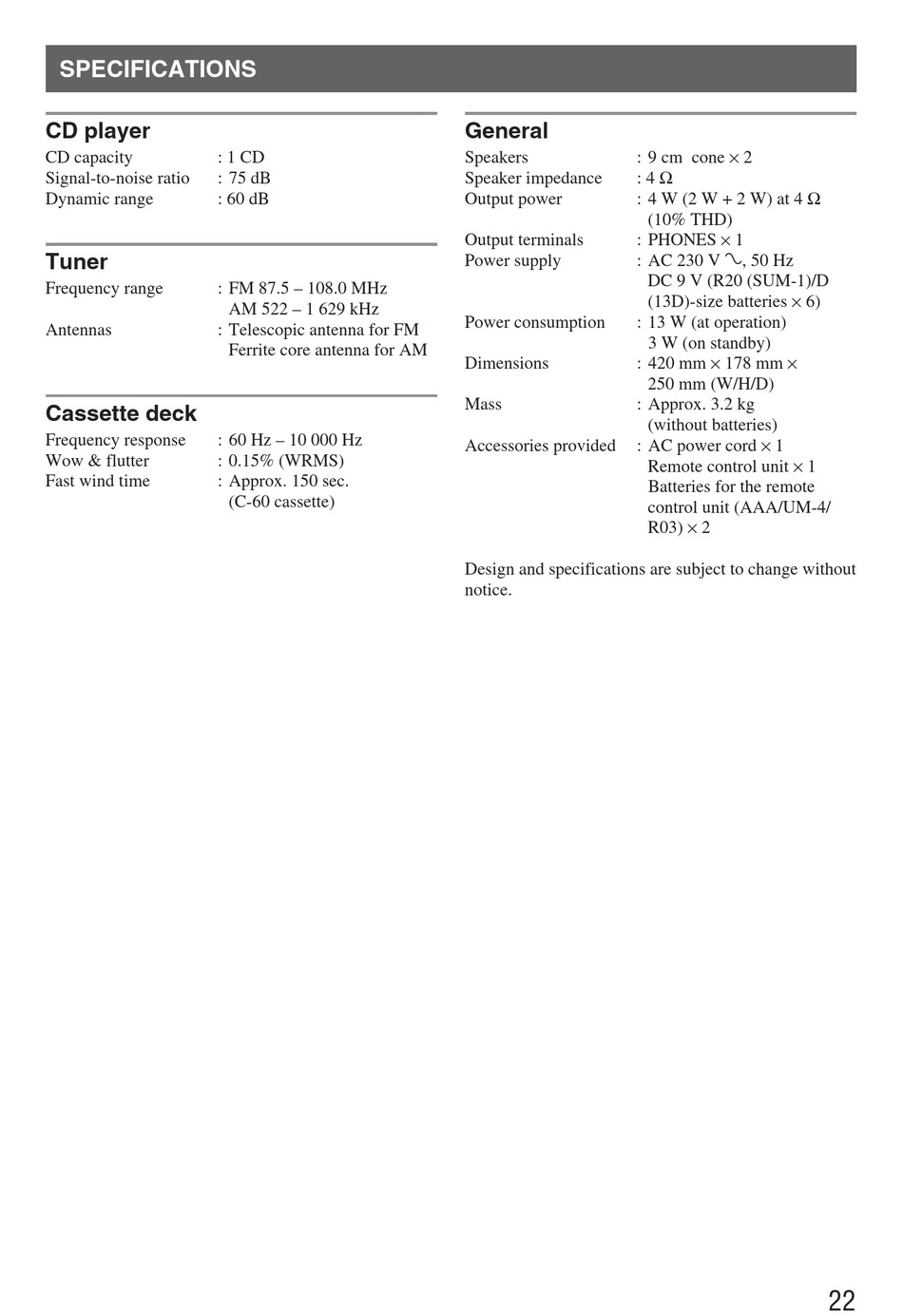

SPECIFICATIONS

CD player
CD capacity
Signal-to-noise ratio
Dynamic range
Tuner
Frequency range
Antennas
Cassette deck
Frequency response
Wow & flutter
Fast wind time
: 1 CD
: 75 dB
: 60 dB
: FM 87.5 – 108.0 MHz
AM 522 – 1 629 kHz
: Telescopic antenna for FM
Ferrite core antenna for AM
: 60 Hz – 10 000 Hz
: 0.15% (WRMS)
: Approx. 150 sec.
(C-60 cassette)
General
Speakers
Speaker impedance
Output power
Output terminals
Power supply
Power consumption
Dimensions
Mass
Accessories provided
Design and specifications are subject to change without
notice.
: 9 cm cone × 2
: 4 Ω
: 4 W (2 W + 2 W) at 4 Ω
(10% THD)
: PHONES × 1
: AC 230 V Ó, 50 Hz
DC 9 V (R20 (SUM-1)/D
(13D)-size batteries × 6)
: 13 W (at operation)
3 W (on standby)
: 420 mm × 178 mm ×
250 mm (W/H/D)
: Approx. 3.2 kg
(without batteries)
: AC power cord × 1
Remote control unit × 1
Batteries for the remote
control unit (AAA/UM-4/
R03) × 2
22
