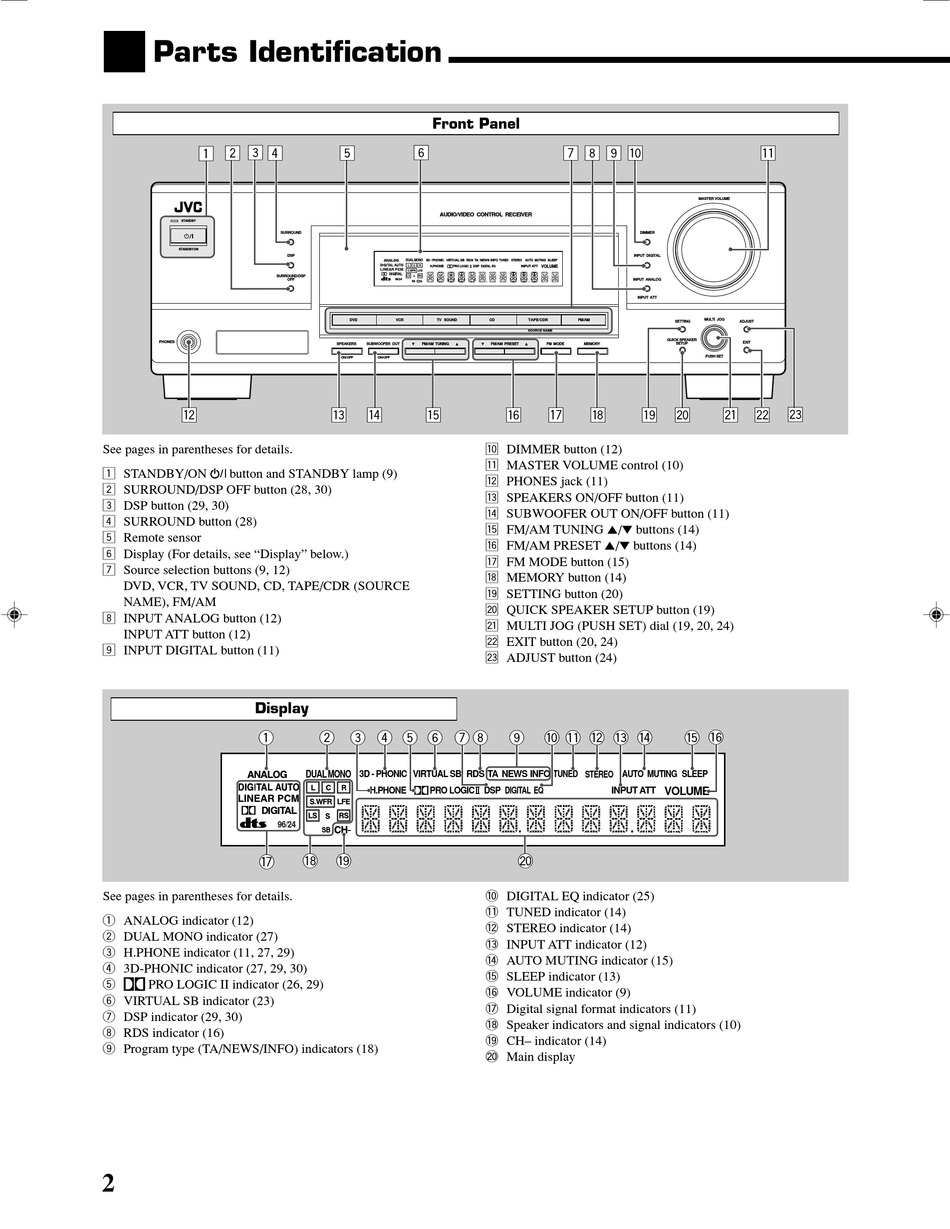

Parts Identification

1 2 3 4
STANDBY
STANDBY/ON
PHONES
w
See pages in parentheses for details.
1 STANDBY/ON
button and STANDBY lamp (9)
2 SURROUND/DSP OFF button (28, 30)
3 DSP button (29, 30)
4 SURROUND button (28)
5 Remote sensor
6 Display (For details, see "Display" below.)
7 Source selection buttons (9, 12)
DVD, VCR, TV SOUND, CD, TAPE/CDR (SOURCE
NAME), FM/AM
8 INPUT ANALOG button (12)
INPUT ATT button (12)
9 INPUT DIGITAL button (11)
Display
1
$
See pages in parentheses for details.
1 ANALOG indicator (12)
2 DUAL MONO indicator (27)
3 H.PHONE indicator (11, 27, 29)
4 3D-PHONIC indicator (27, 29, 30)
5
PRO LOGIC II indicator (26, 29)
6 VIRTUAL SB indicator (23)
7 DSP indicator (29, 30)
8 RDS indicator (16)
9 Program type (TA/NEWS/INFO) indicators (18)
2
5 6
RX–6030V
SURROUND
DSP
DUALMONO 3D - PHONIC
H.PHONE
SURROUND/DSP
OFF 96/24
SB
DVD VCR
D I G I T A L SPEAKERS SUBWOOFER OUT FM/AM TUNING
P R O L O G I C
ON/OFF ON/OFF
e r t
2 3 4 5 6 7
DUALMONO
3D - PHONIC VIRTUAL SB RDS TA NEWS INFO TUNED STEREO AUTO MUTING SLEEP
H.PHONE PRO LOGIC
96/24
SB
% ^
Front Panel
7 8 9 p
AUDIO/VIDEO CONTROL RECEIVER
VIRTUAL SB RDS TA NEWS INFO TUNED STEREO AUTO MUTING SLEEP
PRO LOGIC DSP DIGITAL EQ INPUT ATT VOLUME
TV SOUND CD TAPE/CDR FM/AM
SOURCE NAME
FM/AM PRESET FM MODE MEMORY
y u i
p DIMMER button (12)
q MASTER VOLUME control (10)
w PHONES jack (11)
e SPEAKERS ON/OFF button (11)
r SUBWOOFER OUT ON/OFF button (11)
t FM/AM TUNING 5/∞ buttons (14)
y FM/AM PRESET 5/∞ buttons (14)
u FM MODE button (15)
i MEMORY button (14)
o SETTING button (20)
; QUICK SPEAKER SETUP button (19)
a MULTI JOG (PUSH SET) dial (19, 20, 24)
s EXIT button (20, 24)
d ADJUST button (24)
8 9 0 - =
DSP DIGITAL EQ
&
0 DIGITAL EQ indicator (25)
- TUNED indicator (14)
= STEREO indicator (14)
~ INPUT ATT indicator (12)
! AUTO MUTING indicator (15)
@ SLEEP indicator (13)
# VOLUME indicator (9)
$ Digital signal format indicators (11)
% Speaker indicators and signal indicators (10)
^ CH– indicator (14)
& Main display
