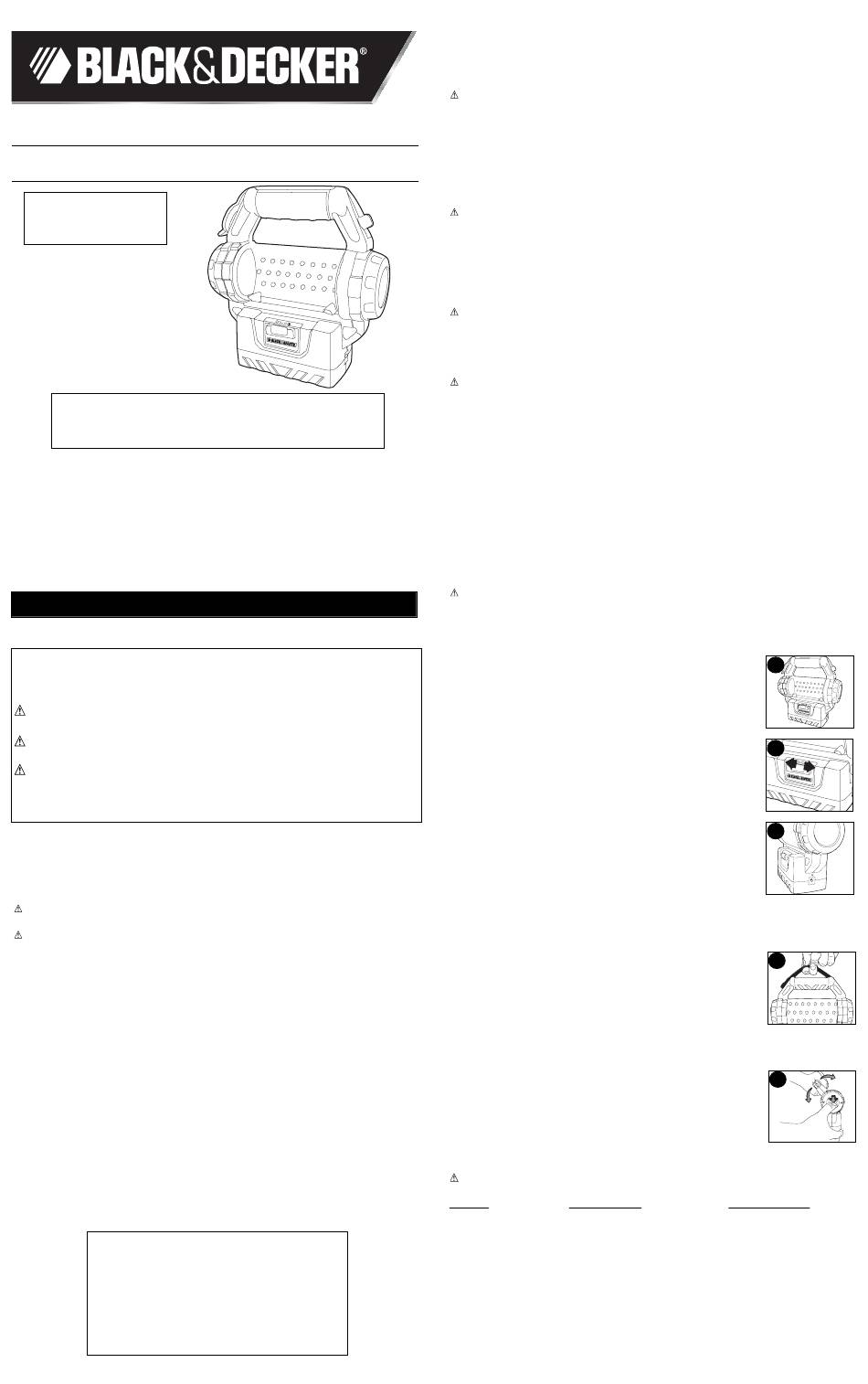

Black & Decker WLF013BD Instruction Manual

RECHARGEABLE HIGH OUTPUT
LED AREA LIGHT
INSTRUCTION MANUAL
Catalog Number
WLF013BD
Thank you for choosing Black & Decker!
Go to www.BlackandDecker.com/NewOwner
to register your new product.
P P L L E E A A S S E E R R E E A A D D B B E E F F O O R R E E R R E E T T U U R R N N I I N N G G T T H H I I S S
P P R R O O D D U U C C T T F F O O R R A A N N Y Y R R E E A A S S O O N N : :
If you have a question or experience a problem with your Black & Decker purchase, go to
HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS
for instant answers 24 hours a day.
If you can't find the answer or do not have access to the internet,
call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.
Please have the catalog number available when you call.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
Catalog No. WLF013BD Form No. 90542847
Copyright © 2008 Black & Decker
SAFETY GUIDELINES - DEFINITIONS
It is important for you to read and understand this manual.
The information it contains relates to protecting YOUR SAFETY and PREVENTING
PROBLEMS. The symbols below are used to help you recognize this information.
DANGER:
Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING:
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
CAUTION:
Used without the safety alert symbol indicates a potentially hazardous situation
which, if not avoided, may result in property damage.
RISK OF UNSAFE OPERATION. When using tools or equipment, basic safety precautions should always be
followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or
equipment could result in serious injury and property damage. There are certain applications for which tools
and equipment are designed. Black & Decker strongly recommends that this product NOT be modified and/or
used for any application other than for which it was designed. Read and understand all warnings and operating
instructions before using any tool or equipment.
IMPORTANT SAFETY INSTRUCTIONS
GENERAL SAFETY WARNINGS AND INSTRUCTIONS FOR ALL APPLIANCES
READ ALL INSTRUCTIONS
WARNING: Read all instructions before operating product. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury.
• AVOID DANGEROUS ENVIRONMENTS: Don't use light in damp or wet locations. Don't use light in
the rain.
• STORE IDLE APPLIANCES INDOORS. When not in use, appliances should be stored indoors in dry,
and high or locked-up place – out of reach of children – to avoid the risk of damaging the appliance.
• DON'T FORCE APPLIANCE. It will do the job better and with less likelihood of a risk of injury at the
rate for which it was designed.
• DON'T ABUSE CORD. Never carry light by the charger cord or yank it to disconnect from receptacle. Keep
cord from heat, oil, and sharp edges.
• DON'T OVERREACH. Keep proper footing and balance at all times.
• DISCONNECT APPLIANCES. Disconnect the 120 Volt AC Charger from the power supply when not in use.
• GROUND FAULT CIRCUIT INTERRUPTER (GFCI) protection should be provided on the circuits or
outlets to be used. Receptacles are available having built in GFCI protection and may be used for this
measure of safety. Charger plug must match the outlet. Never modify the plug in any way.
• USE OF ACCESSORIES AND ATTACHMENTS. The use of any accessory or attachment not
recommended for use with this light could be hazardous.
• STAY ALERT. Watch what you are doing. Use common sense. Do not operate appliance when you are tired.
• CHECK DAMAGED PARTS. Before further use of the appliance, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any
other conditions that may affect its operation. A guard or other part that is damaged should be properly
repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this
instruction manual. Have defective switches replaced by authorized service center. Do not use
appliance if switch does not turn it on and off.
• EXTENSION CORDS. Make sure your extension cord is in good condition. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord
will cause a drop in line voltage resulting in loss of power and overheating. The accompanying table
shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use
the next heavier gage. The smaller the gage number, the heavier the cord.
Minimum Gage for Cord Sets
Volts
120V 0-25
(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)
240V 0-50
(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)
Ampere Rating
More Not more
Than Than
0 - 6 18
6 - 10 18
10 - 12 16
12 - 16 14
SEPT. '08
Printed in China
Total Length of Cord in Feet
26-50 51-100 101-150
51-100 101-200 201-300
American Wire Gage
16 16 14
16 14 12
16 14 12
12 Not Recommended
• OUTDOOR USE EXTENSION CORDS. When appliance is charged outdoors, use only extension cords
intended for use outdoors and so marked.
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO
PERSONS
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
• Never look directly into the lighted lamp or shine the lamp into another person's eyes.
• Charge (use) only with originally supplied CLASS 2 transformer. Consult Manufacturer for
replacement.
• This LED Area Light is NOT waterproof. Do not submerge in liquids of any kind. Do not expose unit or
charger to rain or wet conditions. Water entering the light will increase the risk of electric shock.
• Do not drop or throw work light. It contains a nickel metal hydride battery pack.
• Do not hang the LED Area Light on anything that could become electrically "live."
CHARGING SAFETY WARNINGS AND GUIDELINES
Before using battery charger, read all instructions and cautionary markings on battery charger and unit.
CAUTION: To reduce the risk of injury, charge only Black & Decker Batteries. Other types of batter-
ies may burst causing personal injury and damage.
• Do not expose charger to rain or snow. Use in a dry location only.
• Do not crush, cut, pull or expose charger cords to extreme heat.
• Position charger cords so they do not become entangled or become a safety hazard. Keep charger cords
away from sharp edges.
• To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting
unit from the 120 Volt AC Charger.
• An extension cord should not be used unless absolutely necessary. Use of improper extension cord
could result in a risk of fire, electric shock or electrocution.
WARNING: Use only the supplied charger when charging your tool. The use of any other
charger could damage the tool or create a hazardous condition.
• Do not dispose of product in fire as batteries inside this product may explode or leak.
• Do not expose the unit containing a battery to fire or intense heat as it may explode.
• Use only one charger when charging.
• Do not attempt to charge the unit if the 120 Volt AC Charger plug is damaged— return the unit to
manufacturer for repair.
WARNING: Do not attempt to open the charger. There are no customer serviceable parts
inside. Return to manufacturer for repair.
• A small leakage of liquid from the battery pack cells may occur under extreme usage, charging or
temperature conditions. This does not indicate a failure. However, if the outer seal is broken and this
leakage gets on your skin:
a. Wash quickly with soap and water.
b. Neutralize with a mild acid such as lemon juice or vinegar.
c. If the battery liquid gets in your eyes, flush them with clean water for a minimum of 10 minutes and
seek immediate medical attention. MEDICAL NOTE: The liquid is a 25-35% solution of potassium
hydroxide.
• All ON/OFF switches should be in the OFF position when the unit is charging or not in use. Make sure
all switches are in the OFF position before connection to a power source or load.
• After charging/recharging, disconnect charger or extension cord and wait 5 minutes before use.
• Although this unit contains a non-spillable battery, it is recommended that unit be kept upright during
storage and recharging. To avoid possible damage that may shorten the unit's working life, protect it
from direct sunlight, direct heat and/or moisture.
• Important: This unit is delivered in a partially charged state. Fully charge unit for 24 hours before
using for the first time (refer to the "Charging/Recharging the Unit" section of this instruction manual).
• Read And Understand This Instruction Manual Before Using This Unit.
SAVE THESE INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF INJURY:
Follow these instructions and review cautionary markings on product.
INTRODUCTION
Thank you for choosing the Black and Decker
read this guide carefully before use to ensure optimum performance and avoid damage to the unit or
items that you are using it with.
FEATURES - FIGURE 1
1. Offers two lighting options: 13-LED Area light or 25-LED area light
2. Cordless operation
3. Built-in rechargeable Ni-MH battery (with supplied 120 Volt AC Charger)
4. High impact, shatter-resistant ABS housing
5. Innovative support cord supports light in nearly any orientation
6. Six position light housing
OPERATING THE UNIT - FIGURE 2
Position the unit as desired. The ON/OFF Switch on the front of the unit has
three positions.
The center position is OFF.
The right position turns 13 LED lights on.
The left position turns all 25 LEDs on.
CHARGING/RECHARGING THE UNIT - FIGURE 3
Insert the barrel connector of the AC Charger into the AC 5 Volt Charging Port
on the side of the unit. Insert the plug end into a standard 120 Volt 60 Hz outlet.
The red Charging LED Indicator will light when the unit is charging.
Notes:
• Charge this unit ONLY with the originally supplied Class 2 transformer.
Consult manufacturer for replacement.
• To extend battery life, disconnect the charger after 48 hours.
• All batteries lose charge with time, especially when they are warm. Recharge the unit every
two months for 24 hours when not in frequent use.
• If the unit is not going to be used for extended periods, disconnect the charger and store in
a cool, dry place.
USING THE SUPPORT CORD - FIGURE 4
The Support Cord allows you to position the LED Area Light for convenient,
hands-free operation.
CAUTION: TO REDUCE THE RISK OF PRODUCT DAMAGE:
• When light is hung by the Support Cord, do not shake the light or object that it
is hanging from. Do not hang the light from any electrical wires or anything
that it is not secure.
• Only use the Support Cord for hanging the LED Area Light. The Support Cord is not intended to
support additional weight. Do not attach or hang anything additional to the light or risk of breakage
may occur.
- FIGURE 5
ROTATING THE LIGHT HOUSING
The handle can be moved by pressing down on the slide release and
rotating the handle into one of six locked positions. These different
handle positions can be used to carry the light or to lean the light back
on the handle for stationary use.
ACCESSORIES
Recommended accessories for use with your appliance are available from your local dealer or
authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.
WARNING: The use of any accessory not recommended for use with this tool could be hazardous.
Troubleshooting
Problem Possible Cause
• Light will not come on. • Battery not charged.
• Battery will not charge. • Charger not plugged in.
®
Rechargeable High Output LED Area Light. Please
1
2
3
4
5
Possible Solution
• Check battery charging
requirements.
• Plug charger into a working
outlet. Refer to
" Charging the Unit"
for more details.
• Check current at
receptacle by plugging
in a lamp or other appliance.
• Check to see if
receptacle is connected
to a light switch which
turns power off when
you turn out the lights.
