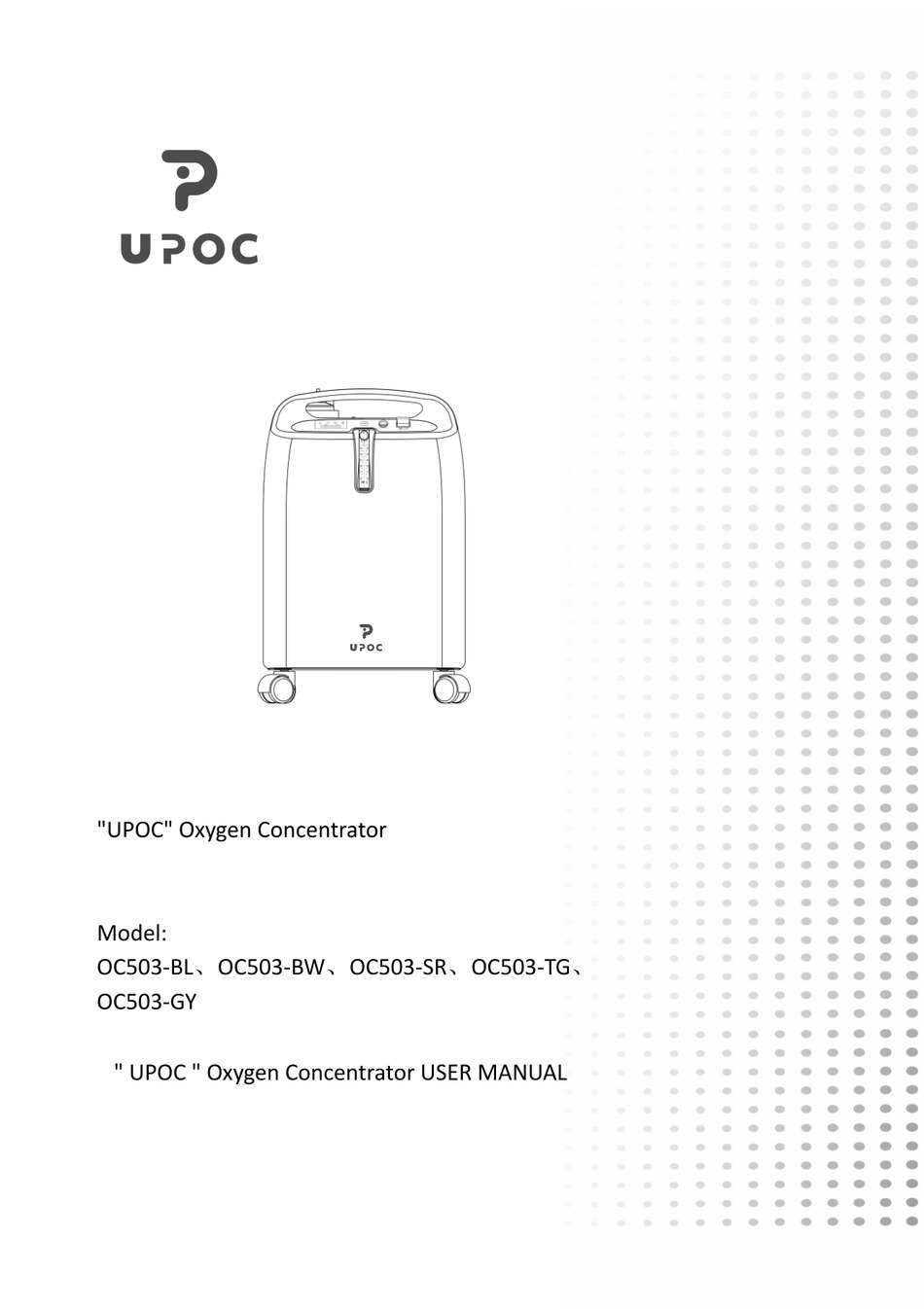

- Page 1 "UPOC" Oxygen Concentrator Model: OC503-BL、OC503-BW、OC503-SR、OC503-TG、 OC503-GY " UPOC " Oxygen Concentrator USER MANUAL...
-
Page 2: Table Of Contents
OXYGEN CONCENTRATOR USER MANUAL CATALOGUE PREFACE ......................3 WARNINGS AND CAUTIONS ................. 4 SYMBOL KEY ....................9 DEVICE AND ACCESSORIES DESCRIPTION ........... 10 OPERATING INSTRUCTIONS ................ 11 INTRODUCTION ..................13 STRUCTURE ....................13 SCOPE OF APPLICATION ................13 CONTRAINDICATION ................... 13 ENVIRONMENT REQUIREMENTS .............. -
Page 3: Preface
The accessories for this device included humidifier bottles and oxygen tubes should be provided by FACIOX INC. or should meet the basic criteria for this specific product and with approval of the local country’s healthy sector. -
Page 4: Warnings And Cautions
OXYGEN CONCENTRATOR USER MANUAL WARNINGS AND CAUTIONS DANGER (If the following items are violated, it may cause serious injury or death) % Measures to reduce the risk of burns, electric shock, fire, or injury. Avoid using Oxygen Concentrator while taking a bath. If it is necessary, please follow the doctor's or home care’s instructions, and the Oxygen Concentrator must be place in another room away from the bathroom. - Page 5 OXYGEN CONCENTRATOR USER MANUAL respiratory therapy are suggested to follow the doctor's guidance when selecting the oxygen flow and time on the device. % If any discomfort or abnormal reactions arise, please immediately stop using this product, and contact the manufacturer or doctor. % The severe patients would need additional indications to operate the products or additional associated medicaine.
- Page 6 OXYGEN CONCENTRATOR USER MANUAL the machine$ % Do not open the machine's casing and remove the mainboard for maintenance. If the user found any issue or abnormality in the device such as emergency alarms, please do not disassemble and repair them without permission from supplier or manufacture.
- Page 7 OXYGEN CONCENTRATOR USER MANUAL oxygen and caused the oxygen coming out to raise above 41°C (106°F). As a result, respiratory tract can be hurt. % This machine is not designed to switch on and off frequently, the time interval in between and on and off switch should not be less than 5 minutes, so to reduce the risk in shortening the compressor’s life.
- Page 8 % When this machine is scrapped, please contact your local supplier or manufacturer. - Please refer to “SYMBOL KEY” for UPOC symbol printed on the device, package, and in manual. ! - Please refer to “DEVICE AND ACCESSORIES DESCRIPTION” to test the equipped components when received the device and before use and then operate it as “PRODUCT OPERATING PROCEDURE”.
-
Page 9: Symbol Key
OXYGEN CONCENTRATOR USER MANUAL SYMBOL KEY Off+Total power supply, On+Total power supply, Follow the instructions No open flame No Smoking Date of manufacture Warnings Serial Number Cautions Up Put Double insulated Avoid the rain Keep dry Type BF applied part Fragile handle with care. -
Page 10: Device And Accessories Description
OXYGEN CONCENTRATOR USER MANUAL DEVICE AND ACCESSORIES DESCRIPTION When you received the product, please open and check the package carefully. This product is equipped with upper and lower foam protection cover. If the protective cover is damaged, please check whether the product is damaged or not immediately. -
Page 11: Operating Instructions
OXYGEN CONCENTRATOR USER MANUAL OPERATING INSTRUCTIONS 12 The tie on the bottom of the machine needs to be cut off before turning on the device. The back of this machine should be far fro m the wall for least 30 cm, must be the bottom of the bubble bo ard and other things to get open, to ensure that the bottom of th e stack, in order to maintain the bottom of the air flow and ensur e the normal heat. - Page 12 OXYGEN CONCENTRATOR USER MANUAL b. Fix the humidifier bottle on the front shell with strap and connect to the air intake connector through humidifier bottle tubes with the oxygen output spot.+Figure2,. Notice!The most recommended place to install humidifier bottle are shown in figure 2 32 Remove the AC power cord from the retaining strap, confirm if the switch is in the off position.
-
Page 13: Introduction
OXYGEN CONCENTRATOR USER MANUAL INTRODUCTION Oxygen concentrator provides low flow oxygen therapy to patients at home. Our oxygen generator product produces concentrated oxygen from room air for delivery to a patient requiring low flow oxygen therapy. The oxygen from the air is concentrated using a molecular sieve and a pressure swing adsorption process. -
Page 14: Transportation And Storage Conditions
OXYGEN CONCENTRATOR USER MANUAL 3. Atmospheric Pressure386 kPa/106 kPa 4 No corrosive gas and strong magnetic field in the surrounding environment. TRANSPORTATION AND STORAGE CONDITIONS 1. Storage and Transport Temperature3- 20℃ / +55℃4 2. Storage and Transport Humidity3≤ 93%4without no condensation phenomenon4 3. - Page 15 OXYGEN CONCENTRATOR USER MANUAL No signal output and signal input part4!! Usage Voltage3 220V/260Hz4 Working3Continuous working4 With the application of oxygen free discharge part of the protective effect of defibrillation4 Oxygen Concentrator is for non-permanent installation equipment. Altitude: 0 meter to 1828 meter*oxygen purity 690%* 1829 meter to 4000 meter, ≤90% 0&!
-
Page 16: Specifications
OXYGEN CONCENTRATOR USER MANUAL SPECIFICATIONS Model OC503 Working Voltage 110V or 220V! ± 10% / 50 or 60 Hz ± 3Hz Rated Power "VA# Output Pressure=0/7kPa, 0.5!5 the flow range"L/min# Output Pressure=0,the purity value"within 10min$ Oxygen flow=0.5!5 L/min$purity%90% up to the standard# Highest Flow 5 L/min Highest Flow... -
Page 17: System Overview
OXYGEN CONCENTRATOR USER MANUAL SYSTEM OVERVIEW +Figure 6, +Figure5, * The following Component description refers to figure 5, figure6 * 1. Oxygen outlet3Connect to the humidifier bottle or nasal cannula by connecting tube 2. nebulizer connect outlet #5 position to place humidifier bottle! 4. - Page 18 OXYGEN CONCENTRATOR USER MANUAL (Figure 8) 11. Power switch ! O: Off / I:On 12. Reset: Reset AC power while overloaded. 13. Oxygen flow meter a. The ball inside the flow meter shows the oxygen flow that higher position is faster flow and lower position is slower flow ( L/min). b.
- Page 19 OXYGEN CONCENTRATOR USER MANUAL +Figure 15, 15. LED Display(Reference figure 15 , a. Green Power Indicator – Start b. Green Timer Indicator - Timer set and start c. Yellow Low Purity Indicator - Low Purity of Oxygen d. Red Alarm indicator - Contact the manufacturer e.
- Page 20 OXYGEN CONCENTRATOR USER MANUAL When the oxygen concentrator is working, it will automatically monitor the machine status. If the oxygen purity is below 82% then the machine will light up the Yellow Low Purity Indicator, issue an alarm and display the “Lo-o2” on LED display.
-
Page 21: Cleaning And Maintenance Instructions
OXYGEN CONCENTRATOR USER MANUAL If the air temperature of the oxygen outlet is over 46 ° C, the machine will light up the Red Alarm Indicator, issue an alarm and the display "E07" on the LED display. The machine will stop working within one minute. Please turn off the power and contact your local service or manufacturer. -
Page 22: Warranty
OXYGEN CONCENTRATOR USER MANUAL the important step to protect the machine. It is recommended to clean the air filter foam twice per month5! WARRANTY 12 Warranty is free from defects in materials and workmanship under normal and proper use and when correctly maintained in accordance with applicable instructions, for a period of 1 year from the date of purchase.. -
Page 23: Troubleshooting
OXYGEN CONCENTRATOR USER MANUAL TROUBLESHOOTING !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! In order to avoid electric shock, please do not open the device. The covers should only be removed by authorized service personnel.5!! The table below lists common problems and actions you can take. If you are unable to resolve a problem, please contact your home care provider. - Page 24 OXYGEN CONCENTRATOR USER MANUAL D. Both the green Normal Oxygen and the yellow Low O.C.I malfunction Contact your supplier Oxygen lights are either on or off. 1. Flow meter is Ensure the flow meter is properly set to the E. Yellow Low Oxygen not properly yet.
-
Page 25: Emc Information
OXYGEN CONCENTRATOR USER MANUAL EMC INFORMATION Guidance and manufacturer’s declaration-electromagnetic emissions The ME is intended for use in the electromagnetic environment specified below. The customer or the user of the ME should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance... - Page 26 OXYGEN CONCENTRATOR USER MANUAL Guidance and manufacturer’s declaration-electromagnetic immunity The ME is intended for use in the electromagnetic environment specified below. The customer or the user of the ME should assure that it is used in such an environment. Electromagnetic IEC 60601 Immunity test Compliance level...
- Page 27 OXYGEN CONCENTRATOR USER MANUAL ME be powered from an uninterruptible power supply or a battery. The ME power Power frequency magnetic frequency(50, fields should be at 3A/m 3A/m levels characteristic of a magnetic field typical location in a IEC 61000-4-8 typical commercial or hospital environment.
-
Page 28: Environment Protection
OXYGEN CONCENTRATOR USER MANUAL and d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range Interference may occur in the vicinity of equipment marked with the following symbol: NOTE1...
