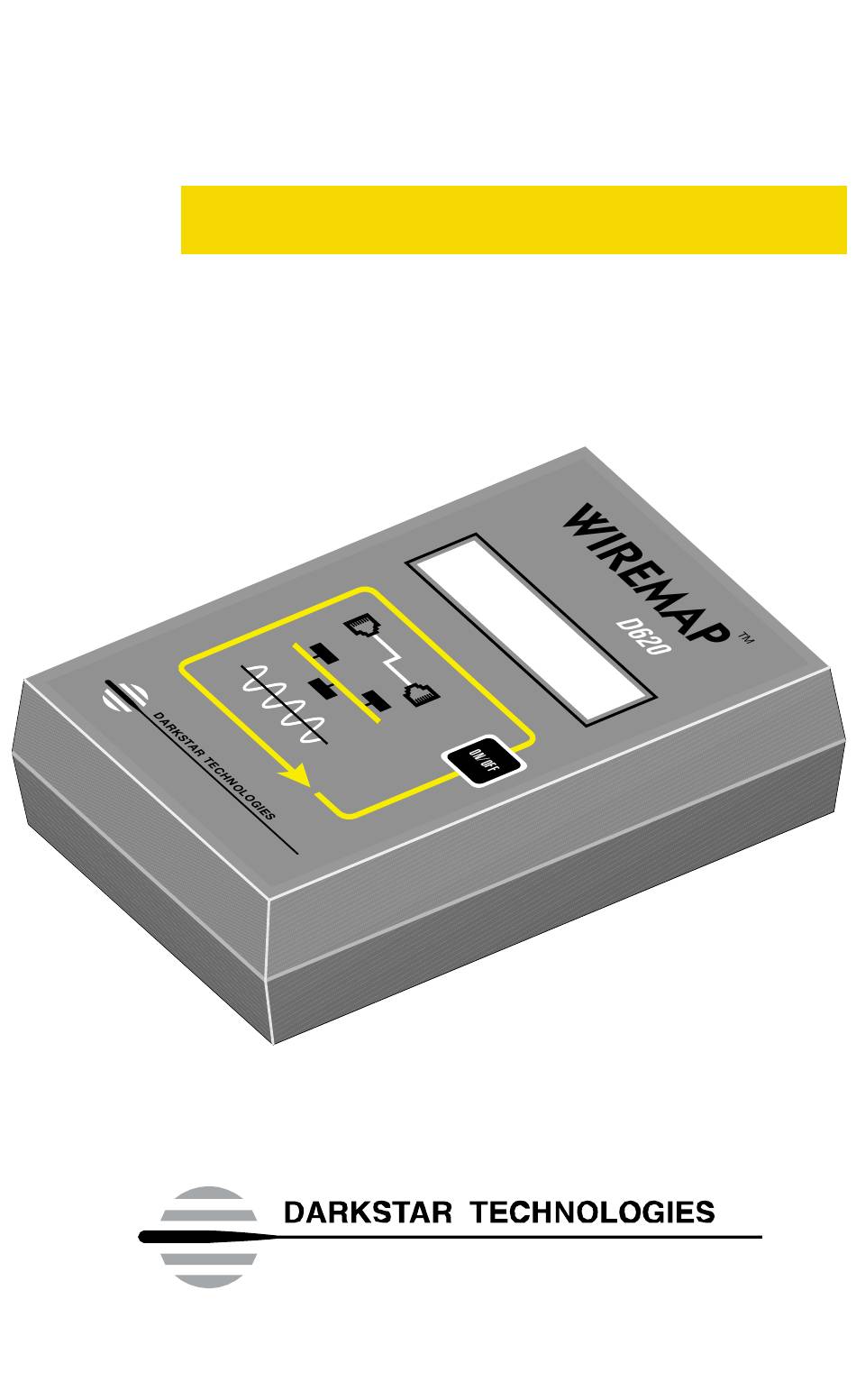

- Page 1 WIREMAP D620 3-Way LAN Tester GUIDE TO OPERATION P.O. Box 2368 West Lafayette, IN 47996 United States of America...
- Page 2 Features The WireMap 620 was created to greatly simplify the work of installers, technicians and administrators who support 10/100 Mbit ethernet LANs. The 620 is affordable, easy-to-use and its unique set of features makes it a valuable addition to everyone’s tool kit. In addition to testing your LAN cables for correct termination, the 620 will display link and traffic information and can act as a toner for cable identification.
- Page 3 Note: A “split-pair” fault is created when twisted pairs are incorrectly terminated. The DC continuity of the cable can still be correct and the pair fault can only be detected using a near-end crosstalk or NEXT measurement. The 620 does all this for you before it declares a cable to be good.
- Page 4 (765) 775-4073 or via our website at: www.wiremap.com/ Warranty Darkstar Technologies warrants its products against defects in materials or workmanship for a period of one year from the date of purchase. Any product that is returned shipping prepaid will be inspected and tested, and items meeting warranty conditions will be repaired or replaced free of charge.
