- Page 1 Height & Weight Auto Measuring Scale English Manual DS-103M DONG SAHN JENIX CO., LTD.
-
Page 2: Table Of Contents

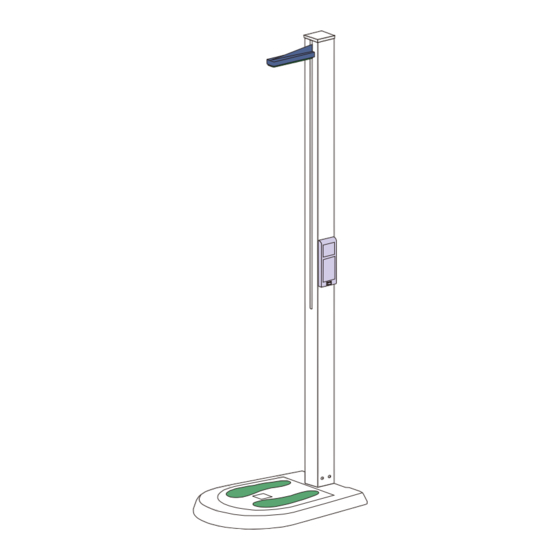

Contents DS-103M Structures Assembling Procedures How to use Conversion of BMI, Fatness and Sound Correction of weight error BMI & FAT categories Trouble shooing Specifications... - Page 3 1. Structures Touch-bar (touch-rod) Conversion FAT lamp Switch/button BMI lamp Sound lamp Display panel LED for conversion of BMI/FAT Power switch Rail Bolt screws (M5x10: 6pcs) Connector for power input Base Weighing board (feet board) Balancing rubber screws (5pcs)
-
Page 4: Assembling Procedures
2. Assembling procedures Assembling Step 2 Step 1 Put together rail ⑤ & base⑧, Lay down the body on its side and join 2 pairs of connectors in the bottom of the base, then, screw 6pcs bolts tight according to the same colors and shapes. as in the drawing. -
Page 5: How To Use
3. How to use 2. Push the power switch ④ for 2seconds. (push for 2 seconds to turn off also) 1. Plug in the DC power adapter. 4. Stepping on a weighing board (feet shaped). 3. Check if BMI lamp is on. (whenever pushing and do not make any movement. - Page 6 4. Conversion of BMI, FAT and Sound BMI↔FAT conversion button Each time pushing the button, BMI or FAT changes in return. Sound↔No sound conversion button Each time pushing for 3 seconds the button, “3sec.” Sound on or off changes in return. sound off sound on...
-
Page 7: Correction Of Weight Error
5. Correction of weight error lower when the measured weight value is than real weight 10 seconds 1. Push the setting button for by using a pin. Then, the touch-bar will go down and Push (or keep pushing) the stop at the level of the display. touching plate until exact weight displayed. -
Page 8: Bmi & Fat Categories
130cm(4.26 ft). This cannot be applied to children and 18 ~ 20: over weight adolescents. over 20: obese ※ As fatness rate for female doesn’t display in model DS-103M, we recommend you to use only mode at all times. Body Mass Index... - Page 9 7. Trouble shooting check if the power is plugged in or connection is loose. Touch-bar doesn’t move Turn off the power, pull down the touch-bar 5~10 cm downward, and turn on. If the touch-bar in the top with no power but there is any sound, pull it down 5~10cm downward and turn it on.
-
Page 10: Specifications
