I.Trek M7 User Manual

Bluetooth gps receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

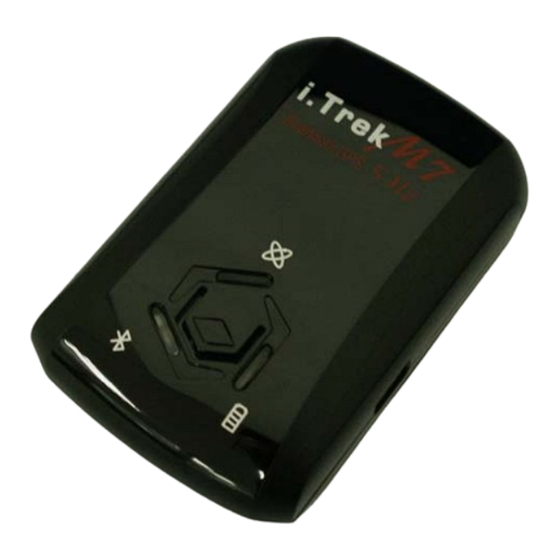

i.Trek M7 Bluetooth GPS Receiver
User's Manual
rd
Published on Jan. 3
, 2008

Advertisement

Table of Contents
loading

Related Manuals for I.Trek M7

Summary of Contents for I.Trek M7

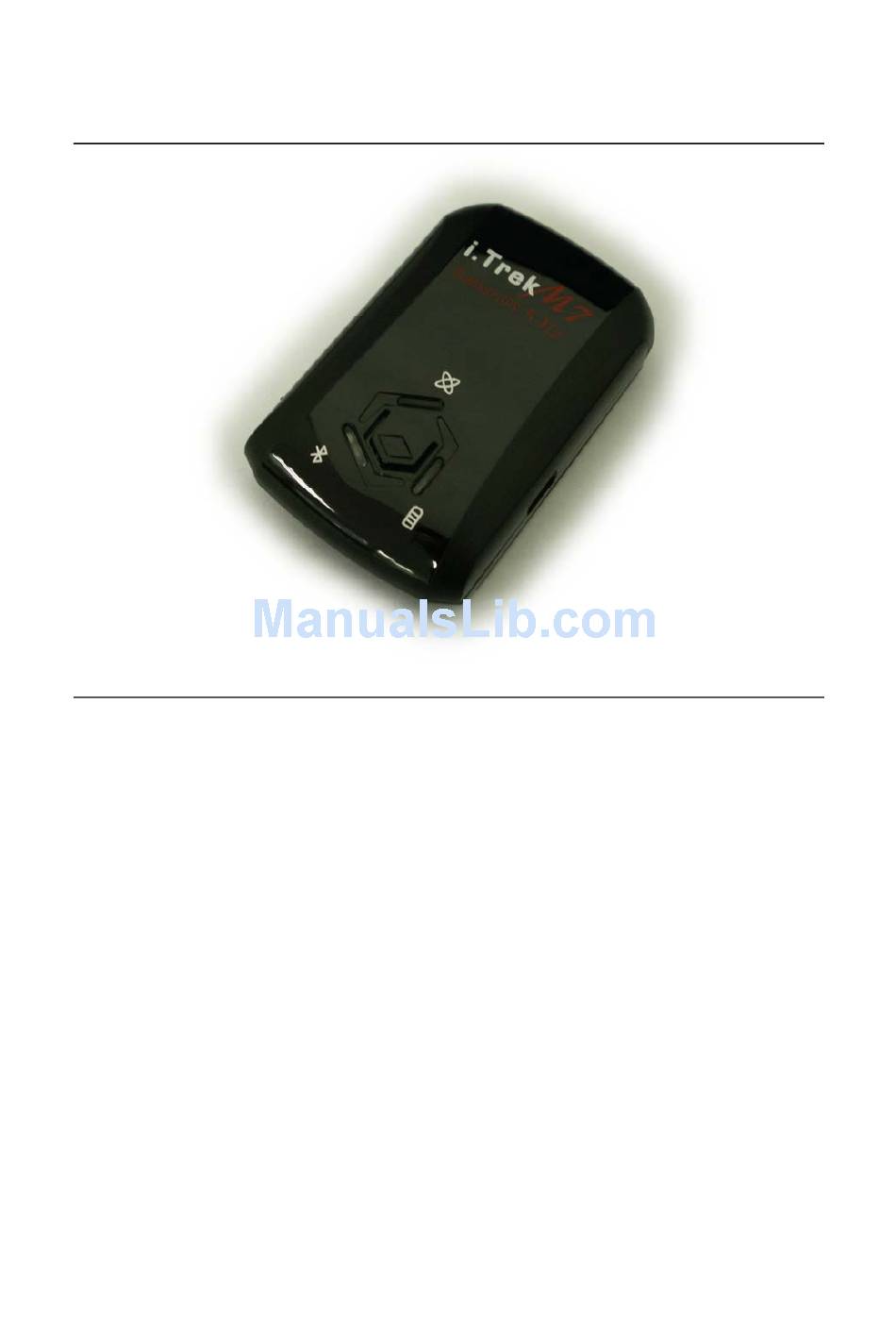

  • Page 1 M7 Bluetooth GPS Receiver User’s Manual Published on Jan. 3 , 2008...

  • Page 2: Table Of Contents

    Step 1 Charging Your Battery ... 6 Step 2 Turn on the power switch (NAV/ USB) ... 7 Step 3 Connecting your handheld device with i.Trek M7.. 7 Step 4 Load your GPS mapping or routing software ... 10 Step 5 Start the application ... 10 Chapter 3 How to configure your GPS Receiver ?...
  • Page 3 GPS receiver may also affect these medical equipments which use radio frequency and make these equipments malfunction. - For a long period not using i.Trek M7, take out the battery and store it in dry/cool places.

  • Page 4: Chapter 1 Before You Begin

    With the dimension of 72.2(L) x 46.5(W) x 20(H) mm and weight only 64.7g (w/ battery), i.Trek M7 is an ideal solution to carry along everywhere. i.Trek M7’s rechargeable battery can save satellite information such as the status of the satellite signal, most recent location and the data and time of its last use.

  • Page 5: Appearance

    1.1 Appearance 1. Power jack (mini USB type) 2. Mode switch (Power off/ Navigation (Bluetooth)/ USB) 3. Battery status LED (red/green) 4. Bluetooth status LED (blue) 5. GPS status LED (orange) 6. Internal antenna...

  • Page 6: Checking The Package Content

    1.2 Checking the package content Congratulations on your purchase of the i.Trek M7 with built-in Lithium rechargeable battery. Before you start using i.Trek M7, please make sure if your package includes the following items. If any item is damaged or missing, please contact your dealer at once.

  • Page 7: Chapter 2 Getting Started

    Step 1 Charging Your Battery For the 1 time you use the i.Trek M7, please charge battery until it is full (the LED blinks). Take the power cable and connect it to the power jack (mini USB type). This will begin to charge the battery. The LED that represents the battery is the right-most battery icon (shown in below).

  • Page 8: Step 2 Turn On The Power Switch (Nav/ Usb)

    Step 3 Connecting your handheld device with i.Trek M7 Please refer to the user manual of PDA to enable the Bluetooth connectivity. If the connection between your device and i.Trek M7 is successful, the blue LED of i.Trek M7 will be blinking.
  • Page 9 Start -> Bluetooth Manager 1. Open “Bluetooth Manager” on pocket pc, and establish new connection. Explore A Bluetooth device ->Next --> --> Tap iBT-GPS...
  • Page 10 2. Explore a Bluetooth device, and find the “iBT-GPS” Passkey 0000 (if your PDA ask for the passkey) 3. (Optional) --> Select SPP slave->Next Finish...

  • Page 11: Step 4 Load Your Gps Mapping Or Routing Software

    Done slave, Connect 5. Finish Bluetooth Manager Setup Step 4 Load your GPS mapping or routing software Step 5 Start the application Select the correct COM port & baud rate. Note: The Bluetooth device in most of the applications has an...

  • Page 12: Chapter 3 How To Configure Your Gps Receiver

    Chapter 3 How to configure your GPS Receiver ? The GpsView program only supports the Microsoft Windows based platform. 3.1 USB driver Installation Before the USB connector plugs in your PC/ Laptop, please have your USB Driver Installation ready. (Install CP210x driver for USB port from CD-ROM.)
  • Page 13 still more options for choice of NMEA output, DGPS…etc. all available through pull-down menus.
  • Page 14 Appendix A. LED Display The Bluetooth GPS Receiver has three LED lights, one is Bluetooth Status LED, the 2 Status LED. The status table of LED shows as follows: Category SYMBO Bluetooth Status Battery Status LED GPS Status LED one is Battery Status LED, the 3...

  • Page 15: Appendix B. Fuzzy Auto On/Off

    With fuzzy auto on/off, if the connection between your device and i.Trek M7 is successful, i.Trek M7 will wake up itself and the blue LED of i.Trek M7 will be quickly blinking again (every 2 sec) and the orange LED of i.Trek M7 will also be on.
  • Page 16 Warm start Cold start Sensitivity Update Dynamic Altitude Velocity Acceleration Power Input Voltage Power Consumption Battery Protocols GPS Output Data NMEA Environment Without aid:<4g DGPS (WAAS,EGNOS,MSAS):<4g 50 ns RMS <1s Acquisition:-144dBm Tracking:-158dBm 1~5Hz Maximum 18,000m Maximum 515m/s Maximum 4g Vin : DC 5.0V±10% 47mA (Avg.)
  • Page 17 Operating Temperature Storage Temperature Charging Bluetooth Standard Output Power Range Bluetooth Profile Frequency Security Physical Characteristics Dimension Weight -10 ~ 60C -20 ~ 60C 0 ~ 45C Fully compliant with Bluetooth V1.2 0dBm (Typical),ClassII 10 ~ 15 meters Serial Port Profile(SPP) 2.4G ~ 2.4835GHz ISM Band 46.5 x72.2 x20 mm 64.7g...

  • Page 18: Appendix D. Frequently Asked Questions

    A: You will need to make sure your PDA is paired with Bluetooth device. Follow the section “Chapter 2. Getting started > Step 3 Connecting your handheld device with the i.Trek M7” to make sure that your PDA is recognizing the Bluetooth GPS receiver properly. If so, you will need to connect with the device by going to the Bluetooth Manager and double-tapping on the iBT-GPS icon.

  • Page 19: Appendix E. How To Change Battery

    Step 1 Press the button to right side Step 2 Open the cover of battery Step 3 Take out the battery Step 4 Fit new battery into i.Trek M7 Step 5 From R to L close the cover Step 6 Done...

  • Page 20: Appendix F. Helpful Tips

    This may happen when you drive at higher speed or make a turn around a corner. - Note that i.Trek M7 may not work indoors where it can not see the sky. - For the 1 time you use the i.Trek M7, it will take 1 to 3 minutes to get the...

  • Page 21: Appendix G. Certification

    Appendix G. Certification FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interface, and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 22 CE Notices Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC.

  • Page 23: Appendix H. Warranty And Support Information

    Appendix H. Warranty and Support Information Thank you for your purchase of GPS product from the company. The company warrants this product to be free from defects in materials and workmanship for one year from the date of purchase. The warranty for accessories is six months. The stamp of distributor or a copy of the original sales receipt is required as the proof of purchase for warranty repairs.
  • Page 24 Warranty Model number: Series number: Data of purchase: Name: Address: City, Zip code: State, Country: E-mail address: Distributor Stamp Here...
