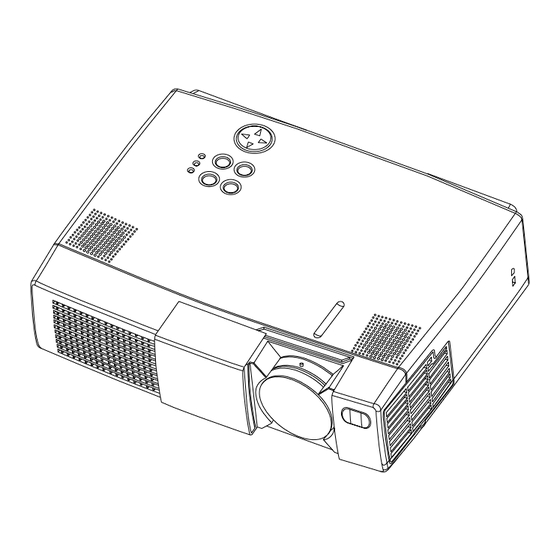

Hitachi CP-X320 User Manual

Liquid Crystal Projector
USER'S MANUAL
Thank you for purchasing this liquid crystal projector.
Please read the accompanying manual "SAFETY INSTRUCTIONS" and this "USER'S
MANUAL" thoroughly to ensure correct usage through understanding. After reading,
store this instruction manual in a safe place for future reference.
NOTE:
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual
• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.
TRADEMARK ACKNOWLEDGMENT:
• PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• Carefully observe the trademarks and registered trademarks of all companies, even when not
mentioned.
CONTENTS
FEATURES ....................................P.2
BEFORE USE ................................P.2
Contents of Package...........................P.2
Part Names .........................................P.3
Loading the Battery .............................P.5
Fixing the Handle ................................P.5
INSTALLATION .............................P.6
Installation of the projector and Screen.....P.6
Angle Adjustment ................................P.6
Cabling ................................................P.7
Power Connection...............................P.8
Example of System Setup...................P.8
Plug & Play..........................................P.8
OPERATIONS................................P.9
Switching the Power Supply ON/OFF ....P.9
Basic Operation.................................P.10
Setup Menu.......................................P.12
Input Menu ........................................P.13
Image Menu ......................................P.14
Options Menu....................................P.15
No Signal Menu.................................P.16
MAINTENANCE...........................P.17
Lamp .................................................P.17
Air Filter Maintenance .......................P.19
Other Maintenance............................P.19
TROUBLESHOOTING.................P.20
OSD Message...................................P.20
Indicators Message ...........................P.21
Symptom ...........................................P.22
SPECIFICATIONS .......................P.23
WARRANTY AND AFTER-SERVICE...P.24
Tables:
Table 1. Installation Reference .............P.6
Table 2. Basic Operations...................P.10
Table 3. Setup Menu...........................P.12
Table 4. Input Menu ............................P.13
Table 5. Image Menu ..........................P.14
Table 6. Options Menu........................P.15
Table 7. No Signal Menu.....................P.16
Table 8. OSD Message.......................P.20
Table 9. Indicator Message.................P.21
Table 10. Symptom .............................P.22
Table 11. Specifications ......................P.23
For "TECHNICAL" and "REGULATORY
NOTICE", see the end of this manual.
ENGLISH-1
