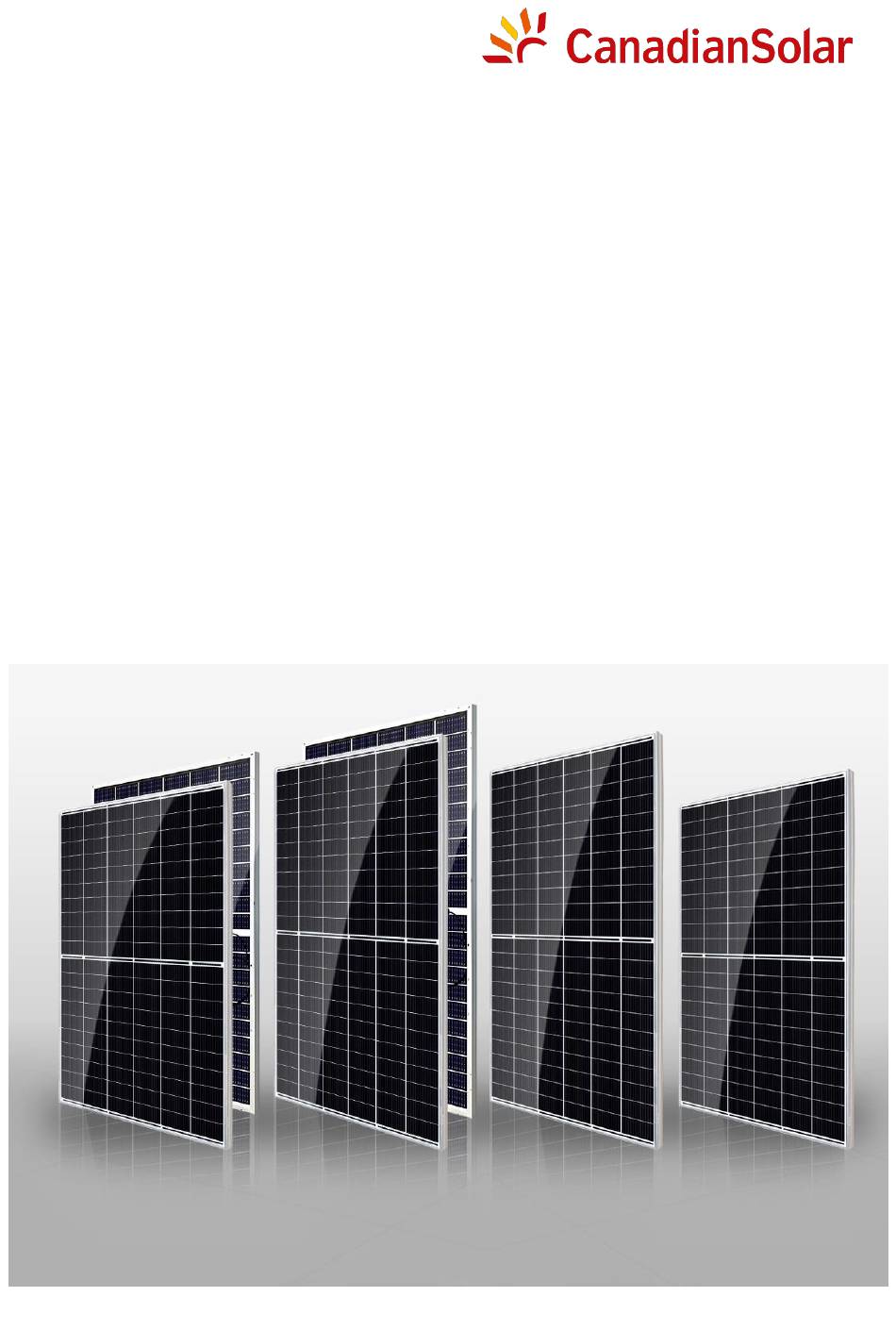

- Page 1 LEADING THE NEW ERA OF 600W+ MODULES CANADIAN SOLAR HiKu7 & BiHiKu7 UNPACKING INSTRUCTIONS HiKu7 & BiHiKu7 – UP TO 670 W...
- Page 2 A or B shown as below, or other plans which ensure modules safe . × Plan A Plan B √ √ 2) For all kinds of projects: it is recommended to strictly abide the unpacking steps as follows. May 2022. All rights reserved. V3.0_EN Canadian Solar Inc.
- Page 3 Step Place pallets on flat ground CS7N & CS7L modules are packed vertically using an innovative packaging system. Please place pallets on flat ground. The inclination of the ground should not exceed 4°. × √ Inclination＞4° Flat ground Unpack with anti-tipping bracket when the inclination is 0°＜Angle ≤ 4 ° Please place the pallets in the right direction (shown as below) and use an anti-tipping system to ensure the safety of the modules.
- Page 4 Appendix Step Simple anti-tipping beams making process Two wooden beams are needed to assemble the overturning protection. After carefully unpacking the first two pallets on a flat ground, two wooden brackets/beams will remain. 2 wooden beams 2 pallets of modules Assembly process: One of the leftover wooden 2 wooden beams...
- Page 5 Step Tear off the box shrink-wrap film Tear off all the shrink-wrap film covering the box Attention： • Please wear gloves to prevent injuries. • Please remove the shrink-wrap film with care and avoid pulling with excessive force. • Unpacking operation shall not be carried out over wind force 6 (Strong Breeze, 10.8-13.8 m/s).
- Page 6 Step Remove the upper wooden beams and box top cover The wooden edge protection is divided into two parts: upper and lower. Please remove the upper wood edge protection, keep the lower wood edge protection, and then remove the top cardboard box cover.
- Page 7 Step Remove the inner packing straps Cut off all straps inside the package, including the bottom belt hidden by the box. Do NOT remove the 2 straps on the outside of the packaging. Attention： • Please wear gloves to prevent injuries. •...
- Page 8 Step Take out the modules: one by one Two workers are required to take modules out of the box. When handling modules always use both hands. × Attention: • Please wear gloves to prevent injuries. • It is recommended that two workers take out the modules from both sides of the packaging at the same time.
- Page 9 Step Take out the modules: one by one If the whole package cannot be completed installation till end of the day, the remaining modules can be temporarily placed in the following ways: Two wooden pallets can be jointed as below, and carton can be padded above. Place the modules horizontally on the pallets.
-
Page 10: Learn More
• If the customer does not unpack the module according to the steps specified in this manual, we shall not assume any responsibility for the personal and property damage. Damaged module Damaged package LEARN MORE Scan to see how HiKu7 and BiHiKu7 modules are made and tested on YouTube Facebook Instagram LinkedIn...
