Suspension bolts
(1)Select final location and installation direction
of the indoor unit paying careful attention to
the space for the piping, wiring and maintenance.
(2)Using suspendion bolts to install the indootr
unit.Check the celing whether is strong enough to
support the indoor unit.Plase reinforce the ceiling
before installation if it is not safe.
(3)Install the indoor unit 2.5 meters higher from
the floor level,when exposed outdoor.
(4)Strainer(Field Supply)must be installed in
the pipeline.Make sure the the outdoor air
through the strainer.
Ceiling
Anchor Bolt
Long Nut or Thread Take-Up
Suspension Bolts
Indoor Unit
520
16.0
20.0
620
6
Air Inlet
Air Outlet

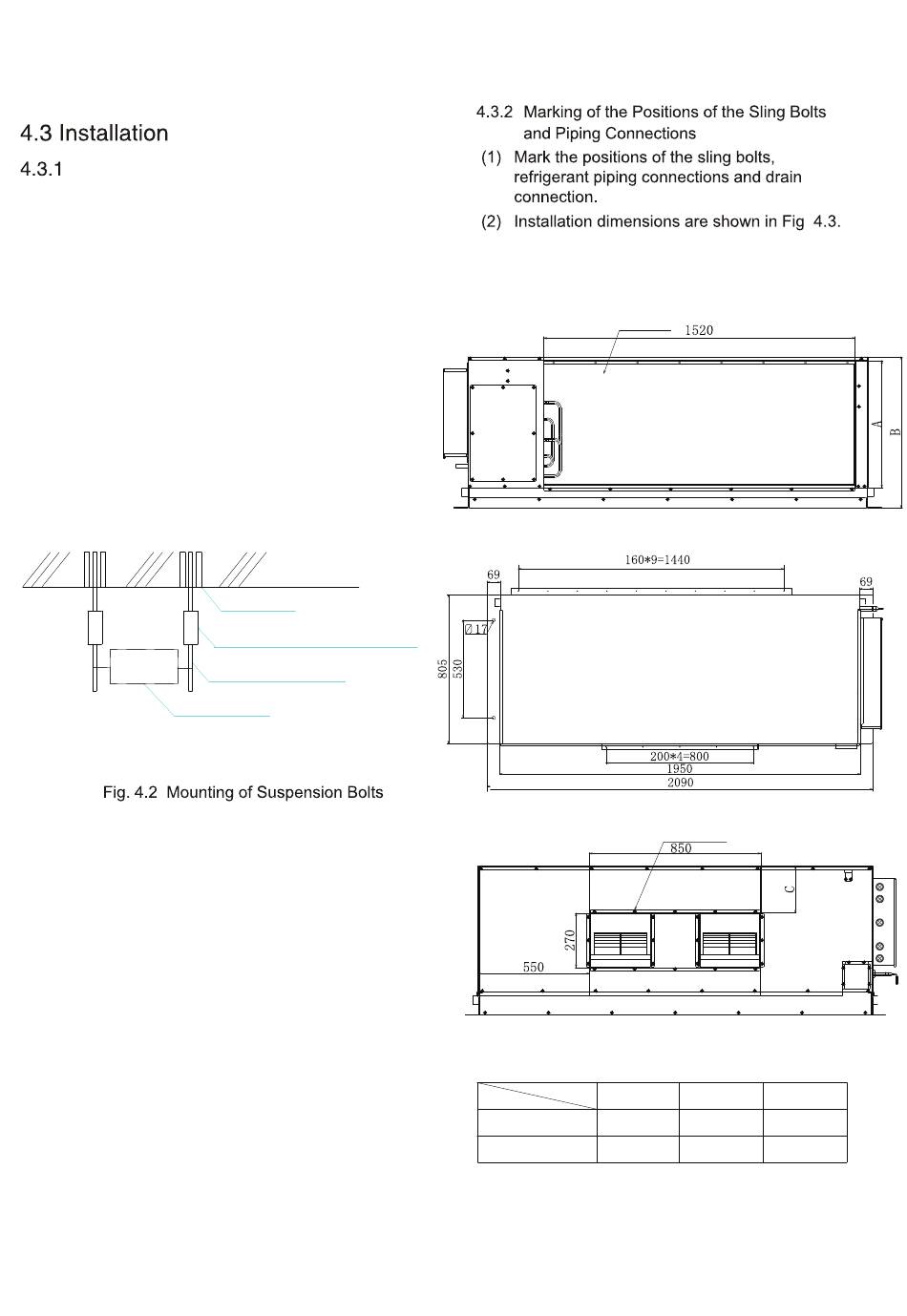

Fig4.3 Sling Bolts
A
B
635
735
(unit:mm)
C
130
230
