Pre-checks
Name of This Product
Safety regulations require the product's name to be
registered. In some regions where this product is sold, the
following name may be registered instead.
• F713300
Checking before Installation
• Install this equipment after installing the MF Professional
Puncher Attachment to the host machine
(iR-ADV 8505/8595/8585 series only).
• Illustrations of imagePRESS C10000VP/8000VP series
are used in this procedure, but the contents and
procedure are the same.
• When installing a Professional Puncher, purchase a
Punch Die which is sold separately in advance.
• Prepare two wrenches (10mm and 24mm) to be used for
height adjustment. Or, the wrench included in the
package of the Finisher can be used.
• Before installing this equipment, check the firmware
version of the host machine.If the version is old, upgrade
the version using the service support tool( imagePRESS
C10000VP/8000VP series only).
• Do not connect the customer's Network Cable to the port
where the connection prohibition label is affixed.
Check When Connecting the
Power Plug to an Outlet
1. When connecting the power plug of this equipment
to an outlet, be sure to use an outlet of a system
different from that of the host machine.
2. Be sure to install this equipment near an outlet so
that the power plug can be disconnected right away
in case of emergency, and do not put anything
around the power plug.
Points to Note When Moving
This Equipment
When moving this equipment after having unpacked it, be
careful by placing a plate, etc. on areas with steps to prevent
the casters from hitting those steps. If the casters hit a step,
the casters or the base plate may be deformed.
閲 FT2-0208-030_20160510.pdf
4

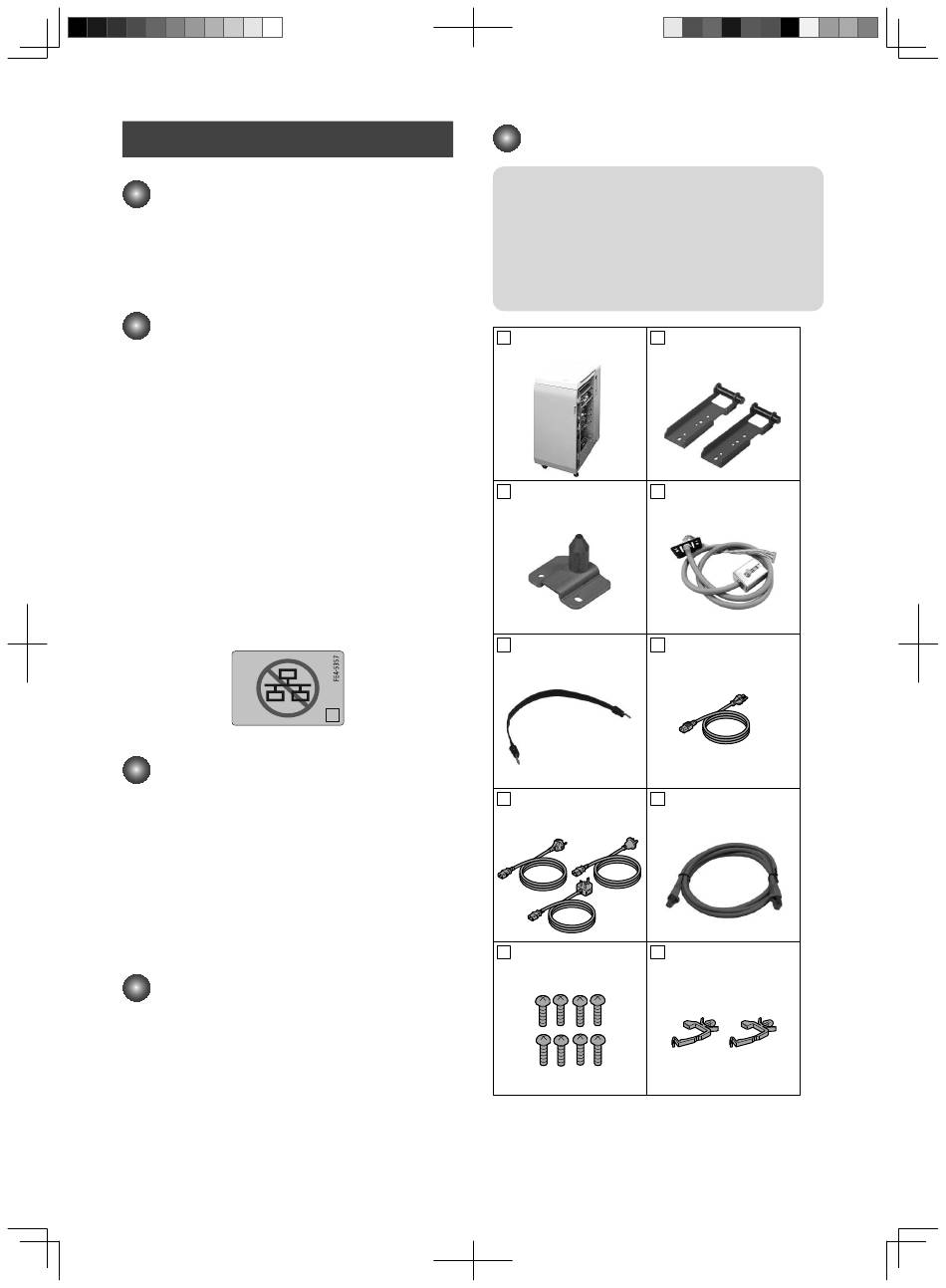

Checking the Contents
NOTE:
• [4] ：Not used when connecting a LAN
communication model. (the installation procedure is
described in the Installation Procedure for the
downstream equipment.)
• [7] ：Use the appropriate Power Cord according to
the country/region, and bring back the remaining
Power Cords.
[1] Professional
Puncher X 1
[3] Positioning Pin X 1
[5] Shunt Cable X 1
[7] Power Cord (For
Europe, Asia/Oceania
models only) X 3
[9] Screw
(Binding; M4x10) X 8
4
1. Installation
[2] Latch Plate X 2
[4] Interface Cable X 1
[6] Power Cord
(For USA model only) X 1
[8] LAN Cable X 1
[10] Wire Saddle X 2
