Quick Guide
1 Product description

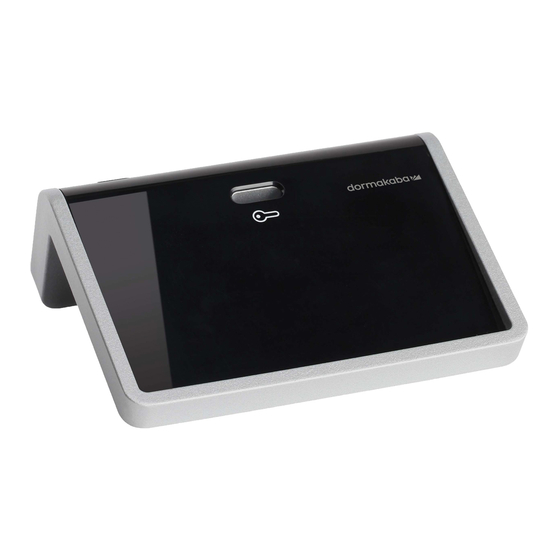

1.1 Kaba desktop reader 91 08 MRD
Tis quick guide describes the
Kaba desktop reader 91 08 type 91 08-K5 SM-4500-M
The Kaba desktop reader 91 08 is suitable for reading
and writing on LEGIC and MIFARE data carriers in terms
of cards and keys.
The desktop reader is connected to the PC via a USB
port. The device has a unique identification.
1.2 Main features
• Supported RFID standards:
LEGIC RF standard (prime)
LEGIC advant ISO-15693
LEGIC advant ISO-14443A
Other ISO 15693 (read only UID)
Other ISO 14443A (read only UID)
• Supported operating systems:
Windows 7 + Windows 7 x64
Windows Vista, x86 + x64
Windows XP, x86 + x64
Windows Server 2003, x86 + x64
Windows Server 2008, x86 + x64
Windows Server 2008 Release 2, x64
• Driver certified by Microsoft
1.3 Technical data
• Interface: USB V2.0 low speed
• Power supply: 5 V from USB
• Current consumption: max. 200 mA
• Dimensions: 107 x 45 x 90 mm
• Weight: 105 g
• Ambient temperature: 0 – 40
• Protection class according to
IEC 60529: IP40
1.4 Scope of supply
• Kaba desktop reader 91 08 with USB
connecting cable, length 1.5 m
• CD-ROM with driver software
• This quick guide
Kaba desktop reader 91 08 MRD
2 Installation
2.1 Installing the driver software
Insert the CD-ROM included in the scope of delivery
into the computer drive.
The directory "USB-Drivers/ Kaba FTDI Driver Package"
contains the required USB port drivers.
Please select the relevant driver for the used system.
Start setup by double clicking the relevant icon.
Press "Next" to start the installation.
C
O
The drivers are being installed.
04044181 - 06/2015
NOTICE!
Install the driver software first, then
connect the device to the PC!
• 32-Bit systems: dpinst32.exe
• 64-Bit systems: dpinst64.exe
1/3
