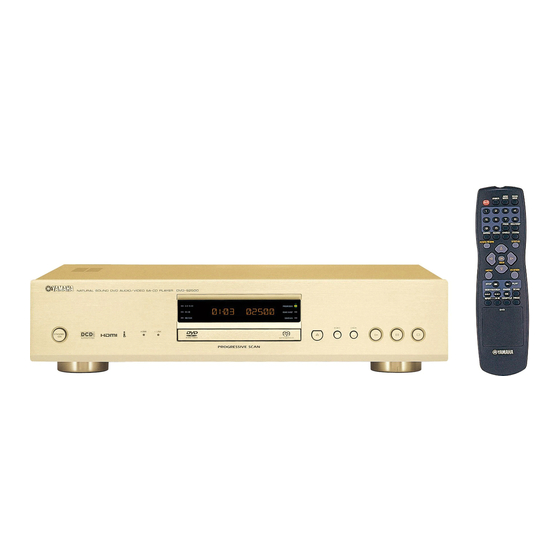

Yamaha DVD-S2500 Quick Start Manual

OneHome
Manufacturer:
Model Number(s):
Comments:
Document Revision Date:
O S
VERVIEW AND UPPORTED
The DVD players include an RS-232 connection which is used to connect to the OneHome system and
provide communications, enabling reliable control of the DVD player.
T DVD P
HESE LAYERS SUPPORT THE FOLLOWING FEATURES
Basic Transport Control: Play, stop, etc.
I O
NSTALLATION VERVIEW
1. During the rough-in phase install the necessary power and A/V cabling for the DVD player.
2. Also during the rough-in phase, run a Cat5 wire from the location of the DVD player back to the
Network Assembly of the OneHome system to provide the serial connection needed to control the
DVD player. Refer to the RS-232 Connection Options Integration Note for other serial connection
options.
3. Install the DVD player and other theater components.
4. Test the DVD player with the other theater components to ensure that the audio and video play
correctly.
5. Connect the OneHome system to the DVD player electrically. See the connection diagram for more
information.
6. Configure the OneHome system for the DVD player and confirm communication between the DVD
player and the HomeBrick.
7. Test the system by playing a DVD with the various transport controls.
HomeLogic LLC
Yamaha
DVD-S2500
5/2/2006
F
EATURES
100 Hoods Lane Marblehead, MA 09145
DVD Integration Note
:
Phone (781) 639-5155 Fax (781) 639-9677
