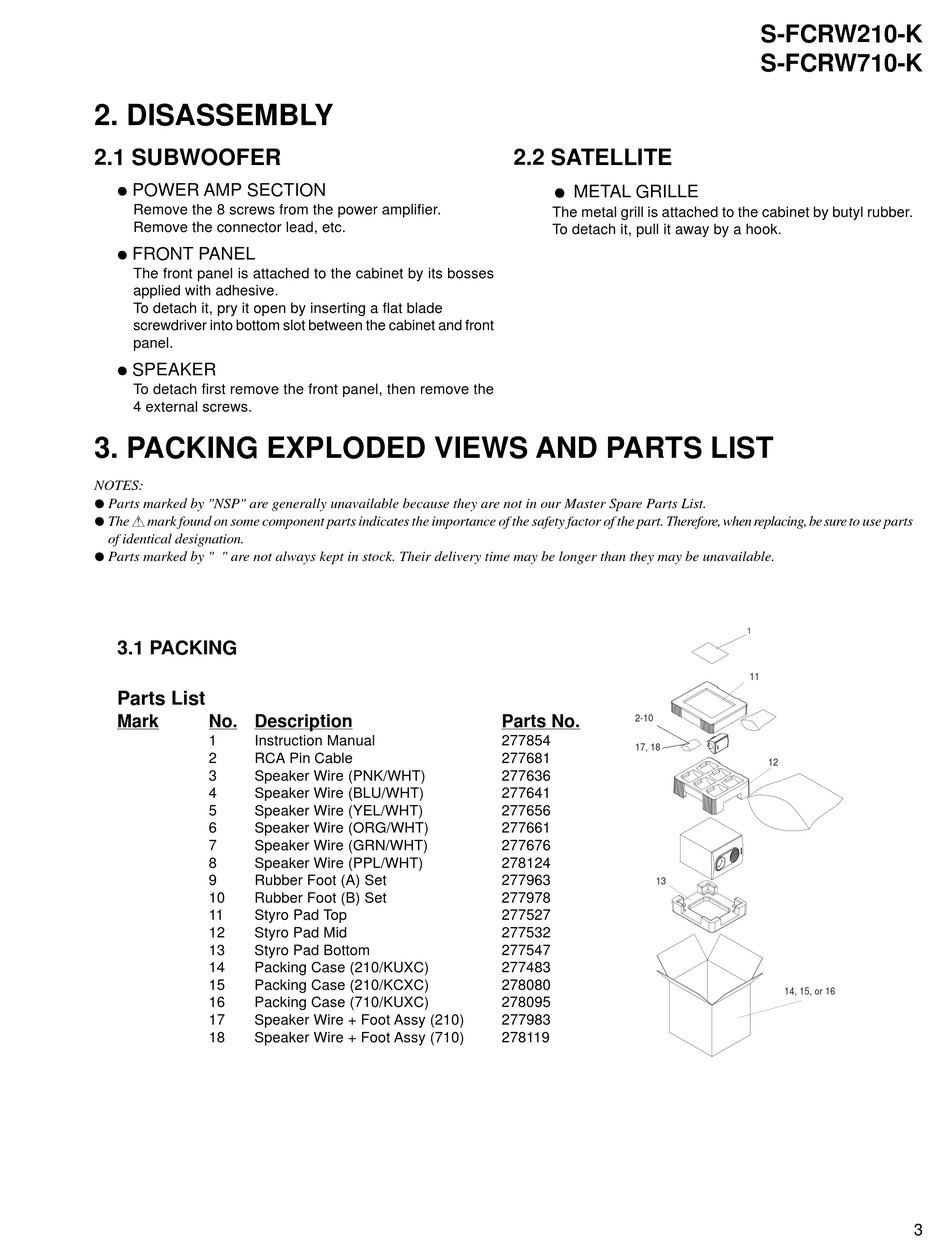

2. DISASSEMBLY

2.1 SUBWOOFER
¶
POWER AMP SECTION
Remove the 8 screws from the power amplifier.
Remove the connector lead, etc.
¶
FRONT PANEL
The front panel is attached to the cabinet by its bosses
applied with adhesive.
To detach it, pry it open by inserting a flat blade
screwdriver into bottom slot between the cabinet and front
panel.
¶
SPEAKER
To detach first remove the front panel, then remove the
4 external screws.

3. PACKING EXPLODED VIEWS AND PARTS LIST

NOTES:
¶ Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
¶ The
mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts
of identical designation.
¶ Parts marked by " " are not always kept in stock. Their delivery time may be longer than they may be unavailable.
3.1 PACKING
Parts List
Mark No. Description
1 Instruction Manual
2 RCA Pin Cable
3 Speaker Wire (PNK/WHT)
4 Speaker Wire (BLU/WHT)
5 Speaker Wire (YEL/WHT)
6 Speaker Wire (ORG/WHT)
7 Speaker Wire (GRN/WHT)
8 Speaker Wire (PPL/WHT)
9 Rubber Foot (A) Set
10 Rubber Foot (B) Set
11 Styro Pad Top
12 Styro Pad Mid
13 Styro Pad Bottom
14 Packing Case (210/KUXC)
15 Packing Case (210/KCXC)
16 Packing Case (710/KUXC)
17 Speaker Wire + Foot Assy (210)
18 Speaker Wire + Foot Assy (710)
2.2 SATELLITE
¶ ¶ ¶ ¶ ¶
METAL GRILLE
The metal grill is attached to the cabinet by butyl rubber.
To detach it, pull it away by a hook.
Parts No. 2-10
277854
17, 18
277681
277636
277641
277656
277661
277676
278124
277963
13
277978
277527
277532
277547
277483
278080
278095
277983
278119
S-FCRW210-K
S-FCRW710-K
1
11
12
14, 15, or 16
3
