Summary of Contents for Haicom HI-FLMFA

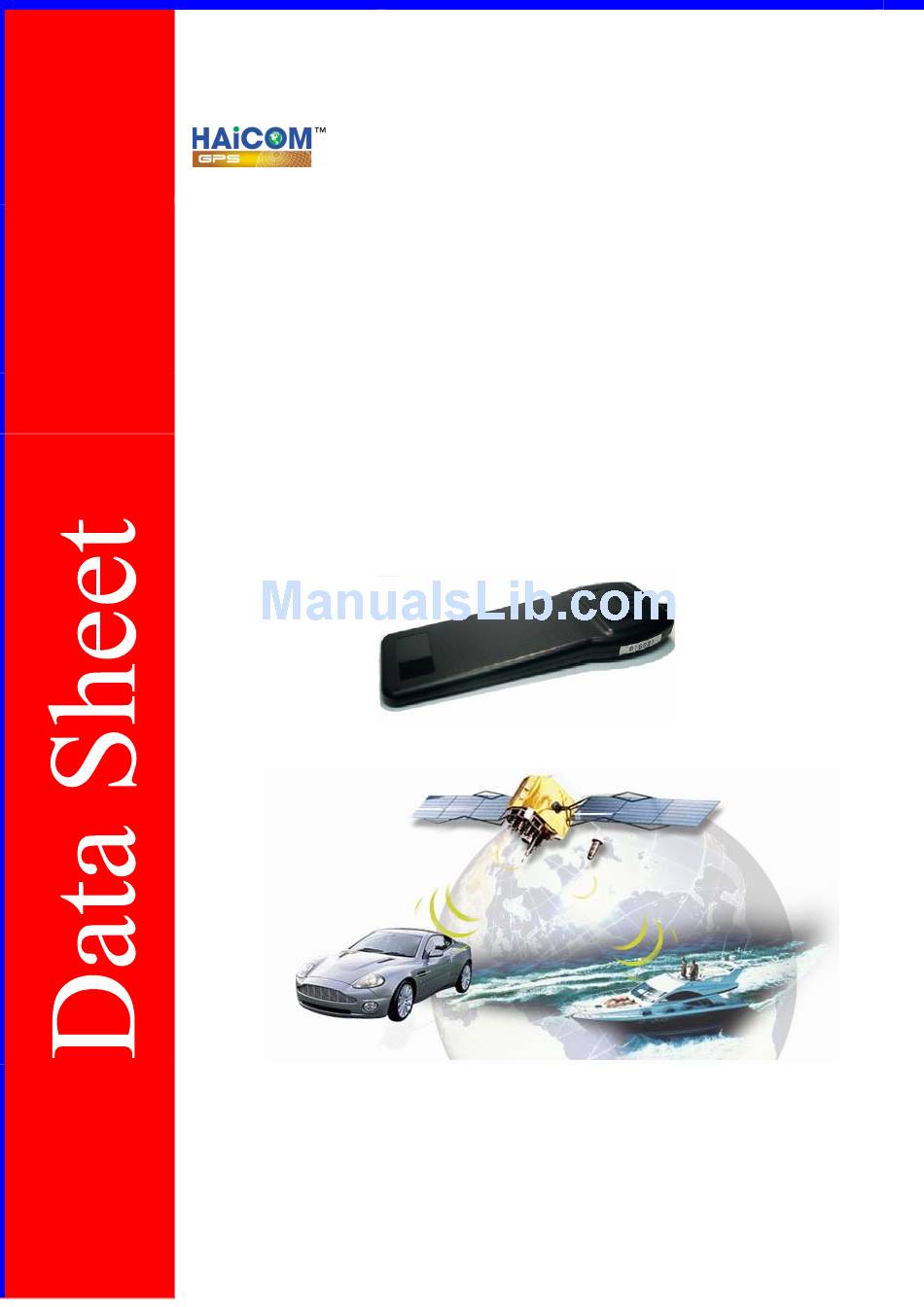

- Page 1 Haicom Electronics CORP. FLMTA/FLMFA GPS/Cellular/Wi-Fi Antenna 3F-11, 130, Jian-Kang Rd., Chung Ho, Taiwan, R.O.C. Tel: 886-2-32349610 Fax: 886-2-82211522 E-Mail: sales@haicom.com.tw www.haicom.com.tw...
-
Page 2: Table Of Contents
Electrical Specification ... 2 Electrical Date... 2 Mechanical Specification... 2 Mechanical Data ... 2 Dimensions ... 3 Connectors ... 3 Installation Location ... 4 RF Cable ... 4 RG-174/U... 4 Environmental Specification... 5 Ordering Information ... 5 Model NO..5 Housing Type ... -
Page 3: Electrical Specification
Electrical Specification Electrical Date GPS Active Antenna: Patch Antenna Frequency VSWR Bandwidth Axial Ratio Impedance Peak Gain Gain Coverage Polarization Amplifier Module Amplifier Gain without cable 27dB Typical Cellular Antenna: Frequency Peak Gain VSWR 2.0：1 Impedance 50Ω Pattern Type Omni-direction... -
Page 4: Dimensions
Dimensions Cable Length GPS Connector Cellular Connector Connectors SMA Plug(MB) SMA Jack(FB) SMC Plug(MH) MCX Plug(ME) MMCX Jack(FF) MMCX R/A Plug(MT) ＊Please see 4.3,if you need other connectors. GT5 Jack(FM) Cable Length FLMTA Material:ABS Colar:Black Unit: mm UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETER TOLERANCES: ±... -
Page 5: Installation Location
Installation Location 2.5 RF Cable RG-174/U Structure： Conductor Bare Strand Copper Wire XLPE (Cross-Linked Polyethylene) AWG Construction Diameter Thickness approx. 7 / 0.16A 0.40 mm 0.48 mm Characteristics： Items Rating Dielectric Strength Insulation Resistance Characteristic Impedance ＊ If you need other cables, please see 4.4. DOUBLE STICK TAPE VELCRO TAPE Insulation... -
Page 6: Environmental Specification
Environmental Specification Items Working Temperature Storage Temperature Humidity Ordering Information Item NO. 4.1 Model NO. 4.2 Housing Type 4.3 Connector Type Model NO. Model NO. FLMTA FLMFA Housing Type Specification Black ＊ ”S” means ROSH, please see appendix 1 Connector Type Specification (GPS Connector + Cellular Connector ) SMA plug + TNC plug... -
Page 7: Cable Type
(GPS Connector + Cellular Connector + Wi-Fi Connector ) SMA plug + SMA plug + SMA plug FAKRA SMB plug(Blue)+FAKRA SMB plug(Bordeaux)+FAKRA SMB plug(Blue&Gray) FAKRA SMB plug(Blue)+FAKRA SMB plug(Bordeaux)+ FAKRA SMB plug(Black) TNC R/P plug + TNC plug + TNC plug SMA plug + SMA plug + MMCX plug SMA plug + BNC plug + TNC R/P plug SMA R/A plug + SMA R/A plug + SMA R/A plug... -
Page 8: Label Type
Label Type Specification Without Label ACC Label Customer Label Package Type Specification Standard Non-Standard Item NO.:xxxxx-sxxxxxxxxx Label(A) Item NO.:xxxxx-sxxxxxxxxx Standard Page 7 of 11... -
Page 9: Appendix
Appendix Appendix 1：FLMTA/FLMFA ROSH Report Component Original Report No. Report refer to ET94O-02-013 SHEC0051237898-1 Patch antenna SHEC0050719293-1 GZ050606340EC-2.1 GZ050606340EC-2.2 CE/2005/72610 PCB SMT CE/2004/B2398 CE/2005/63784 CE/2005/63784A ET94O-02-013 Filter SH304686/CHEM Transistor CE/2004/83087 Capacitor CE/2005/21030 KA/2005/70988 Resistor KA/2005/70978 KA/2005/70989 KA/2005/11024 KA/2005/11027 Connector KA/2005/11025... -
Page 10: Appendix 2：Gain Pattern And Vswr
Appendix 2：Gain Pattern and VSWR Test Equipment：NSI Spherical near-field measurement system HP8722D Network analyzer Test Voltage : 5V Cable length: 5m Cable loss≒6dB Cellular(824~960MHz 1850~1990MHz) VSWR: Gain Pattern: Cable length: 24cm Page 9 of 11 Cable loss≒1dB... - Page 11 Gain Pattern: Cable length: 24cm Cable loss≒1dB Wi-Fi(2.4~2.4835GHz) VSWR: Gain Pattern: Cable length: 24cm Page 10 of 11 Cable loss≒1dB...
- Page 12 Patch Antenna simulation FLMTA/FLMFA Antenna simulation Frequency: 1.575GHz Frequency: 860MHz Page 11 of 11...
