Bosch EL800A User Manual

IMPORTANT NOTICE
Please read this user manual carefully. It contains important information
on the Smart Door Lock and maintenance.
Make sure that the mechanical key is kept in a safe place outdoors, i.e.
inside your car, office etc.
Do not expose the lock to rain, sunlight and outdoor environments.
Do not try to repair/disassemble the lock to avoid unnecessary loss.
Do not hit the lock with any hard objects.
Make sure that the door is properly locked when you are going out.
Do not use water or any chemical substances such as oil or benzene to
clean the lock. This will result in short circuit, ageing and/or paint
stripping.
Make sure to change your PIN Code regularly.
Do not use rechargeable batteries for the lock. This product is only
compatible with alkaline batteries.
The virtual PIN Code is up to 32 digits. E.g. Actual PIN Code + **** or **** +
Actual PIN Code (Do not key in garbled character before or after the virtual
PIN Code).
If the touch screen is out of order, try to restart the device with the
emergency power supply below, which is connected to the Micro-USB.
When using the key to open the lock, please turn the key back to its
original position before removing it.
Please follow the above instructions to avoid any injuries and/or damages
on the lock.
Do not put any flammable material such as gas, paint, gasoline,
etc, near the smart lock to avoid explosion and fire, including
explosive materials such as alcohol, gasoline, etc.
We are not responsible for any damage or property loss resulting
from improper installation, readjustment, use and/or repair by
user or third parties.

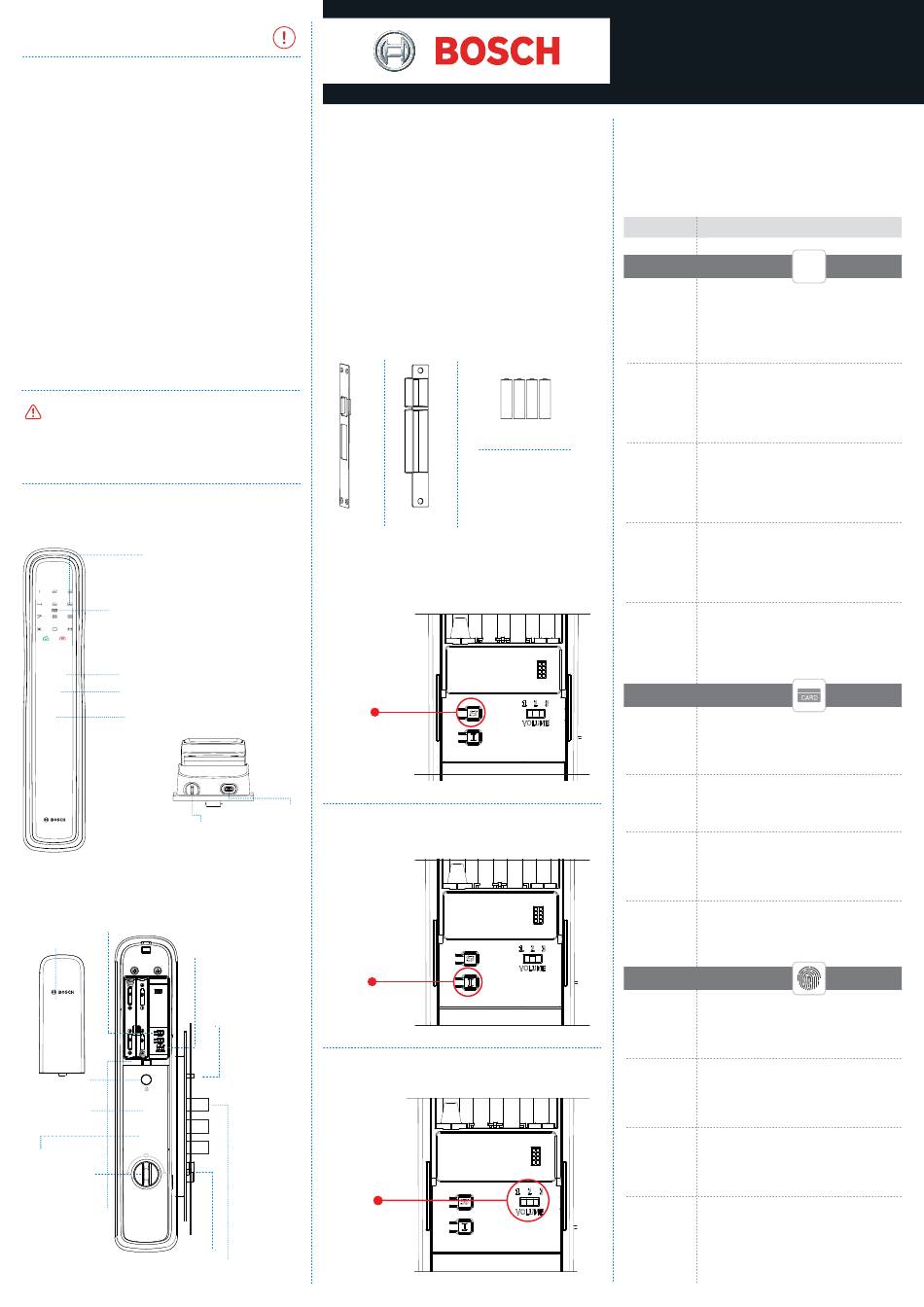

PRODUCT INTRODUCTION
OUTER BODY PARTS
Smart Number Pad
Card Reader
Speaker
Handle (Exterior)
Fingerprint Reading Panel (Interior)
Mechanical Key
INNER BODY PARTS AND LOCK CASE
S Switch - Short press for system menu /
Long press for normal mode
Battery Cover
Child's Lock
Unlock Key (Inside)
Inner Body Handle
Emergency Unlock
Knob
I Switch - Short press to
activate lock / Long press
for default settings
Two-Way
Bolt
SPECIFICATIONS
Outer Lock Size: 20(D)x80(W)x400(H)mm
Include Handle
Operating Temperature: -25° C ~+55° C
Operating Humidity: 25~93% RH, non-coolant
Unlock PIN Code Memory: 100 sets
Unlock Fingerprint Memory: 100 sets
Unlock Card Memory: 100 sets
Supports Mechanical Key unlocking
Supports long-distance unlocking
component
Battery: 1.5VAA (LR6) alkaline batteries X4 (Operating Voltage: 4.5V~6V)
NAME OF PARTS
Strike Plate
HOW TO USE
S Switch
Short press for system menu / Long press for normal mode
S Switch
Emergency Power
Port
I Switch
Short press to enforce lock / Long press for default setting
Volume Control
I Switch
Sensor Bolt
Volume Control
Choose 3 levels of volume
Volume Control
Main Bolt
: 65(D)x80(W)x400(H)mm
(optional) with purchase of online
AA Alkaline Batteries
• User Manual
• Installation Guide
• Parts Pack
• 2 Card Keys
• 2 Mechanical Keys
• 1 Smart Lock
Strike Box
USER MANUAL
BOSCH SMART LOCK
EL800A
INITIALISATION AND RESTORE PROGRAM
Initialise User PIN Code: 1234567890
New changed password for 6 digits. "*" key as back. "#" key as confirm.
Master information included master PIN code and master fingerprint.
Restore Default Setting: Long press "I" switch for 5 seconds until you
hear the voice guide.
OPERATION
DESCRIPTION
ADD USER
Add Master Press S switch, enter initial master PIN code
PIN Code when prompted by the voice guide (if it has been
changed, enter the changed master PIN code)
and press # followed by 1, 1. Enter the new PIN
code, and press # to confirm. Re-enter the new
PIN code and press # to save.
Add Normal Press S switch, enter master PIN code when
PIN Code prompted by the voice guide, and press #
followed by 1, 2. Enter user code: 002~090, and
press # . Enter the normal user PIN code, and
press # to confirm. Re-enter the PIN code and
press # to save.
Add One-Time Press S switch, enter master PIN code when
PIN Code prompted by the voice guide, and press #
followed by 1, 3. Enter user code: 091~0100, and
press # . Enter the One-Time PIN code, and press
# to confirm. Re-enter the One-Time PIN code
and press # to save.
Delete Single Press S switch, enter master PIN code when
PIN Code prompted by the voice guide, and press #
followed by 1, 4. Enter user code: 002~100 and
press #. Successfully deleted.
Master PIN code cannot be deleted before the
default setting is restored.
Delete All Press S switch, enter master PIN code when
PIN Code prompted by the voice guide, and press # followed
by 1, 5, and press #. Successfully deleted.
Master PIN code cannot be deleted before the
default setting is restored.
ADD USER
Add Normal Press S switch, enter master PIN code when
Key Card prompted by the voice guide, and press #
followed by 2, 1. Enter user code: 101~190 and
press #. Successfully added.
Add One-Time Press S switch, enter master PIN code when
Key Card prompted by the voice guide, and press #
followed by 2, 2. Enter user code: 191~200 and
press #. Successfully added.
Delete Single Press S switch, enter master PIN code when
Key Card prompted by the voice guide, and press #
followed by 2, 3. Enter user code: 101~200 and
press # to confirm. Press # again. Successfully
deleted.
Delete All Press S switch, enter master PIN code when
Key Card prompted by the voice guide, and press #
followed by 2, 4 to confirm. Press # again.
Successfully deleted.
ADD USER
Add Master Press S switch, enter master PIN code when
Fingerprint prompted by the voice guide, and press #
followed by 3, 1. Enter your fingerprint 3 times.
Successfully added. Re-enter if fail.
Add Normal Press S switch, enter master PIN code when
Fingerprint prompted by the voice guide, and press #
followed by 3, 2. Enter user code: 202~290 and
press # to confirm. Enter your fingerprint 3 times.
Successfully added. Re-enter if fail.
Add SOS Press S switch, enter master PIN code when
Fingerprint prompted by the voice guide, and press #
followed by 3, 3. Enter user code: 291~300 and
press # to confirm. Enter your fingerprint 3 times.
Successfully added. Re-enter if fail.
Delete Single Press S switch, enter master PIN code when
Fingerprint prompted by the voice guide, and press #
followed by 3, 4. Enter user code: 202~300 and
press # to confirm. Press # again. Successfully
deleted.
Master fingerprint cannot be deleted before the
default setting is restored.
1 2 3
PIN CODE
4 5 6
7 8 9
KEY CARD
FINGERPRINT
