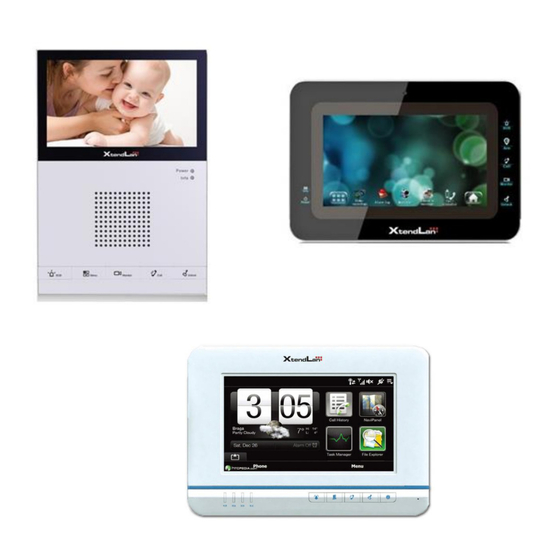

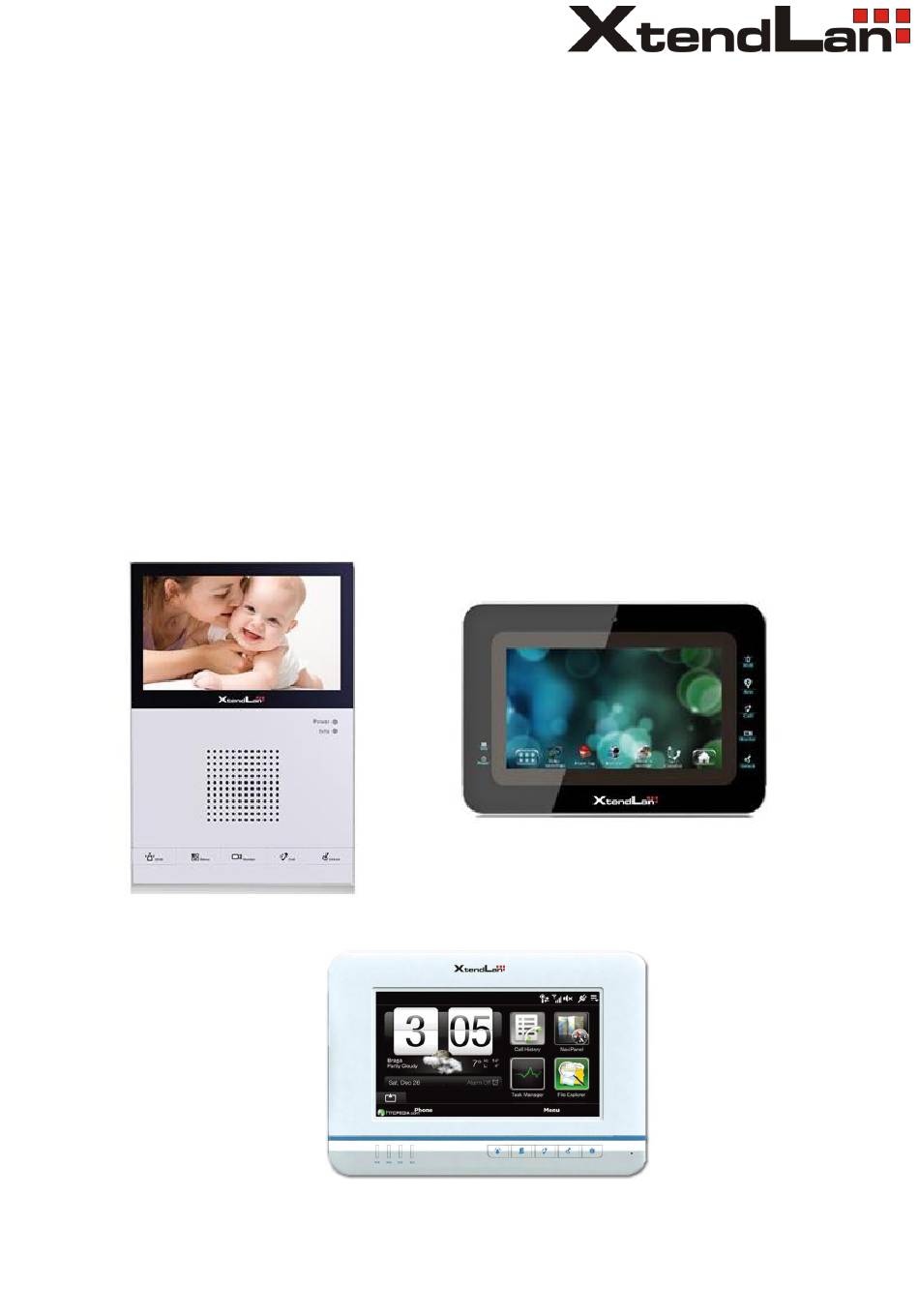

- Page 1 DPM-IP70xTMD Monitors for IP videodoor system User´s manual...
-
Page 2: Table Of Contents
Table of Contents Caution 3 Chapter 1 General Introduction .................. 3 1.1 roduct Appearance ....................3 1.2 Buttons ........................ 5 1.3 Indicator ....................... 5 Chapter 2 Basic Function Introduction ................ 6 2.1 Main Menu ....................... 6 2.2 Video Bidirectional Talk Function ................. 6 2.2.1 Bidirectional Talk Function with Management Center ........ -
Page 3: Caution
Caution All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. We are not liable for any problems caused by unauthorized modifications or attempted repair. -
Page 4: Buttons
1.2 Buttons Figure 1- 6 The buttons are illustrated in Figure 1- 6. Their descriptions are shown in Chart 1- 1. For different 7” digital VDPs, their button locations may vary, but the function of buttons with same label is identical. Name Description Emergent calling management center... -
Page 5: Main Menu
2.1 Main Menu This product main menu consists of four menus, as video bidirectional talk, alarm, info search, system setup: in main menu, upper-left corner is network connection, main door station connection, DND setup and other status info, middle portion is current time(month, day, week and time), lower-right corner is arm/disarm button which allows selection between arm and disarm. -
Page 6: Call Record Function
2.2.5 Call Record Function Under “video bidirectional talk” status click “call record”, you will see missed calls, received calls, and dialed calls, which include information of caller and time. You may go to different pages of records. You also may call, save, delete or delete all callers. 2.2.6 Contacts Under “video bidirectional talk”... -
Page 7: Alarm Function
2.3 Alarm Function This product can be connected to up to 8 channels alarm with 1st channel as SOS button, 2nd channel as gas alarm, 3rd channel as smoke alarm while the remaining 5 channels can be flexibly set. Under sub-menu there is information of protection zone status, alarm records and mode setup. -
Page 8: System Setup Function
2.5 System Setup Function System setup function includes user setup, project setup, and product introduction. 2.5.1 User Setup User setup includes password setup, display setup, bidirectional talk setup, DND setup, restore default settings, a touch screen sound button plus touch screen clean button setup. 1. -
Page 9: Unlock Function
2.6 Unlock Function Under incoming call from door station, call with door station and VDP monitoring door station, press unlock button to remotely unlock door. 2.7 Arm/Disarm Function Under arm/disarm status, click arm button at the lower right corner of main menu, and then select 1 from the 4 modes available (away, in, sleep and user mode). -
Page 10: Chapter 4 Device Interface Instruction
Screen Dimension 7 inch TFT full real color Operating Mode Mechanical button (SOS, arm/menu, call, monitor, unlock), Input touch screen technology Alarm Alarm Input Support 8 channels alarm input Network Ethernet 10M/100Mbps self fit Networking TCP/IP Protocol Specifications Power DC 10~15V or AV direct feed Power Standby ≤1.5W ;... - Page 11 Figure 4- 1 Among 7” semi-digital VDP in different models, locations of interface are slightly different, but their functions are identical. Please see Chart 4- 1. Name Description Alarm Interface 8-ch alarm, please see tag for details May directly connect to network cable or via corridor Communication Port exchanger Handset Interface...
-
Page 12: Chapter 5 Device Installation Guide
Chapter 5 Device Installation Guide Figure 5- 1 (1) Try to avoid exposing VDP to bad environment, such as condensation, high temperature, greasy dirt, dust, corrosion, direct sunlight and etc. (2) If there is abnormality after you plug in, you should unplug it immediately and unplug the device from power supply.
