Ubisense AngleID Quick Start Manual

AngleID™ Quick Start Guide AngleID™ Quick Start Guide
AngleID™ Quick Start Guide AngleID™ Quick Start Guide
Product Overview Product Overview Product Overview Product Overview
AngleID is a completely new way of doing accurate long-range
zone detection and tracking, using RFID. The AngleID reader
detects ultra-wideband pulses from tags to precisely determine
the angle between a tag and reader and locates the tag in up
to eight different 3D zones simultaneously, reporting entry and
exit events from each zone to a connected control system.
AngleID has a number of uses in many industries including
manufacturing, logistics and transportation such as forklift and
AGV tracking, dock door management and wireless tool
management on production lines. You can control multiple
devices by using a single AngleID reader.
About this Guide
This guide explains how to set up your AngleID reader and
configure the detection zone for a tag. This guide assumes that
you are familiar with operating and connecting computer
systems and networks.

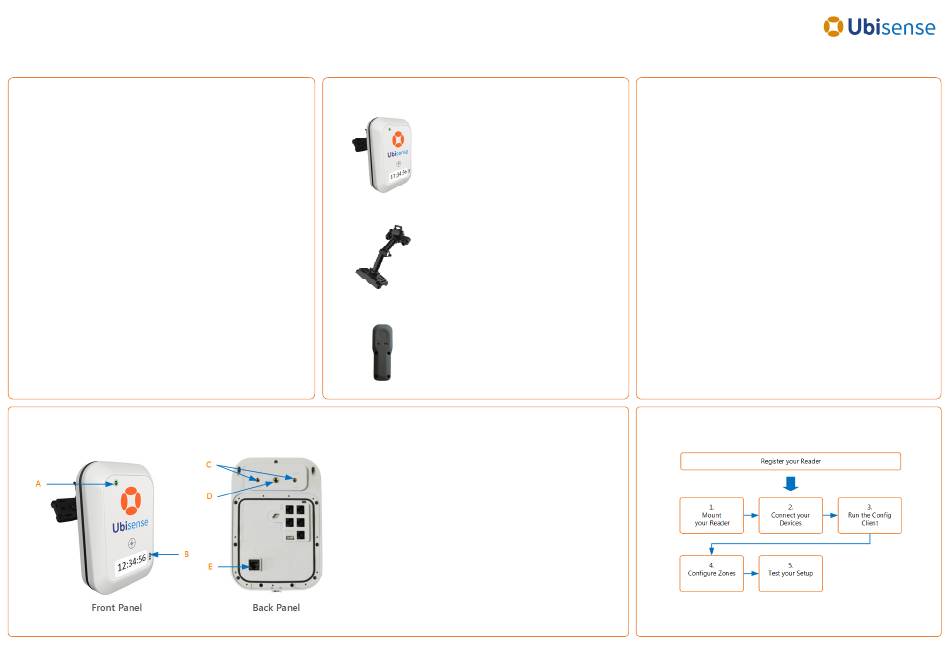

Reader Features Reader Features Reader Features Reader Features
What's in the Box? What's in the Box? What's in the Box? What's in the Box?

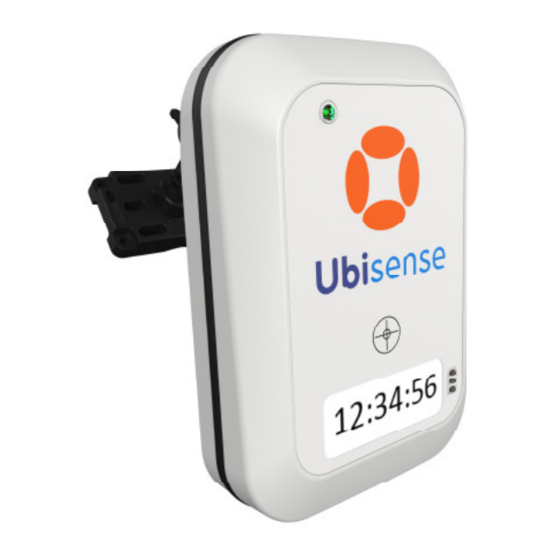

AngleID Reader
Mount your reader in the area
tag must be tracked.
Mounting Bracket
Use this bracket to mount your reader.
The bracket contains an Installation
Support Kit Instruction Sheet that
explains how to fix your reader to a
suitable surface.
Setup Tag
Use the supplied tag to configure the
zones of your AngleID setup.
A Status LED. Turns solid green after booting.
B Network Status LEDs.
Top LED (Red): If ON, the Ethernet link has been established.
Middle LED (Green): If ON, there is activity on the Ethernet link.
Bottom LED (Yellow): Shows the speed of the Ethernet link.
ON= 100 Mbps OFF= 10 Mbps.
C Mounting Bracket Securing Points.
D Safety Cable Securing Point.
For information about safety cables, see the Installation
Support Kit Instruction Sheet.
E Power Over Ethernet (PoE) Port.
Version 1.0
Before you Begin Before you Begin
Before you Begin Before you Begin
Register your Reader
where the
Register your AngleID reader at the URL provided in your
AngleID kit. The registration process activates your warranty
and then allows you to download:
• The AngleID Configuration Tool, which provides a
graphical user interface for configuring your reader.
The AngleID Product Key, which enables the
•
Configuration Tool to identify the reader that you have
purchased.
Ensure that you also have...
• A Power Over Ethernet (PoE) source to power-up your
reader.
• A Windows® configuration PC (with Administrator
privileges) to run the Configuration Tool.
• A network switch to connect the reader and your PC to
the same network.
• Cat5 (or higher) Ethernet cables for connecting devices.
Workflow Workflow for Setting up your Reader Workflow Workflow for Setting up your Reader for Setting up your Reader for Setting up your Reader
For information about these tasks, see Page 2 of this document.
1
