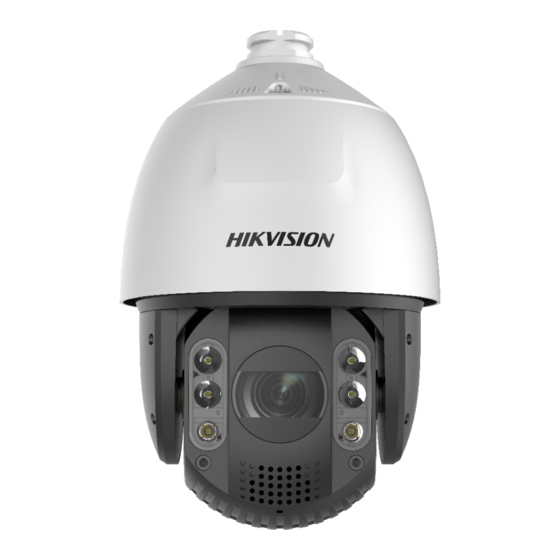

HIKVISION DS-2DE7A232IW-AEB User Manual

HIKVISION DS-2DE7A232IW-AEB User Manual

Network speed dome
Hide thumbs Also See for DS-2DE7A232IW-AEB:
Table of Contents

Advertisement

Quick Links

Network Speed Dome
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for HIKVISION DS-2DE7A232IW-AEB

  • Page 1 Network Speed Dome User Manual...
  • Page 2 With the philosophy of "Technology for the Good", Hikvision requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
  • Page 3 Network Speed Dome User Manual control, selecting a suitable network environment (the Internet or Intranet) where video products are connected, establishing and constantly optimizing network security. Video products have made great contributions to the improvement of social security around the ●...
  • Page 4 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 5 Network Speed Dome User Manual DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 6: Table Of Contents

    Network Speed Dome User Manual Contents Chapter 1 Overview ........................1 1.1 Product Introduction ......................1 1.2 Key Function .......................... 1 1.3 System Requirement ......................1 Chapter 2 Device Activation and Accessing ................. 3 2.1 Activate Device ........................3 2.1.1 Activate Device via Web Browser .................. 3 2.1.2 Activate via SADP ......................
  • Page 7 Network Speed Dome User Manual 4.3.1 Set One-Touch Patrol ....................18 4.4 Set Pattern Scan ........................18 4.5 Set Limit ..........................19 4.6 Set Initial Position ........................ 20 4.7 Set Scheduled Tasks ......................20 4.8 Set Park Action ........................20 4.8.1 Set One-Touch Park .....................
  • Page 8 Network Speed Dome User Manual Chapter 6 Video and Audio ....................... 30 6.1 Video Settings ........................30 6.1.1 Stream Type ........................ 30 6.1.2 Video Type ........................30 6.1.3 Resolution ........................30 6.1.4 Bitrate Type and Max. Bitrate ..................31 6.1.5 Video Quality ......................31 6.1.6 Frame Rate ........................
  • Page 9 Network Speed Dome User Manual 7.1 Storage Settings ........................42 7.1.1 Memory Card ......................42 7.1.2 Set FTP ........................44 7.1.3 Set NAS ........................45 7.1.4 eMMC Protection ......................46 7.1.5 Set Cloud Storage ......................46 7.2 Video Recording ........................47 7.2.1 Record Automatically ....................
  • Page 10 Network Speed Dome User Manual 8.2.8 Set Tracking Parameters ....................66 Chapter 9 Arming Schedule and Alarm Linkage ................. 67 9.1 Set Arming Schedule ......................67 9.2 Linkage Method Settings ...................... 67 9.2.1 Trigger Alarm Output ....................67 9.2.2 FTP/NAS/Memory Card Uploading ................68 9.2.3 Send Email ........................
  • Page 11 Network Speed Dome User Manual 10.8 Set ISUP ..........................81 10.9 Set Open Network Video Interface ..................81 10.10 Set Network Service ......................81 10.11 Set Alarm Server ......................82 10.12 TCP Acceleration ......................83 10.13 Traffic Shaping ........................83 10.14 Set SRTP ...........................
  • Page 12 Network Speed Dome User Manual 11.12.6 Set QoS ........................91 11.12.7 Set IEEE 802.1X ....................... 91 11.12.8 SSH .......................... 92 11.12.9 Control Timeout Settings ..................92 11.12.10 Certificate Management ..................92 11.12.11 User and Account ....................95 Appendix A. Device Command ....................97 Appendix B.
  • Page 13: Chapter 1 Overview

    Network Speed Dome User Manual Chapter 1 Overview 1.1 Product Introduction The Network Speed Dome is an integration of the HD zoom camera and the PT module, ideal for remote monitoring. The device is easy to install and operate. Through Ethernet control, the device is able to compress and transmit images to multiple users.
  • Page 14 Network Speed Dome User Manual Recommended Specifications Display 1024 × 768 resolution or higher Web Browser Internet Explorer 10 and above version, Apple Safari 12 and above version, Mozilla Firefox 52 and above version, Google Chrome 57 and above version.
  • Page 15: Chapter 2 Device Activation And Accessing

    Network Speed Dome User Manual Chapter 2 Device Activation and Accessing To protect the security and privacy of the user account and data, you should set a login password to activate the device when access the device via network. Note Refer to the user manual of the software client for the detailed information about the client software activation.
  • Page 16: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should belong to the same subnet.
  • Page 17: Access Device Via Web Browser

    Network Speed Dome User Manual 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP. 3) Input the admin password and click Modify to activate your IP address modification. 2.2 Access Device via Web Browser Before You Start Check the system requirement to confirm that the operating computer and web browser meets...
  • Page 18: Admin Password Recovery

    Network Speed Dome User Manual Operating System Web Browser Operation → Network Service to enable WebSocket or Websockets for normal view. Display and operation of certain functions are restricted. For example, Playback and Picture are not available. For detailed restricted function, refer to the actual device.
  • Page 19 Network Speed Dome User Manual Go to Configuration → System → Security → Security Service , and enable Enable Illegal Login Lock. Illegal Login Attempts and Locking Duration are configurable. Illegal Login Attempts When your login attempts with the wrong password reach the set times, the device is locked. Locking Duration The device releases the lock after the setting duration.
  • Page 20: Chapter 3 Smart Function

    Network Speed Dome User Manual Chapter 3 Smart Function 3.1 Allocate VCA Resource VCA resource offers you options to enable certain VCA functions according to actual needs. It helps allocate more resources to the desired functions. Steps 1. Go to Open Platform → VCA Resource . 2.
  • Page 21 Network Speed Dome User Manual 2. Check Enable. 3. Select a configuration mode. Normal One detection scene is allowed to set. The device captures face in the scene in set arming schedule. See Normal Mode Settings for details. Expert The device can patrol among the detection scenes and capture face images. Detection scenes and patrol schedule should be set in advance.
  • Page 22: Operate Manual Face Capture

    Network Speed Dome User Manual Normally, the PTZ control is automatically locked when you enter the configuration interface. You can manually resume the lock when the countdown is over. 2. Input Mounting Height of the device. 3. Set detection scenes and detection areas. 1) Select a detection scene.
  • Page 23: Overlay And Capture

    Network Speed Dome User Manual 3.3.3 Overlay and Capture Choose to configure capture parameters and the information you want to display on stream and picture. Display VCA Info. on Stream Display smart information on stream, including the target and rules information. Display Target Info.
  • Page 24 Network Speed Dome User Manual It refers to the quality of face that triggers capture and alarm. Higher value means that better quality should be met to trigger capture and alarm. Remove Duplicated Faces This function can filter out repeated captures of a face. Similarity Threshold for Duplicates Removing It is the similarity between the newly captured face and the picture in the duplicates removing library.
  • Page 25: Smart Display

    Network Speed Dome User Manual Face Filtering Face Filtering Time It means the time interval between the camera detecting a face and taking a capture action. If the detected face stays in the scene for less than the set filtering time, capture will not be triggered.
  • Page 26: Chapter 4 Ptz

    Network Speed Dome User Manual Chapter 4 PTZ PTZ is an abbreviation for pan, tilt, and zoom. It means the movement options of the camera. 4.1 PTZ Control In live view interface, you can use the PTZ control buttons to control the device panning, tilting, and zooming.
  • Page 27 Network Speed Dome User Manual Compatible The control speed is same as Keyboard Control Speed. Pedestrian Choose Pedestrian when you monitor the pedestrians. Non-motor Vehicle Choose Non-motor Vehicle when you monitor the non-motor vehicles. Motor Vehicle Choose Motor Vehicle when you monitor the motor vehicles.
  • Page 28: Set Preset

    Network Speed Dome User Manual Iris When the image is too dark, click the button to enlarge the iris. When the image is too bright, click the button to stop down the iris. 4.2 Set Preset A preset is a predefined image position. For the defined preset, you can call the preset No. to view the position.
  • Page 29: Set Patrol Scan

    Network Speed Dome User Manual Preset No. Function Preset No. Function Auto flip Alarm light off Back to origin Set manual limits Call patrol 1 Save manual limits Call patrol 2 Remote reboot Call patrol 3 Call OSD menu Call patrol 4 Stop a scan Day mode Start random scan...
  • Page 30: Set One-Touch Patrol

    Network Speed Dome User Manual It is the duration staying on one patrol point. Delete the presets in patrol. Adjust the preset order. Note A patrol can be configured with 32 presets at most, and 2 presets at least. 4. Click OK to finish a patrol setting. 5.
  • Page 31: Set Limit

    Network Speed Dome User Manual 2. Select one pattern scan path that needs to be set. 3. Click to start recording pattern scan. 4. Click PTZ control buttons as demands. Note Recording stops when the space for pattern scan is 0%. 5.
  • Page 32: Set Initial Position

    Network Speed Dome User Manual Result The device can only move within the set region after saving the settings. 4.6 Set Initial Position Initial position refers to the relative initial position of the device azimuth. You can set the initial position if you need to select one point in the scene as the base point.
  • Page 33: Set One-Touch Park

    Network Speed Dome User Manual Steps 1. Go to Configuration → PTZ → Park Action . 2. Check Enable Park Action. 3. Set Park Time: the inactive time before the device starts park action. 4. Select Action Type according to your needs. 5.
  • Page 34: Set Device Position

    Network Speed Dome User Manual Note Active zoom ratio is only supported for the PTZ channel. 6. Repeat the steps above to set other privacy masks. 7. Check Enable Privacy Masks. 4.10 Set Device Position Before You Start Go to Configuration → PTZ → Basic Settings → PTZ OSD to enable PT Status display. Use other direction indicating devices to find the North at the device location.
  • Page 35: Set Rapid Focus

    Network Speed Dome User Manual Steps 1. Go to Configuration → PTZ → Prioritize PTZ . 2. Set the priority signal and delayed time. Network The network signal controls the device with priority. RS-485 The RS-485 signal controls the device with priority. Delay It refers to the time interval of PTZ operation controlled by different signals.
  • Page 36 Network Speed Dome User Manual 9. Click Save.
  • Page 37: Chapter 5 Live View

    Network Speed Dome User Manual Chapter 5 Live View It introduces the live view parameters, function icons and transmission parameters settings. 5.1 Live View Parameters The supported functions vary depending on the model. 5.1.1 Start and Stop Live View Click Live View. Click to start live view.
  • Page 38: Select The Third-Party Plug-In

    Network Speed Dome User Manual 5.1.5 Select the Third-Party Plug-in When the live view cannot display via certain browsers, you can change the plug-in for live view according to the browser. Steps 1. Click Live View. 2. Click to select the plug-in. - When you access the device via Internet Explorer, you can select Webcomponents or QuickTime.
  • Page 39: Count Pixel

    Network Speed Dome User Manual 3. Click to disable this function. 5.1.9 Count Pixel It helps to get the height and width pixel of the selected region in the live view image. Steps 1. Click to enable the function. 2. Drag the mouse on the image to select a desired rectangle area. The width pixel and height pixel are displayed on the bottom of the live view image.
  • Page 40: Set Transmission Parameters

    Network Speed Dome User Manual 2. Select a target area in live image. - Left click on a point on live image: the point is relocated to the center of the live image. With no zooming in or out effect. - Hold and drag the mouse to a lower right position to frame an area on the live: the framed area is zoomed in and relocated to the center of the live image.
  • Page 41 Network Speed Dome User Manual Fluent The device takes the video fluency as the priority over teal-time. In poor network environment, the device cannot ensures video fluency even the fluency is enabled. Custom You can set the frame rate manually. In poor network environment, you can reduce the frame rate to get a fluent live view.
  • Page 42: Chapter 6 Video And Audio

    Network Speed Dome User Manual Chapter 6 Video and Audio This part introduces the configuration of video and audio related parameters. 6.1 Video Settings This part introduces the settings of video parameters, such as, stream type, video encoding, and resolution. Go to setting page: Configuration →...
  • Page 43: Bitrate Type And Max. Bitrate

    Network Speed Dome User Manual 6.1.4 Bitrate Type and Max. Bitrate Constant Bitrate It means that the stream is compressed and transmitted at a comparatively fixed bitrate. The compression speed is fast, but mosaic may occur on the image. Variable Bitrate It means that the device automatically adjust the bitrate under the set Max.
  • Page 44: Profile

    Network Speed Dome User Manual H.264+ H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, you can estimate the HDD consumption by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes. When H.264+ is enabled, Max.
  • Page 45: I-Frame Interval

    Network Speed Dome User Manual 6.1.9 I-Frame Interval I-frame interval defines the number of frames between 2 I-frames. In H.264 and H.265, an I-frame, or intra frame, is a self-contained frame that can be independently decoded without any reference to other images. An I-frame consumes more bits than other frames.
  • Page 46: Audio Output

    Network Speed Dome User Manual Audio Input Select MicIn for the built-in microphone, and LineIn for external audio pick-up device. Note MicIn is only supported by certain models. Input volume Adjust the volume of the audio input. 6.2.2 Audio Output You can output audio through built-in speaker or line out.
  • Page 47: Roi

    Network Speed Dome User Manual 6.4 ROI ROI (Region of Interest) encoding helps to discriminate the ROI and background information in video compression. The technology assigns more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused. 6.4.1 Set ROI ROI (Region of Interest) encoding helps to assign more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.
  • Page 48: Display Settings

    Network Speed Dome User Manual Steps 1. Go to Configuration → Video/Audio → Display Info. on Stream . 2. Check Enable Dual-VCA. 3. Click Save. 6.6 Display Settings It offers the parameter settings to adjust image features. Go to Configuration → Image → Display Settings . Click Default to restore settings.
  • Page 49 Network Speed Dome User Manual You can limit the changing ranges of the iris by setting Max. Iris Limit, Min. Iris Limit and Limit Gain for better exposure effect. Manual You need to set Iris, Shutter, and Gain manually. Slow Shutter The higher the slow shutter level is, the slower the shutter speed is.
  • Page 50 Network Speed Dome User Manual Set the Start Time and the End Time to define the duration for day mode. Note Day/Night Switch function varies according to models. Set Supplement Light Steps 1. Go to Configuration → Maintenance → System Service . 2.
  • Page 51: Image Parameters Switch

    Network Speed Dome User Manual When there are both very bright and very dark areas simultaneously in the field of view, you can enable the WDR function and set the level. WDR automatically balances the brightness level of the whole image and provides clear images with more details. Note When WDR is enabled, some other functions may be not supported.
  • Page 52: Mirror

    Network Speed Dome User Manual Set Scheduled-switch Switch the image to the linked scene mode automatically in certain time periods. Steps 1. Check Scheduled-switch. 2. Select and configure the corresponding time period and linked scene mode. Note For Linked Scene configuration, refer to Scene Mode . 3.
  • Page 53: Osd

    Network Speed Dome User Manual 6.7 OSD You can customize OSD (On-screen Display) information such as device name, time/date, font, color, and text overlay displayed on video stream. Go to OSD setting page: Configuration → Image → OSD Settings . Set the corresponding parameters, and click Save to take effect.
  • Page 54: Chapter 7 Video Recording And Picture Capture

    Network Speed Dome User Manual Chapter 7 Video Recording and Picture Capture This part introduces the operations of capturing video clips and snapshots, playback, and downloading captured files. 7.1 Storage Settings This part introduces the configuration of several common storage paths. 7.1.1 Memory Card You can view the capacity, free space, status, type, and property of the memory card.
  • Page 55 The device detects the status of Hikvision memory card. You receive notifications when your memory card is detected abnormal. Before You Start The configuration page only appears when a Hikvision memory card is installed to the device. Steps 1. Go to Configuration → Storage → Storage Management → Memory Card Detection .
  • Page 56: Set Ftp

    Network Speed Dome User Manual It shows the percentage of the remaining lifespan. The lifespan of a memory card may be influenced by factors such as its capacity and the bitrate. You need to change the memory card if the remaining lifespan is not enough. Health Status It shows the condition of your memory card.
  • Page 57: Set Nas

    Network Speed Dome User Manual Steps 1. Go to Configuration → Network → Advanced Settings → FTP . 2. Configure FTP settings. Server Address and Port The FTP server address and corresponding port. User Name and Password The FTP user should have the permission to upload pictures. If the FTP server supports picture uploading by anonymous users, you can check Anonymous to hide your device information during uploading.
  • Page 58: Emmc Protection

    Network Speed Dome User Manual Select file system protocol according to the operation system. Enter user name and password of the net HDD to guarantee the security if SMB/CIFS is selected. 3. Click Test to check whether the network disk is available. 4.
  • Page 59: Video Recording

    Network Speed Dome User Manual Picture Storage The ID of the picture storage region in the cloud video manager. Make Pool ID sure storage pool ID and the storage region ID are the same. 4. Click Test to test the configured settings. 5.
  • Page 60: Record Manually

    Network Speed Dome User Manual Event The video is recorded when configured event is detected. 4. Set schedule for the selected record type. Refer to Set Arming Schedule for the setting operation. 5. Click Advanced to set the advanced settings. Overwrite Enable Overwrite to overwrite the video records when the storage space is full.
  • Page 61: Capture Configuration

    Network Speed Dome User Manual 3. Click to play the video files. - Click to clip video files. - Double click the live view image to play video files in full screen. Press ESC to exit full screen. Note Go to Configuration → Local , click Save clips to to change the saving path of clipped video files. 4.
  • Page 62: Capture Manually

    Network Speed Dome User Manual 7.3.2 Capture Manually Steps 1. Go to Configuration → Local . 2. Set the Image Format and saving path to for snapshots. JPEG The picture size of this format is comparatively small, which is better for network transmission.
  • Page 63: Chapter 8 Event And Alarm

    Network Speed Dome User Manual Chapter 8 Event and Alarm This part introduces the configuration of events. The device takes certain response to triggered alarm. 8.1 Basic Event 8.1.1 Set Motion Detection This function detects moving objects in the detection region and triggers linkage actions. Steps Note This function is not available when Smart Event is enabled.
  • Page 64 Network Speed Dome User Manual Figure 8-1 Set Rules Stop Drawing Stop drawing one area. Clear All Clear all the areas. 4. Optional: You can set the parameters of multiple areas by repeating the above steps. Expert Mode You can configure different motion detection parameters for day and night according to the actual needs.
  • Page 65: Set Video Tampering Alarm

    Network Speed Dome User Manual Sensitivity The higher the value of sensitivity is, the more sensitive the motion detection is. If scheduled image settings is enabled, the sensitivity of day and night can be set separately. 3. Select an Area and click Draw Area. Click and drag the mouse on the live image and then release the mouse to finish drawing one area.
  • Page 66: Set Exception Alarm

    Network Speed Dome User Manual Figure 8-3 Set Video Tampering Area 5. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for setting linkage method. 6. Click Save. 8.1.3 Set Exception Alarm Exception such as network disconnection can trigger the device to take corresponding action. Steps 1.
  • Page 67: Set Alarm Input

    Network Speed Dome User Manual IP Address Conflicted The IP address of current device is same as that of other device in the network. Illegal Login Incorrect user name or password is entered. 3. Refer to Linkage Method Settings for setting linkage method. 4.
  • Page 68: Set Intrusion Detection

    Network Speed Dome User Manual Sudden Increase of Sound Intensity Detection Detect sudden increase of sound intensity. Sensitivity and Sound Intensity Threshold are configurable. Note The lower the sensitivity is, the more significant the change should be to trigger the ●...
  • Page 69 Network Speed Dome User Manual 6. Optional: Set the minimum size and the maximum size for the target to improve detection accuracy. Only targets whose size are between the maximum size and the minimum size trigger the detection. 1) Click Max. Size, and drag the mouse on live image. If you want to change the size, click the button and draw again.
  • Page 70: Set Line Crossing Detection

    Network Speed Dome User Manual 8.2.3 Set Line Crossing Detection Line crossing detection is used to detect the object movement of crossing a predefined line. When it occurs, the device takes linkage actions as response. Before You Start You need to enable Smart Event on the VCA Resource page to show the configuration page. See Allocate VCA Resource for instructions.
  • Page 71: Set Region Entrance Detection

    Network Speed Dome User Manual Figure 8-5 Draw Line 6. Optional: Set the minimum size and the maximum size for the target to improve detection accuracy. Only targets whose size are between the maximum size and the minimum size trigger the detection.
  • Page 72 Network Speed Dome User Manual Before You Start You need to enable Smart Event on the VCA Resource page to show the configuration page. See Allocate VCA Resource for instructions. Steps 1. Go to Open Platform → Smart Event → Region Entrance Detection . 2.
  • Page 73: Set Region Exiting Detection

    Network Speed Dome User Manual Figure 8-6 Draw Area 8. Click Save. 9. Repeat above steps to set other regions. 10. Set arming schedule. See Set Arming Schedule . 11. Set linkage method. See Linkage Method Settings . 8.2.5 Set Region Exiting Detection Region exiting detection is used to detect the objects movement of exiting from a predefined area.
  • Page 74 Network Speed Dome User Manual 2) Click Detection Area. 3) Click on the live image to draw the boundaries of the detection area, and right click to complete drawing. 6. Optional: Set the minimum size and the maximum size for the target to improve detection accuracy.
  • Page 75: Set Object Removal Detection

    Network Speed Dome User Manual 8.2.6 Set Object Removal Detection Object removal detection detects whether the objects are removed from the predefined detection area, such as exhibits on display. When it occurs, the device takes linkage actions as response. Before You Start You need to enable Smart Event on the VCA Resource page to show the configuration page.
  • Page 76: Set Unattended Baggage Detection

    Network Speed Dome User Manual Figure 8-8 Draw Area 8. Click Save. 9. Repeat above steps to set other regions. 10. Set arming schedule. See Set Arming Schedule . 11. Set linkage method. See Linkage Method Settings . 8.2.7 Set Unattended Baggage Detection Unattended baggage detection is used to detect the objects left over in the predefined area.
  • Page 77 Network Speed Dome User Manual 2) Click Detection Area. 3) Click on the live image to draw the boundaries of the detection area, and right click to complete drawing. 6. Optional: Set the minimum size and the maximum size for the target to improve detection accuracy.
  • Page 78: Set Tracking Parameters

    Network Speed Dome User Manual 8.2.8 Set Tracking Parameters Adjust the motion parameters of the device for better target tracking performance. Steps Note This function is only supported by certain models. 1. Go to Open Platform → Smart Event → Advanced Parameters . 2.
  • Page 79: Chapter 9 Arming Schedule And Alarm Linkage

    Network Speed Dome User Manual Chapter 9 Arming Schedule and Alarm Linkage Arming schedule is a customized time period in which the device performs certain tasks. Alarm linkage is the response to the detected certain incident or target during the scheduled time. 9.1 Set Arming Schedule Set the valid time of the device tasks.
  • Page 80: Ftp/Nas/Memory Card Uploading

    Network Speed Dome User Manual Automatic Alarm Set the automatic alarm parameters, then the device triggers an alarm output automatically in the set arming schedule. Steps 1. Set automatic alarm parameters. Alarm Output No. Select the alarm output No. according to the alarm interface connected to the external alarm device.
  • Page 81: Send Email

    Network Speed Dome User Manual Refer to Set FTP to set the FTP server. Refer to Set NAS for NAS configuration. Refer to Set New or Unencrypted Memory Card for memory card storage configuration. 9.2.3 Send Email Check Send Email, and the device sends an email to the designated addresses with alarm information when an alarm event is detected.
  • Page 82: Notify Surveillance Center

    Network Speed Dome User Manual 9.2.4 Notify Surveillance Center Check Notify Surveillance Center, the alarm information is uploaded to the surveillance center when an alarm event is detected. 9.2.5 Smart Tracking Check Smart Tracking, and the device tracks the target when an alarm event is detected. Note This function is only supported by certain models.
  • Page 83: Audible Warning

    Network Speed Dome User Manual Note Only certain device models support the function. 9.2.8 Audible Warning After enabling Audible Warning and setting the Audible Alarm Output, the built-in speaker of the device or connected external speaker plays warning sounds when alarm happens. For audible alarm output settings, refer to Set Audible Alarm Output .
  • Page 84: Chapter 10 Network Settings

    Network Speed Dome User Manual Chapter 10 Network Settings 10.1 TCP/IP TCP/IP settings must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other. Go to Configuration →...
  • Page 85: Multicast

    Network Speed Dome User Manual Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network administrator for required information. It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transaction. The valid value range of MTU is 1280 to 1500.
  • Page 86: Port

    Network Speed Dome User Manual 10.2 Port The device port can be modified when the device cannot access the network due to port conflicts. Caution Do not modify the default port parameters at will, otherwise the device may be inaccessible. Go to Configuration →...
  • Page 87: Port Mapping

    Network Speed Dome User Manual 10.3 Port Mapping By setting port mapping, you can access devices through the specified port. Before You Start When the ports in the device are the same as those of other devices in the network, refer to Port to modify the device ports.
  • Page 88: Set Port Mapping On Router

    Network Speed Dome User Manual 10.3.3 Set Port Mapping on Router The following settings are for a certain router. The settings vary depending on different models of routers. Steps 1. Select the WAN Connection Type. 2. Set the IP Address, Subnet Mask and other network parameters of the router. 3.
  • Page 89: Snmp

    Network Speed Dome User Manual 10.4 SNMP You can set the SNMP network management protocol to get the alarm event and exception messages in network transmission. Before You Start Before setting the SNMP, you should download the SNMP software and manage to receive the device information via SNMP port.
  • Page 90: Access To Device Via Pppoe Dial Up Connection

    Network Speed Dome User Manual By Client Software Add domain name to the client software. Refer to the client manual for specific adding methods. 10.6 Access to Device via PPPoE Dial Up Connection This device supports the PPPoE auto dial-up function. The device gets a public IP address by ADSL dial-up after the device is connected to a modem.
  • Page 91: Enable Hik-Connect Service On Camera

    Network Speed Dome User Manual Note Hik-Connect service should be supported by the camera. 10.7.1 Enable Hik-Connect Service on Camera Hik-Connect service should be enabled on your camera before using the service. You can enable the service through SADP software or Web browser. Enable Hik-Connect Service via Web Browser Follow the following steps to enable Hik-Connect Service via Web Browser.
  • Page 92: Set Up Hik-Connect

    - Visit https://appstore.hikvision.com to download the application according to your mobile phone system. - Visit the official site of our company. Then go to Support → Tools → Hikvision App Store . - Scan the QR code below to download the application.
  • Page 93: Set Isup

    Network Speed Dome User Manual Note The router should be the same one which your mobile phone has connected to. 9. Tap Add in the next interface to finish adding. For detailed information, refer to the user manual of the Hik-Connect app. 10.8 Set ISUP When the device is registered on ISUP platform (formerly called Ehome), you can visit and manage the device, transmit data, and forward alarm information over public network.
  • Page 94: Set Alarm Server

    Network Speed Dome User Manual 1. Go to Configuration → Network → Advanced Settings → Network Service . 2. Set network service. WebSocket & WebSockets WebSocket or WebSockets protocol should be enabled if you use Google Chrome 57 and its above version or Mozilla Firefox 52 and its above version to visit the device.
  • Page 95: Tcp Acceleration

    Network Speed Dome User Manual Steps 1. Go to Configuration → Network → Advanced Settings → Alarm Server . 2. Enter Destination IP or Host Name, URL, and Port. 3. Select Protocol. Note HTTP, HTTPS, and ISUP are selectable. It is recommended to use HTTPS, as it encrypts the data transmission during communication.
  • Page 96: Chapter 11 System And Security

    Network Speed Dome User Manual Chapter 11 System and Security It introduces system maintenance, system settings and security management, and explains how to configure relevant parameters. 11.1 View Device Information You can view device information, such as Device No., Model, Serial No. and Firmware Version. Enter Configuration →...
  • Page 97: Import And Export Configuration File

    Network Speed Dome User Manual 11.4 Import and Export Configuration File It helps speed up batch configuration on other devices with the same parameters. Steps 1. Export configuration file. 1) Go to Configuration → System → Maintenance → Upgrade & Maintenance . 2) Click Device Parameters and input the encryption password to export the current configuration file.
  • Page 98: View Open Source Software License

    Network Speed Dome User Manual Firmware Directory Locate the directory which the upgrade file belongs to. 3. Click Browse to select the upgrade file. 4. Click Upgrade. 11.8 View Open Source Software License Go to Configuration → System → System Settings → About Device , and click View Licenses. 11.9 Set Live View Connection It controls the remote live view connection amount.
  • Page 99: Set Dst

    Network Speed Dome User Manual Steps 1. Go to Configuration → System → System Settings → Time Settings . 2. Select Time Zone. 3. Click NTP. 4. Set Server Address, NTP Port and Interval. Note Server Address is NTP server IP address. 5.
  • Page 100: Authentication

    Network Speed Dome User Manual 11.12.1 Authentication You can improve network access security by setting RTSP and WEB authentication. Go to Configuration → System → Security → Authentication to choose authentication protocol and method according to your needs. RTSP Authentication Digest and digest/basic are supported, which means authentication information is needed when RTSP request is sent to the device.
  • Page 101: Set Mac Address Filter

    Network Speed Dome User Manual Allowed Only IP addresses in the list can access the device. 4. Edit the IP address filter list. Add a new IP address or IP address range to the list. Modify Modify the selected IP address or IP address range in the list. Delete Delete the selected IP address or IP address range in the list.
  • Page 102: Security Audit Log

    Network Speed Dome User Manual Note Complete certificate management before selecting server certificate. Refer to Certificate ● Management for detailed information. If the function is abnormal, check if the selected certificate is abnormal in Certificate ● Management. 5. Click Save. 11.12.5 Security Audit Log The security audit logs refer to the security operation logs.
  • Page 103: Set Qos

    Network Speed Dome User Manual Steps 1. Check Enable Log Upload Server. 2. Optional: Check Enable Encrypted Transmission if you want the log data to be encrypted. 3. Input Log Server IP and Log Server Port. 4. Optional: Select client certificate. 5.
  • Page 104: Ssh

    Network Speed Dome User Manual 11.12.8 SSH Secure Shell (SSH) is a cryptographic network protocol for operating network services over an unsecured network. The SSH function is disabled by default. Caution Use the function with caution. The security risk of device internal information leakage exists when the function is enabled.
  • Page 105 Network Speed Dome User Manual 5. Optional: Click Certificate Property to see the certificate details. Install Self-signed Request Certificate You can send the self-signed certificate to a trusted third-party for the signature, and install the certificate to the device. Before You Start Create a self-signed certificate first.
  • Page 106 Network Speed Dome User Manual Note The input certificate ID cannot be the same as the existed ones. 4. Click Browse to select the certificate file. 5. Select Certificate and Key and select a Key Type according to your certificate. Independent Key If your certificate has a independent key, select this option.
  • Page 107: User And Account

    Network Speed Dome User Manual Note If you set the reminding day before expiration to 1, then the camera will remind you the day ● before the expiration day. 1 to 30 days are available. Seven days is the default reminding days. If you set the reminding day before expiration to 1, and the detection time to 10:00, and the ●...
  • Page 108 Network Speed Dome User Manual 3. Click OK. Online Users The information of users logging into the device is shown. Go to Configuration → System → User Management → Online Users to view the list of online users. Simultaneous Login The administrator can set the maximum number of users logging into the system through web browser simultaneously.
  • Page 109: Appendix A. Device Command

    Network Speed Dome User Manual Appendix A. Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for all Hikvision network cameras.
  • Page 110: Appendix B. Device Communication Matrix

    Network Speed Dome User Manual Appendix B. Device Communication Matrix Scan the following QR code to get device communication matrix. Note that the matrix contains all communication ports of Hikvision network cameras.
