Introduction
This manual update covers errors occurring on
Pages 36-41 in the manual for Models H6091-94
and H7848-51 Digital Read Outs (DRO).
Page 36
Please note that the positive and negative assign-
ments are labeled incorrectly in the figures at the
top of Page 36.

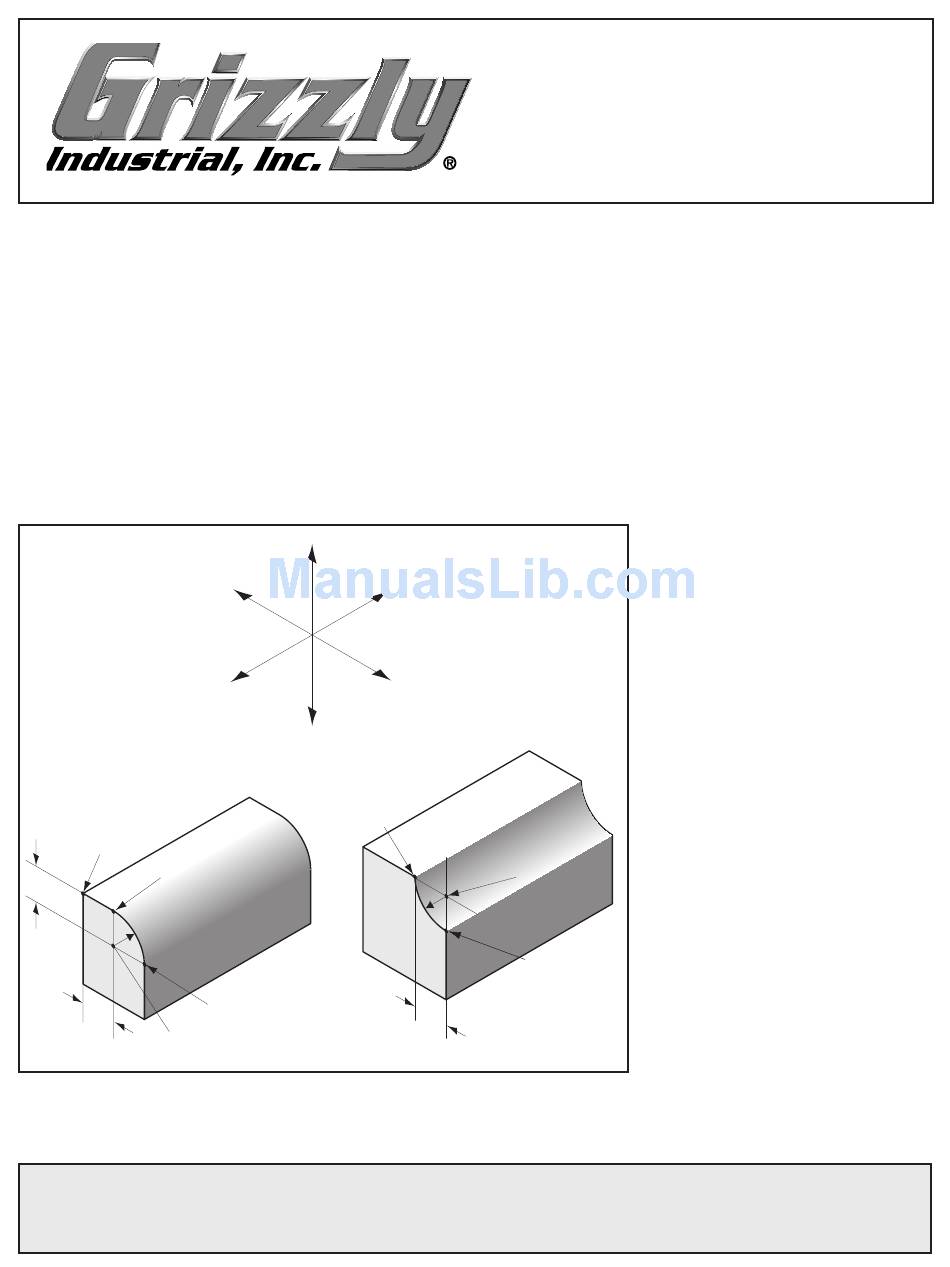

Figure 1 shows the proper assign-
ments that must be used when planning coordinate
motions.
��������
��������
���������
�������������
�����
�����������
� � �
�������
� �
������
���������
Figure 1. The positive and negative values listed in the manual are incorrect.
COPYRIGHT © APRIL, 2005 BY GRIZZLY INDUSTRIAL, INC. REVISED FEBRUARY, 2007
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
��������
��������
��������
�����������
������
���������
����������
#DD7183 PRINTED IN CHINA
MANUAL UPDATE
The value of -20 has been changed for Z and the
start point for X has changed to -20 while the end
points for X and Z have changed to -40 and -20
respectively, in both Example 3 and 4. The coor-
dinate star in
show the actual positive and negative values that
will be viewed on the display, when operating the
DRO.
Page 37
Step 8 lists Machining Step Increment. This fea-
ture is only used on 2 axis DROs. The Z Step
��������
���������
�������������
����������
�����
������������
��������
� �
MODELS H6091-94
H7848-51
has also been updated to
Figure 1
controls the motion assignments
for X and Y (depending on which
plane is chosen). As an example,
when a curve is to be generated
in the XZ plane, all motion of X
is dictated by Z. As Z is lowered,
the display for X on the DRO
changes as well.
The user chooses how much
the step rate will be in Z. He is
given the amount that X must
move to be in the right place for
the next cut each time Z moves.
The operator moves the table
until the display reads 0.000 for
X; the cut can then be made. In
this way, no matter how deep Z
is set, as long as X reads 0.000,
the table is in the correct location
in X and Z, to make a cut along
the edge of the curve.

Advertisement

loading

Summary of Contents for Grizzly H6091

  • Page 1 ��������� Figure 1. The positive and negative values listed in the manual are incorrect. COPYRIGHT © APRIL, 2005 BY GRIZZLY INDUSTRIAL, INC. REVISED FEBRUARY, 2007 WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 2 New Instructions for Pages 38-41 This example uses the same information, with corrections for positive and negative values, as used in the manual. Refer to while reviewing the example's list Figure 2 of parameters below. The XZ plane is chosen for this example. Coordinate motion will have negative values for X and Z during the cutting operation.
  • Page 3 The display will prompt you for the center of the radius information. Press the X key and type in -20. Press the Enter key. Press the Y key and type in -20. Press the Enter key. Press the Next key. �...
  • Page 4 The display will prompt you for the End Point information. Press the X key and type in -40. Press the Enter key. Press the Y key and type in -20. Press the Enter key. Press the Next key. � � �...
  • Page 5 At this point the display should say AUTO R in the menu display and 31.355mm for X. Z should read 0.000 and Y should still read 4.000 mm. If X or Z do not read these numbers repeat the previous 12 Steps.
  • Page 6 Digital Readout System MODEL H6087-H6098 INSTALLATION MANUAL COPYRIGHT © JUNE, 2004 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #CA6351 PRINTED IN CHINA...
  • Page 7: Installation Instructions

    Figures 2 & 3, it is important to ensure that the dial indicator is perpendicular to the measured surface to also avoid the cosine measurement error. Figure 2. Horizontal scale alignment. Figure 3. Vertical scale alignment. Digital Readout System...
  • Page 8: Location Selection

    The mounting strip, shown in Figure 5, must be as short as possible to provide a rigid surface. Figure 5. Mounting strip. Digital Readout System A clearance of at least " between the scale and scale cover is necessary (Figure 6).
  • Page 9: Installation Requirements

    0.1 mm of each other.. —Perpendicular mounting Figure 11: The two mounting surfaces must be less than 0.1 mm out of square. 0" ± .008" Figure 9. Parallel mounting. " .709 ± .008 Figure 10. More parallel mounting. Digital Readout System .004" .002"...
  • Page 10 .04", as shown in Figure 12. —For scale travel longer than 37.4" mm (Figure 13), the maximum alignment paral- lelism error must be less than 0.06". Digital Readout System > .04" Figure 12. Alignment, less than 37.4" travel. >...
  • Page 11 Generally the scale reads in the correct direction with the label of the scale exposed. Lathe Scale Installation: Before fitting the scale, connect the "X" axis to the cross slide to allow the diameter function to work. Digital Readout System...
  • Page 12: Scale Setup

    Figure 16. Mounting scale on backing plate. Digital Readout System When the scale is mounted, fix the reader head to the saddle. If necessary, shim the head to ensure that it is parallel and in-line with the scales (Figure 17).
  • Page 13 (Figure 21), and around the scale to allow for the cover to protect the scale (Figure 22), where exces- sive coolant and metal shavings are present. Figure 21. Bracket mounting location. Figure 22. Mounted scale cover. Digital Readout System...
  • Page 14 (Figure 25) with the open side of the scale facing down, and must be parallel to the bed. Digital Readout System Figure 25. Longitudal scale mounting on lathe. Mount the reader head to the saddle with the provided brackets (Figure 26).
  • Page 15 -10- Digital Readout System...
