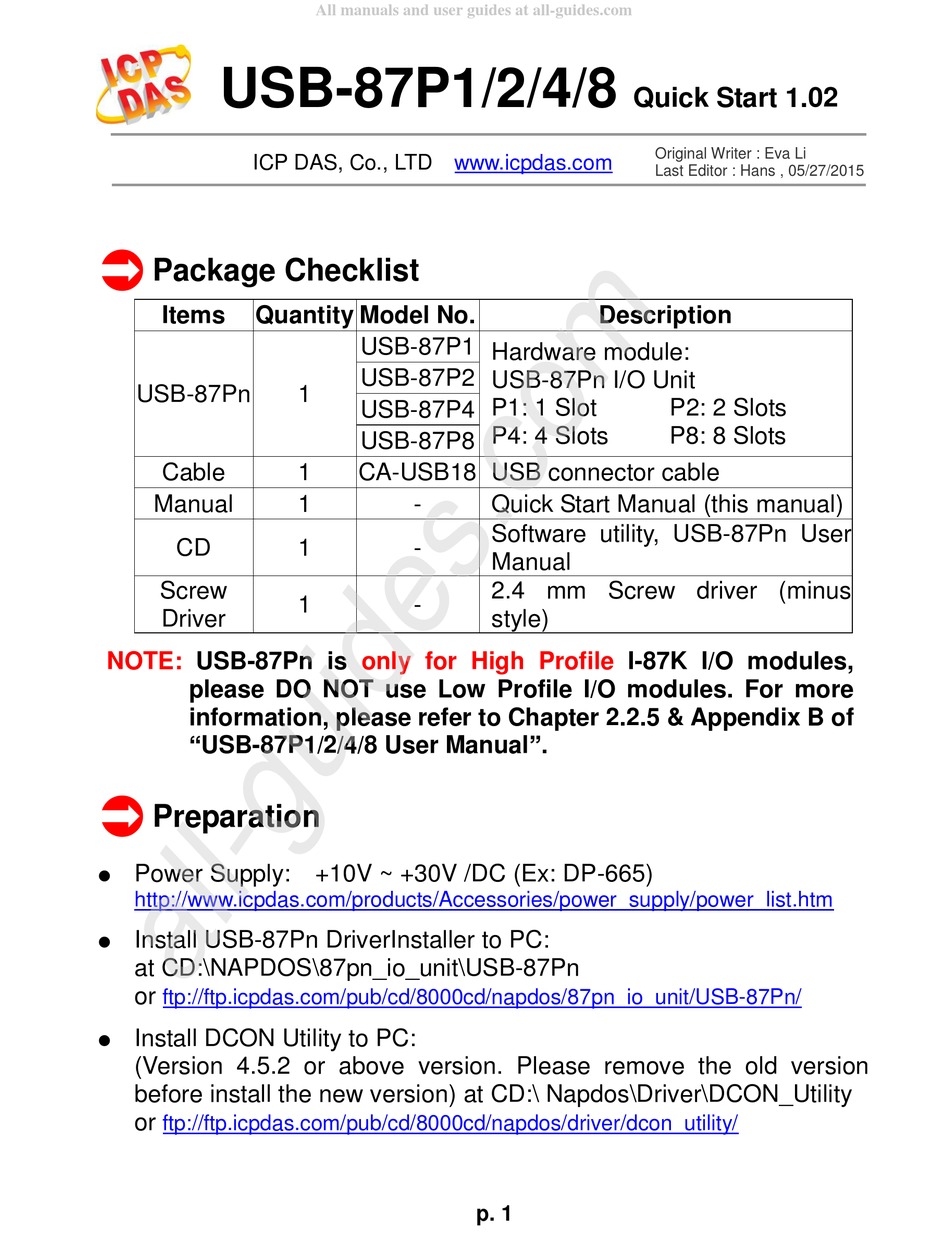

USB-87P1/2/4/8
ICP DAS, Co., LTD
Package Checklist
Items
Quantity Model No.
USB-87Pn
Cable
Manual
CD
Screw
Driver
NOTE:
USB-87Pn is
please DO NOT use Low Profile I/O modules. For more
information, please refer to Chapter 2.2.5 & Appendix B of
"USB-87P1/2/4/8 User Manual".
Preparation
Power Supply: +10V ~ +30V /DC (Ex: DP-665)
http://www.icpdas.com/products/Accessories/power_supply/power_list.htm
Install USB-87Pn DriverInstaller to PC:
at CD:\NAPDOS\87pn_io_unit\USB-87Pn
or
ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/87pn_io_unit/USB-87Pn/
Install DCON Utility to PC:
(Version 4.5.2 or above version. Please remove the old version
before install the new version) at CD:\ Napdos\Driver\DCON_Utility
or
ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/
All manuals and user guides at all-guides.com
www.icpdas.com
USB-87P1 Hardware module:
USB-87P2
1
USB-87P4
USB-87P8
1
CA-USB18 USB connector cable
1
-
1
-
1
-
only for High Profile
p. 1
Quick Start 1.02
Original Writer : Eva Li
Last Editor : Hans , 05/27/2015
Description
USB-87Pn I/O Unit
P1: 1 Slot
P2: 2 Slots
P4: 4 Slots
P8: 8 Slots
Quick Start Manual (this manual)
Software utility, USB-87Pn User
Manual
2.4 mm Screw driver (minus
style)
I-87K I/O modules,
Advertisement
Related Manuals for ICP DAS USA USB-87P1
Summary of Contents for ICP DAS USA USB-87P1
- Page 1 ICP DAS, Co., LTD www.icpdas.com Last Editor : Hans , 05/27/2015 Package Checklist Items Quantity Model No. Description USB-87P1 Hardware module: USB-87P2 USB-87Pn I/O Unit USB-87Pn P1: 1 Slot P2: 2 Slots USB-87P4 P4: 4 Slots P8: 8 Slots...
- Page 2 Slot 3 Enable/Disable Power Connector USB Port Slots LED indicators USB-87P2 indicators Power & CPU High Profile I-87K I/O USB-87P1 is Module Slots like USB-87P2, System Ready but with 1 slot. Power Auto Configuration Indicator Auto Configuring Slot 0 Slot 1...
- Page 3 All manuals and user guides at all-guides.com 2. Wire the 87Pn to Power and PC Power Supply +10~+30 VDC USB-87P4 To USB port PC (COM X) To USB port USB Connector Cable (CA-USB18) 3. Configure CPU Module Switch Label Setting Description Enable (Switch to ON)
- Page 4 All manuals and user guides at all-guides.com 4. Plug in the High Profile I/O Modules Example: Plug in I-87019R to Slot 0 p.s. I-87019R is an AI (Analog Input) High Profile module High Profile Profile 81.08 66.7 87.46 102.14 Slot: 0 ...
- Page 5 All manuals and user guides at all-guides.com Software Configuration 1. Run DCON Utility to Search the USB-87Pn (Ex: USB-87P8) Please finish the “Preparation” Note: before Software (See P.1) Configuration. Check “Device Manager” of your PC to see the connecting COM.
- Page 6 All manuals and user guides at all-guides.com 2. Click “USB-87Pn” to Setup Slots If the status code is not [01H], click button and follow the instruction please. 3. Configure the 87K I/O Module p. 6...
- Page 7 All manuals and user guides at all-guides.com 4. Click “Write To 87Pn” Button After “Write To 87Pn”, the Status Code is changed to “[00H] OK” that means “The configuration is correct”. 5. Click “Start Search” Button “[0,0,0,0...]” of “Status” means “The I/O configuration of each slot is correct”. Each plugged I/O module will be listed under the USB-87Pn.
-
Page 8: Technical Support
Plug in a new one with the same model number. Easy! Convenient! Technical Support USB-87P1/2/4/8 User Manual CD:\NAPDOS\87Pn_io_unit\USB-87Pn or ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/87pn_io_unit/usb-87pn/ DCON Utility User Manual CD:\ Napdos\Driver\DCON_Utility\Manual or ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/manual/ I-87K high profile series I/O modules selection guide http://www.icpdas.com/products/PAC/i-8000/8000_IO_modules.htm Our service email account : service@icpdas.com...
