Summary of Contents for Galaxy Audio AS-1100D

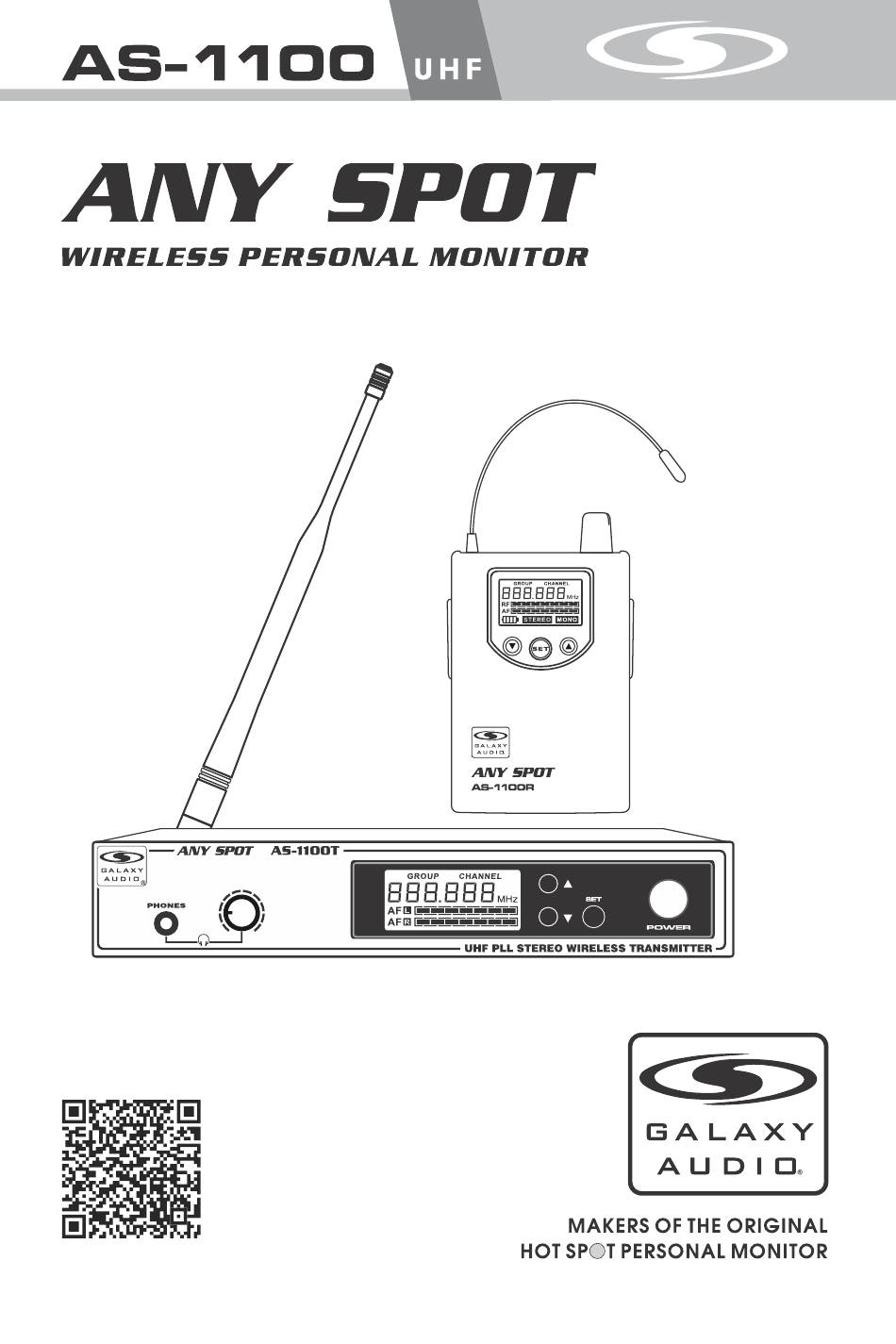

- Page 1 USER’S MANUAL www.galaxyaudio.com/products/as-1100...
- Page 2 Licensing of Galaxy Audio wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. Galaxy Audio strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.
-
Page 3: System Components
Introduction Introduction Thank you for choosing a Galaxy Audio Wireless Personal Monitor system. You have joined thousands of other satisfied customers. Our years of professional experience in design and manufacturing ensure our products’ quality, performance and reliability. System Components System Components... -
Page 4: Front Panel
AS-1100T Transmitter Features: AS-1100T Transmitter Features: Front Panel: Transmitter Menu Down Button. Headphone Jack. Please See (system setup) on page 4. Headphone Output Level Control. Transmitter Set Button. Turn left to decrease the level, Please See (System Setup) on page 4. turn right to increase the level. -
Page 5: System Setup
System Setup System Setup Transmitter Programming: GROUP CHANNEL Select a Group and/or Channel: MH z Press SET button. While Group number is flashing, press button to select a group as shown in . Then press SET button again. While Channel number is flashing, press button to select a Channel, as shown in GROUP... -
Page 6: Changing Batteries
Body Pack Receiver Body Pack Receiver Features: Antenna. RF Signal LED. Lights when RF Signal is received. Earphone Jack. Output Level Control and On/Off Switch. LCD Screen. Please See (System Setup) on page 4. Receiver Menu Down Button. Please See (System Setup) on page 4. Receiver programming SET Button. -
Page 7: Specifications
Accessories and Replacement Parts Accessories and Replacement Parts Many of these parts and accessories may be found and purchased from the Galaxy Audio website in the Galaxy Store (www.galaxyaudio.com/parts-and-accessories). AS-EXTBNC - BNC Connector and Cable for front mounting the antennas on the DHTQUAD. -
Page 8: Three-Year Limited Warranty
WARRANTY Information can be viewed online at http://www.galaxyaudio.com/support/warranty www.galaxyaudio.com/support/warranty USER’S MANUAL Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2016 V20160323...
