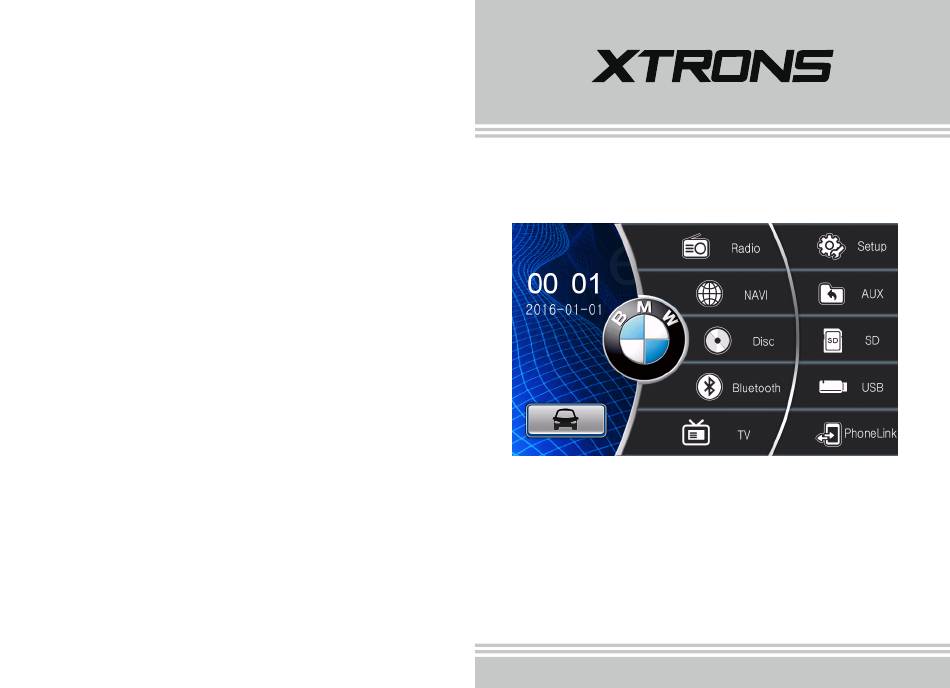

- Page 1 USER MANUAL Thank you for buying this XTRONS product. Please read through these instructions so you will know how to operate this unit properly. After you have finished reading the instructions, keep this document in a safe place for future reference.
-
Page 2: Table Of Contents
Precaution Contents Before installing this product Precaution ......................- Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction. Main Menu ......................- To avoid shorts in the electrical system, be sure to disconnect the (-) battery cable Radio ........................ - Page 3 To ensure safe driving - Do not disassemble or modify this product, as there are high-voltage components inside which may cause an electric shock. Be sure to consult your dealer for internal WARNING inspection, adjustments or repairs. - LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED Before using this product , be sure to read and fully understand the following STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE safety information:...
-
Page 4: Main Menu
Main Menu 1. Bluetooth 6. iPod 1. Radio 6.SD 2. Game 7. SD 2.Setup 7.Bluetooth 3. AUX Input 8. Setup 3.Navi 8.USB 4. TV (not supported) 9. USB1 4.AUX 9.Screen mirroring 5. Screen Mirroring 10. USB1 5.Disc 10.TV (not available) -
Page 5: Radio
Radio Play DVD DVD Player CAUTION 1. There are two screws on the top face of the unit to protect the disc drive in transit. The screws need to be removed first. Otherwise it cannot accept or play discs. 2. For safety reasons, video images cannot be viewed while your vehicle is in motion. -
Page 6: Usb/Sd
USB1/SD Mode 7. Eject a disc 8. Next page 1. Previous file 9. Display adjustment 2. Pause/Play Adjust the brightness , contrast, and color of the screen. 3. Next file 10. Viewing angle adjustment (not available) 4. Eject (not available) 11. -
Page 7: Bluetooth
Bluetooth 2. Recent calls Connect your mobile phone to this unit via Bluetooth and use an external microphone to make and receive hands-free calls. CAUTION For your safety, avoid talking on the phone as much as possible while driving. Connect to a Bluetooth device View recent outgoing calls, incoming calls or missed calls. -
Page 8: Screen Mirroring
4. Bluetooth music Screen Mirroring Tap PhoneLink on the menu screen to enter screen mirroring mode. When you connect a mobile phone with compatible applications installed, you can control the applications for the mobile phone directly from this unit. ※ Please note that the screen mirroring function works for Android smart phones only. -
Page 9: Settings
Settings 1. General settings 1.6 Camera Mirror If you connect a rear view camera (sold separately) to the unit, you can turn this on to enter mirror imaging mode for rear parking, and turn this off to enter normal imaging mode for rear parking. 1.7 Black Time (Screen Timeout Settings) 1.1 Any Key Power Choose from 3 minutes, 5 minutes, 10 minutes, and cancel. - Page 10 2.1 Fader/Balance Adjustment 1.12 Language You can select a listening position that you want to make as the center of the Set the language for the unit. Choose from English, French, German, Spanish, and sound effects. more. Choose from Driver, Passenger, Back, and All. 1.13 Factory Set Enter the password 3368 to go to Factory Settings.
-
Page 11: Troubleshooting
Troubleshooting Noise in broadcasts - Signals are too weak. Select other stations with stronger signals. If you have problems operating this product, refer to this section. The most common - Check the connection of the vehicle antenna. problems are listed below, along with likely causes and solutions. - Change broadcast from stereo to mono.
