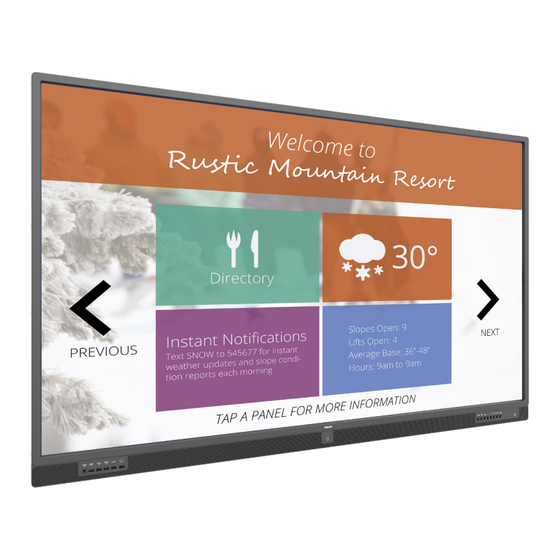

Philips 75BDL3151T/00 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
75BDL3151T
V1.00
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading

Related Manuals for Philips 75BDL3151T/00

Summary of Contents for Philips 75BDL3151T/00

  • Page 1 75BDL3151T V1.00 www.philips.com/welcome User Manual (English)
  • Page 2 Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. • The eye bolt is for usage in short-time maintenance and installation. We suggest not to use the eye bolt for more than 1 hour. Prolong usage is prohibited. Please keep a clear safety area under the display while using the eye bolt. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.
  • Page 3 75BDL3151T Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture. • When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation..
  • Page 4 75BDL3151T Canada: Industry Canada statement: This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement in Brazil: ANATEL RF STATEMENT Per Article 6 of Resolution 506, equipment of restricted radiation must carry the following statement in a visible location “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário. ” ANATEL BODY SAR STATEMENT “Este produto atende aos requisitos técnicos aplicados, incluindo os limites de exposição da Taxa de Absorção Específica referente a campos elétricos, magnéticos e eletromagnéticos de radiofrequência, de acordo com as resoluções n°303/2002 e 533/2009.
  • Page 5 75BDL3151T Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. 2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. 3. We are committed to develop, produce and market products that cause no adverse health effects. 4. We confirm that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. 5. We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization for early integration in its products. Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED.
  • Page 6 75BDL3151T Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. Plassering/Ventilasjon ADVARSEL: NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ. China RoHS 根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了本产品中可能包含的有害物 质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 ○ ○ ○ ○ ○ ○ 液晶显示屏/灯管 × × ○ ○ ○...
  • Page 7 75BDL3151T 《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 － ○...
  • Page 8 75BDL3151T End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
  • Page 9 75BDL3151T Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes. For Switzerland: The used battery is to be returned to the selling point. For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery. According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou...

  • Page 10: Table Of Contents

    75BDL3151T Table Of Contents Supported Media Formats ............ 43 Input Mode ................45 Unpacking and Installation ............1 Pixel Defect Policy ..............46 1.1. Transportation and Unpacking..........1 9.1. Pixels and Sub-Pixels ...............46 1.2. Package Contents ................4 9.2. Types of Pixel Defects + Dot Definition ....46 1.3. Installation Notes .................4 9.3. Bright Dot Defects .

  • Page 11: Unpacking And Installation

    75BDL3151T Unpacking and Installation 1.1. Transportation and Unpacking Notice for transportation • Always keep the carton in vertical direction. Any other directions are not allowed. • No any other objects could be placed on the carton. • Don’t impact the carton. • Move the carton by stacker. • Don’t tip over the carton. • Move single carton with small pallet by stacker. Carton Small Pallet Big Pallet...
  • Page 12 75BDL3151T Notice for transportation 1. Remove the strap around the carton. 2. Use blade to cut the tape on the top, and open the carton. 3. Take out the accessory box. 4. Take out the top and front cushions carefully. 5. Remove the plastic carton lockers and remove the top carton.
  • Page 13 75BDL3151T 6. With the help of another person to move the display out of the bottom carton. • Do not touch the screen of display. Please use the handles • Keep vertical direction when moving the display. to move the display. 90° 90° • Do not let the edge of display to touch the hard surface such as floor or table.

  • Page 14: Package Contents

    75BDL3151T Before install the display • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display • Quick start guide NORMAL SOURCE FORMAT • Remote control with AAA batteries LIST INFO • Power cord ADJUST OPTIONS • RS232 cable • HDMI cable ID SET ENTER Quick start guide...

  • Page 15: Mounting On A Wall

    75BDL3151T 1.4. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America. Protective Sheet VESA Grid Table 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. 4.

  • Page 16: Parts And Functions

    75BDL3151T Parts and Functions 2.1. Control Panel MENU INPUT MUTE [ ] button Remote control sensor and power status indicator Use this button to turn the display on or put the display to standby. • Receives command signals from the remote control. • Indicates the operating status of the display: [MUTE] button - Lights green when the display is turned on Switch the audio mute ON/OFF. - Lights red when the display is in standby mode [INPUT] button - Lights off when the main power of the display is turned off Choose the input source. * Using IR sensor cable for better remote control performance. [ ] button (Please refer to the instructions of 3.4) Go to next level menu while OSD menu is on, or increase the...

  • Page 17: Input/Output Terminals

    75BDL3151T 2.2. Input/Output Terminals 100-240V IR-IN IR-OUT HDMI OUT HDMI2 IN 50-60Hz 1A 5V/2A HDMI1 IN 8 9 10 11 12 13 AC OUT HDMI1 IN / HDMI3 IN / HDMI4 IN AC power supply to the AC IN jack of a media player. HDMI video/audio input. AC IN VGA1 IN (D-Sub) / VGA2 IN (D-Sub) AC power input from the wall outlet.
  • Page 18 75BDL3151T DisplayPort OUT Android DisplayPort out. Power Indicator Show the power indicator. Power Button Press this button to turn the OPS on/off. USB 2.0 / 3.0 PORT USB 2.0 Connect your USB storage device USB 3.0 For service (update FW or debug). MICRO SD CARD Insert your MICRO SD CARD. LAN control function for the use of remote control signal from control center. RS232C Android RS232 network input reserved for customized protocol usage from System Integrator. SIM CARD Insert your SIM CARD.
  • Page 19 75BDL3151T 2.2.1. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3. Replace the cover. Caution: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions: • Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment. • Do not mix battery types. • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries. • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin. NOTE: I f you do not intend to use the remote control for a long period, remove the batteries.

  • Page 20: Remote Control

    75BDL3151T 2.3. Remote Control ] LIST button/ID No function. 2.3.1. General functions NAVIGATION buttons Main Menu: Move the highlight bar up to adjust the selected item. Main Menu: Move the highlight bar down to adjust the selected item. Main Menu: go to previous level menu. Volume Menu: Decrease Audio Volume. Main Menu: go to next level menu or set selected option. Volume Menu: Increase Audio Volume. ] button Main Menu: Confirm an entry or selection.
  • Page 21 5. All media or pdf files should be put at the folder, which is named “philips” with sub-folder, under the root directory of the specified storage (internal/USB/SD Card). All sub-folders (video/photo/music/ pdf) are named by media types and shouldn’t be changed. videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/ pdfs : {root dir of storage}/philips/pdf/ Note that the root directories of three storages are Internal storage: /sdcard USB storage: /mnt/usb_storage...
  • Page 22 75BDL3151T » when zoom in/out has been not performed, [ ] [ ] VOLUME button Adjust volume. The buttons are only controlled by Scalar. Press to go to the next page. Press to go to the previous page. ] button Confirm an entry or selection. [ ] ADJUST button 1. In the content of the web page, move the focus down to the next clickable items. 2. Move the focus down to the next control or widget such as buttons. ] MUTE button Press to turn the mute function on/off. The button is only controlled by Scalar. ] COLOR buttons 1.

  • Page 23: Connecting External Equipment

    75BDL3151T Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using Video Source input [AUDIO IN] [CVBS IN] CVBS Out Audio Out DVD / VCR / VCD 3.1.2. Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN] HDMI1 IN IR-IN IR-OUT...

  • Page 24: Connecting Multiple Displays In A Daisy-Chain Configuration

    75BDL3151T 3.2.2. Using HDMI input [HDMI IN] HDMI1 IN HDMI Out IR-IN IR-OUT HDMI OUT HDMI2 IN 3.3. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 3.3.1. Digital video connection Connect the [HDMI OUT] connector of DISPLAY 1 to the [HDMI IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [HDMI] [HDMI IN] [HDMI OUT] [HDMI IN] Connect the [VGA OUT] connector of DISPLAY 1 to the [VGA IN] connector of DISPLAY 2.

  • Page 25: Ir Connection

    75BDL3151T 3.4. IR connection External IR Receiver DISPLAY 2 DISPLAY 1 [IR IN] [IR IN] [IR OUT] NOTE: 1. This display’s remote control sensor will stop working if the [IR IN] is connected. 2. IR loop through connection can support up to 9 displays. 3.5. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] (DVD / VCR / VCD) Remote Control...

  • Page 26: Touch Operation

    75BDL3151T 3.6. Touch Operation This display is equipped with a touch-sensitive screen and supports the Windows Touch features either by singletouch or multitouch operation. You can touch the pictures or words on the display gently with your fingers, and your computer will react. The following description illustrate some typical touch operation behavior. For further detail on how to run the touch operation, please refer to the Windows operation instruction. Single Tap Zoom in Touch the target on the screen with one fingertip for one quick tap, Touch the target on the screen with two fingertips holded together and then release. move them apart to zoom in (magnify) the screen image. Please note that a touch screen will respond to a light touch from your Zoom out fingertip when tapping within 4mm above touch screen. Double Tap Touch the target on the screen with two fingertips stretched apart and move them closer to zoom out (shrink) the screen image. Touch the target on the screen with one fingertip for two quick taps, then release. Touch and Hold Touch and hold the target on the screen with one fingertip for a while to display a context menu or options page for an item.
  • Page 27 75BDL3151T Fig. Touch screens interfering The Touch screen does not require a device driver be installed on the host computer for Windows OS, For Windows 7 and Windows 8, it is recommended that the standard Microsoft Window Control Panel calibration is used. Single Touch Multi_Touch Ubuntu Ubuntu 14.10 ≤10 Windows 7 Home Basic Windows 7 Home Premium Windows 7 Ultimate ≤10 Windows 7 Professional ≤10 Windows 8/8.1 ≤10 Windows Windows 10 Technical Preview ≤10 Windows 10 Home Windows 10 Pro ≤10 Windows 10 Education ≤10 Mac OS X 10.10 Mac OS X Mac OS X 10.11 Android Android 4.0+ ≤10 1. We highly recommend using the latest Service Pack with all Windows 7 OS.

  • Page 28: Operation

    75BDL3151T Operation • Admin mode will show five icons: “Settings”, “Apps”, “Network” “Storage” and “Help”. NOTE: T he control button described in this section is mainly on the • When you leave admin mode, system will return to last source. remote control unless specified otherwise. 1.)Home page of admin mode, this page has items: “Settings”, “Apps”, “Network” “Homesetting” “Storage” and “Help”. 4.1. Watch the Connected Video Source Settings : go to settings app. 1. Press [ ] SOURCE button.

  • Page 29: Media Player Introduction

    75BDL3151T 4. ） Network page 8.) Homesetting page: Background: choose the picture for Android background. Custom APP: add or remove the application software icon customization. PIN Code: select to set the pin code. Old password default is 0000. Wi-Fi Ethernet 5. ） Ethernet page 9.) Help page: Display QRcode page. 6.) Wi-Fi (Optional) 4.4. Media Player introduction: 1. Home page of Media Player, this page has three items: “Play”, “Compose” and “Settings”. Play : select playlist to play. 7.) Storage page: Compose: edit playlist.
  • Page 30 - add/remove : update playlist from source. - sort : sort playlist. - save/abort : save or abort playlist. - back : return. 4. If an empty playlist is chosen, the app will guide you to select the media source. All media files should be placed in /philips/ of root directory. For example, videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/ 7. If you choose “Sort” in the slide bar, you can change the order of files one by one.
  • Page 31 Note : if playlist file contains video and music, when the pd plays music file, the screen will be black. 10. If you make a playlist with all images files, before saving, the app will ask you if you want to have background music while playing slideshow. Step 2. Copy mpplaylistX.txt to “philips” folder of internal storage. You may use FTP to do this. - File path : /storage/emulated/legacy/philips Ex. /storage/emulated/legacy/philips/mpplaylist1.txt Step 3. Prepare media files to “photo”, “video” and “music” folder under “philips” folder, internal storage only. - Ex. /storage/emulated/legacy/philips/photo/xxx.jpg /storage/emulated/legacy/philips/video/yyy.mp4 /storage/emulated/legacy/philips/photo/zzz.mp3 Step 4.

  • Page 32: Browser Manual

    75BDL3151T 4.5. Browser manual 4. Press “Option” then left side will pop up a list Import : Import url list file 1. Home page of Browser app, this page has one item: “Settings”. Export : Export url list file Press Settings then enter next page. Delete all : Delete all url record on right side Back : left side list will be closed. 2. U sers can choose 1~7. Press any one will show a dialog. 4.1 Import • Click import 3. Enter url and press OK then data will save on List • Choose storage • Choose file contains urls...
  • Page 33 75BDL3151T • Import file and url will show on list • Dialog shows path file will be saved and file’s name. Press “save” button then urls on list will be saved. • File format for import Format should be like below with file extension “txt” 5. Press OK then url records will be saved 4.2 Export: • Click export 6. On url list page, if you select non-empty item, it will show a dialog to ask edit or play url. If press “Edit”, it will show edit url dialog, if press “Play”, it will show web page of item’s url. • Choose storage...

  • Page 34: Pdf Reader Play

    - Content : 3. Select “Compose” on home page, first you should choose one playlist to edit between FILE 1 and FILE 7. The pencil icon means the playlist is non-empty. Step 2. Copy bookmarklist.txt to “philips” folder of internal storage. You may use FTP to do this. - File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/bookmarklist.txt Step 3. Start browser app, it will auto import browser text file. PS. Once the playlist file (text) is imported, if an user change playlist by remote controller, this change will not be written to playlist text 4. If an empty playlist is chosen, the app will guide you to select the file.
  • Page 35 - Content : - delete all : delete all playlist files. - add/remove : update playlist from source. - sort : sort playlist. - save/abort : save or abort playlist. - back : return. Step 2. Copy pdfplaylistX.txt to “philips” folder of internal storage. You may use FTP to do this. - File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/pdfplaylist1.txt Step 3. Prepare pdf files to “pdf ” folder under “philips” folder, internal storage only. - Ex. /storage/emulated/legacy/philips/pdf/xxx.pdf /storage/emulated/legacy/philips/pdf/yyy.pdf /storage/emulated/legacy/philips/pdf/zzz.pdf...

  • Page 36: Cmnd & Play

    75BDL3151T 4.7. CMND & Play Step 4. Start pdf player app, it will auto import pdf player text file. PS. Once the playlist file (text) is imported, if an user change playlist 1) Server by remote controller, this change will not be written to playlist text Setup CMND & Play server address file. 2) Account Setup CMND & Play account Media Hotkey: 3) PIN Code Play : Playback file. Setup CMND & Play PIN code Pause: Pause page. (4) Version Fast forward: go to next page, if the page is end of the file, it will go There are two options, Ver.2 and Ver.3 to next file.

  • Page 37: Custom App

    75BDL3151T 4.8. Custom App User can set up the application for Customer Source. Note: (1) Only display User Installed app. (2) Will not show up system pre-install app. 4.8.1. OSD Menu operation: RCU: Source -> Custom If set up customer APK, PD will open customer app when switch source to Customer mode. If no set up customer APK, PD will show Black screen when switch source to Customer mode. If customer installed apk,user can select customer installed apk in list • Case 1: Not set up Custom App case. Customer app will show up and focus on first item automatically. 4.8.2. Function Introduction After set up, the setting screen display the app name. • Case 2: Set up Custom App case(there is entity circle to the right of Save icon) Select the App, click the Save will perform the function of storage.

  • Page 38: Setting

    75BDL3151T Setting Note : Ethernet will be disable automatically if Wi-Fi turn on and connect to Main items: network. (1) WI-Fi (2) Ethernet 5.3. More (Only show up when 4G module (3) More (Only show up when 4G module connected) connected) (4) Signage Display Via Enable/Disable to control Cellular networks On/OFF. (5) Display Note : (6) Apps 1. Only show up when 4G module connected. (7) Security 2. Only show up “Tethering & portable hotspot” when detect (8) Date & time Wi-Fi module. (9) Developer options 3. Network info will be different due to different carrier. (10) About 5.4. Signage Display (1) General Settings A.
  • Page 39 5.4.1. General Settings Set screenshot repeat cycle. User can choose screenshot time frame. (Multiple selection) 1. Signage Display Name 5)Save to Set up PD name “PD_” + Ethernet Mac Address. Set up screenshot save path, default path: internal storage. Note: Note: Input limitation: In root of internal storage, PD will create folder philips/Screenshot/ (1) length: Max 36 characters automatically. The picture will save to philips/Screenshot/. (2) format: no limit 6) Purge Screenshots Set up purge timeframe. One day or One week. 7) Send screenshots via email After check this item, it will send screenshot to email of administrator Please refer to Email notification Note: Please confirm Email setting is done.
  • Page 40 75BDL3151T 2)Manager Email Set up Receiver mail account 3)Test Send Test Mail To test Gmail account receive/send function. Note When Email is Disable, “Send Test Mail Button” button will gray out. 2. FTP Via Enable/Disable to control FTP On/Off. After set up, PD can share FTP files. Gmail safety setting If Gmail is not working when the settings are completed, please test the Gmail account via a PC and the below link https://www.google.com/settings/security/lesssecureapps And confirm on “Access for less secure apps”the“Turn on” item is selected. 1) Account Set up FTP account Note: Input limitation (1) Length: 4-20 characters (2) Format: Yahoo Email Security Setting I. English a-z and A-Z If Yahoo Email is not working when setting complete, please confirm II.
  • Page 41 75BDL3151T 2) Password 3. Remote Control Set up FTP password. Via Enable/Disable to Control Remote Control On/Off Note: User can input Server address. If server does not registered, it will ask user for PIN code. Input limitation Bind status: (1) Length: 6-20 characters (1) Will show network is disconnected if not yet connects to network. (2) Format: I. English a-z and A-Z (2) Will show Server is disconnected if network connected but II. Number 0-9 remote control server disconnected. FTP password display (3) Will show Server is unbinded if Remote control server feedback unbinded status. (1) Will show “*” symbol to instead password if set up password via remote control. (4) Will show Server is binded if Sever binded successfully. (2) After set up, the password text will show as “*” symbol. (5)Will show Error PIN code if input incorrect PIN code. Before password input: 5.4.3.
  • Page 42 5.4.5. System Tools System tools 4 main functions: (1) Clear Storage (2) Factory Reset (3) Import & Export (4) Clone Media Files Press OK to execute Reset function automatically . (5) External Storage 5.4.5.3 Import & Export 5.4.5.1 Clear Storage The function of Import & Export database and 3rd party apk. The purpose is to clear all data in Philips folders. Notes. Divided into 4 mode: (1) Saved file name: A. Settings_global.xml (1) Clear all Philips folders B. Settings_secure.xml (2) Only clear Philips folder under Internal storage. C. Settings_system.xml (3) Only clear Philips folder under USB storage. D. Signage_settings.db E. AndroidPDMediaPlayerData.db (4) Only clear Philips folder under SD card.
  • Page 43 75BDL3151T Note: 2. The cloned file extension name is “.cms”) If no Philips folder exists in USB or SD card, it will be created Clone Source automatically. (1) Internal storage List all available storage (internal/SD/USB) (a) check FTP (b) check /Philips/ (2) SD / USB Files under root Target Location (1) Internal storage Save to /Philips/ (2) SD / USB Save to root Import Signage Display Settings Import data from Philips folder under USB or SD card. (1) I mport database (2) Auto install 3 party apk from Philips/app/ List all available storage (Internal/SD/USB) 5.4.5.5 External Storage 1. External Storage Enable: SD card/USB External Storage Lock.

  • Page 44: Display

    75BDL3151T 5.5. Display 5.4.6. Misc. 5.4.6.1 Tiling tool (not support) User can modify the font size, can choose: Small/Normal/Large/Huge 5.4.6.2 TeamViewer Support Enable / Disable TeamViewer support. 5.6. Apps Display applications information. 5.4.7. System update Note 1. Local update (1) User options key on RCU to show setting option. (1) Will automatically search update.zip in USB or SD card. If found will be shown up in list for user selection. Note a. Only support Android Full image. b. File name should be update.zip c.

  • Page 45: Date & Time

    75BDL3151T 5.8. Date & time 5.11. Supplementary Via Scalar OSD menu to control Auto Time On/Off. 5.11.1. Quick Info Note: Add new NTP server to display current server IP . You can press “Info + 77” to startup quick info. The max value of date is 2037/12/31 in Android7.1. Quick info will show “Network” and “Monitor Information”, as below: Note: Operation hours : It is updated every minute. Heat status : It is updated every 5 seconds. 5.9. Developer options Android developer options. For more information please visit https://developer.android.com/index.html 5.11.2. How to custom an Android boot animation? 1.
  • Page 46 75BDL3151T - p 1 0 part0 If using WinRAR, set “Compression method” to “Store” - p 0 0 part1 a. The first line 1920 and 1080 define the width and height of the screen resolution. 30 is the frame rate in fps (frames per second) i.e. number of images to display per second. b. The second and third lines have a same format. The first ‘p’ defines play mode is immediately stop playing when boot complete. The number after ‘p’ defines repeat mode - specifying 0 would make the par t loop indefinitely till the device has boot complete. - specifying 1 would make the part playback once.
  • Page 47 1.2 Go to Admin Mode > Apps > File Manager 1.3 Using File Manager and find out your apk and then you can install. Just press “ok” on the selected apk. 2. Download apk by Chromium browser, and then go to <internal storage path>/Download/ by File Manager. 2.1 The rest of steps is the same as above. Please note, each model may have different <internal storage path>. (b) Via Adb Shell 1. Make sure that your PC can connect to Philips Android Signage Display using adb. 2. Prepare your apk in a folder(for example, C:\apkfolder) on PC. 3. Execute the following instruction by command line tool. C:\apkfolder> adb install -r apk_name.apk (c) Via Customized Intent 1. If you develop an apk which can download any android app, then your apk can issue a customized intent. 2. Giving the apk name and the path it was stored. The system will help you to install by program.

  • Page 48: Osd Menu

    75BDL3151T OSD Menu 6.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 6.2.1. Picture menu below. You can use it as a reference for further adjusting your display. 6.1. Navigating the OSD Menu Picture Brightness Screen Contrast Audio Black level 6.1.1. Navigating the OSD menu using the Configuration 1 Tint remote control Configuration 2 Color Advanced option Noise reduction...
  • Page 49 75BDL3151T Smart power Zoom mode HDMI, VGA: {Full} / {4:3}. Smart Power control is not relative to brightness control: 1. Initial setting Brigthness Playing media in Media Player : {Full} / {4:3} 70 (in the range from 0-100) There are no function when BROWSER, CMND & Play, PDF Player, Custom and Media Player UI and Android UI Power consumption 70% of maximum power consumption Zoom Mode will be “Full” when tiling 2. Smart Power OFF: no adaptation Full This mode restores the correct proportions MEDIUM: 80% of power consumption relative to current settings of pictures transmitted in 16:9 using the full HIGH: 65% of power consumption relative to current settings screen display.
  • Page 50 • {Off} {Configuration1}, {Configuration2}, and {Advanced option} to the • {On} (Default) factory preset values. • {User} Android settings will also reset when factory reset. 1. If Logo set to ON, both scalar Philips logo and android animation Press [ ] or [ ] button to select {Reset}, and press [OK] button to Philips logo will show. do the reset. 2. If Logo set to OFF, neither scalar Philips logo nor android animation logo will not show. 3. If Logo set to USER, custom logo option in android is not set, then there will be no boot logo when power on.
  • Page 51 75BDL3151T * Logo will NOT rotate with rotation setting/detection. Schedule This function allows you to program up to different scheduled time Heat status intervals for the display to activate. This function allows you to check the thermal status at any time. Schedule Monitor information Enable Shows information about your display, including model number, serial Start time 00:00 number, operating hours and software version. Days of the week Everyday HDMI Version Set the HDMI version to 1.4 or 2.0, this setting is only valid on HDMI input • Enable: Enable/disable schedule. If set start/end time is conflict or Configuration2 reset empty, input is empty or time conflict with other schedule list, you cannot enable schedule.
  • Page 52 75BDL3151T Advanced option reset Reset all settings except {Date and Time} in the Advanced option menu to factory preset values. 1. Press [OK] or [ ] button to enter the submenu. 2. Press [ ] or [ ] button to select {Reset} and press the [OK] button to restore settings to factory preset values. 3. Press the [ ] button or select {Cancel} and press the [OK] button to cancel and then return to the previous menu. USB cloning Copy PD settings from one set to another. Import: Copy settings from file to display Export: Copy PD settings into file. * Cloned data stores in USB. * PIP/PBP status will be applied after AC off/on action. USB-B switch Select the priority input of USB-B {Auto} or {Front} or {Back}. {Auto} : Automatic detection USB-B from Front or Back. If both USB-B are plugged in, Front is first priority.

  • Page 53: Supported Media Formats

    75BDL3151T Supported Media Formats USB Multimedia Codec Formats Video Decode Container MPEG-4 H.264 MPEG1/2 Video properties Average mixture rate 352*288 595Kbps √ 176*144 115Kbps DIVX4：352*240 DIVX4：1056Kbps Not support: MPEG4Part2： MPEG4Part2： 1920*1080 1253Kbps DIVX4, MPEG4 Part2, WMV2, VC1:1920*1080 VC1：8915Kbps WMV2:320*240 WMV2:704Kbps DIVX4：...
  • Page 54 75BDL3151T Image Decode Type Image Codec Photo Decode Encode Channel Remark Max Resolution: 7000 x 7000 JPEG JFIF file format 1.02 File Format: JPG, JPEG The limitation of max resolution depends on DRAM Max Resolution: 15360 x 8640 File Format: BMP The limitation of max resolution depends on DRAM Max Resolution: 15360 x 8640 File Format: PNG The limitation of max resolution depends on DRAM NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above. • Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

  • Page 55: Input Mode

    75BDL3151T Input Mode VGA/HDMI timing support Item Mode Resolution H.Freq. (KHz) V.Freq. (Hz) IBM VGA 10H 640x350 31.469 70.086 MACINTOSH 640x480 66.67 VESA 640x480 37.861 72.809 VESA 640x480 37.5 IBM VGA 3H 720x400 31.469 70.087 VESA 800x600 37.879 60.317 VESA 800x600 48.077 72.188 VESA 800x600...

  • Page 56: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 9.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 57: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 9.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 9.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.

  • Page 58: Cleaning And Troubleshooting

    75BDL3151T Cleaning and Troubleshooting 10.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution.

  • Page 59: Connecting External Equipment

    75BDL3151T 10.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. 3. Connect a signal connection to the display. 3. The selected input has no connection. 4. The display is in standby mode. Interference displayed on the display or audible Caused by surrounding electrical appliances or Move the display to another location to see is the noise is heard...
  • Page 60 75BDL3151T How to setup the settings in the menu to Daisy chained by RS232 and no IR cable 1. The first display sets as “Primary” on OSD control all the monitors at the same time and (Advanced option/IR control item), others set as individually via RC? “Secondary”. 2. The setup OSD will show on Top-Left of display. (Toggle MENU will show again if it disappear) 3. Default setting: ID NO: 0, GP NO: 0, this setting can control all displays by IR.

  • Page 61: Technical Specifications

    75BDL3151T Technical Specifications Display: Item Specifications Screen Size (Active Area) 189.3 cm / 74.5 inches Aspect Ratio 16:9 Number of pixels 3840 (H) x 2160 (V) Pixel pitch 0.429 (H) x 0.429 (V) [mm] Displayable colors 10 bits(D), 1.07 Billion colors Brightness (typical) 490 cd/m Contrast ratio (typical) 1200:1 Viewing angle 178 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 15W (L) + 15W (R) [RMS]/8Ω 82 dB/W/M/160 Hz ~ 13 KHz SPDIF Output SPDIF Port Serial digital audio output when input is HDMI 3.5mm phone jack x 2 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input RCA jack L/R x1 0.5V [rms] (Normal) / 2 Channel (L+R) Video Input RCA x 1 Composite 1V [p-p] (75Ω)
  • Page 62 75BDL3151T General: Item Specifications Power Input 100 - 240V~, 50 - 60Hz, 7.5A Power Output 100 - 240V~, 50 - 60Hz, 1A Power Consumption (Max) 450 W Power Consumption (typ.) 350W Power Consumption (Standby & Off) <0.5 W Dimensions (Without Stand) [W x H x D] 1739.7 x 1072.8 x 99 (Wall Mount) / 105.1 (With Handles) mm Weight (Without Stand) 64.7 Kg Gross Weight (Without Stand) 78.1 Kg Product Fiche : Item Specifications Energy Efficiency Class Visible Screen Size 189.3 cm / 74.5 inches On Mode Power Consumption (W) 357 W Annual Energy Consumption (kWh) 521 kWh Standby Power Consumption (W) 0.50 W Off Mode Power Consumption (W)
  • Page 63 2018 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.

This manual is also suitable for:

75bdl3151t/7575bdl3151t
