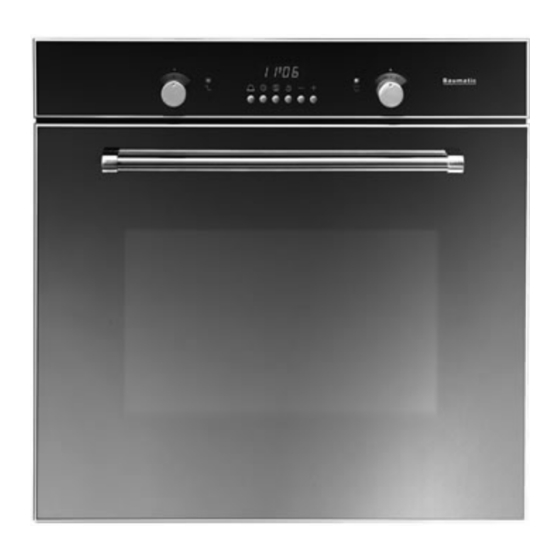

- Page 1 B272M 60cm Multifunction built in oven.
- Page 2 User Manual for your Baumatic B272M 60 cm Multifunction built in oven in mirror glass with aluminium frame NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 7 Specifications Product and aperture dimensions Product specifications Standard accessories Optional extras Electrical details Control panel Oven programmer/timer display Setting and using the oven programmer/timer 11-15 Selecting manual operation mode Setting the time of day Before first use Setting the minute minder function Setting the duration function... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Your new appliance is guaranteed against electrical or mechanical defects, subject to certain exclusions that are noted in Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights. o Repairs may only be carried out by Baumatic Service Engineers or their authorised service agent. - Page 6 Warning and safety instructions o This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
- Page 7 This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer’s instructions. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
Specifications Product Dimensions Aperture Dimensions Height: 596 mm Height: 585 mm Width: 596 mm Width: 560 mm Depth: 545 mm Depth: 560 mm Product specifications o 9 functions o Energy efficiency class: A o Oven capacity: 65 litres o LED full programmer o Cooling fan o Thermostatically controlled grill o Wipeclean enamel cavity... -
Page 9: Optional Extras
Optional extras: o BPS1 Pizza stone o TEL4KIT Telescopic runners kit Cooling fan o A tangential cooking fan is fitted inside of this appliance, to make the internal temperature of the oven stable and the external surface temperature lower. Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection:... -
Page 10: Control Panel
Control Panel Oven function selector knob Power indicator light Oven programmer/timer Timer “minute minder” button Timer “duration” button Timer “end cook” button Timer “manual operation” button Timer “minus” button Timer “plus” button Oven operating light Thermostat control knob Oven programmer/timer display “Auto”... -
Page 11: Setting And Using The Oven Programmer/Timer
Setting and using the oven programmer/timer Selecting manual operation mode After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into “manual operation”... -
Page 12: Setting The Minute Minder Function
Setting the minute minder function You are able to set the minute minder at any time, regardless of whether an oven function has been selected. You can set a period of time using the minute minder function and an alarm will sound when this period of time has elapsed. -
Page 13: Setting The Duration Function
Setting the duration function This function will allow you to set a countdown time similar to the minute minder function. However the oven will no longer continue to heat, once the countdown period has elapsed. o Use the thermostat control knob (11) to set the temperature that you require. -
Page 14: Setting The End Cook Function
Setting the end cook function This function is similar to the duration function, however instead of selecting a period of time that you wish the oven to switch off after. You select the time of day that you wish the oven to switch off at. -
Page 15: Setting The Start And End Time Function
Setting the start and end time function This function will allow you to set a time in the future that the oven switches on at and a time that the oven will switch off at. o Use the thermostat control knob (11) to set the temperature that you require. -
Page 16: Selecting A Cooking Function And Temperature
Selecting a cooking function and temperature Selecting manual operation mode After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into “manual operation”... -
Page 17: Thermostat Control Knob
FAN AND GRILL: This method of cooking utilises the top element in conjunction with the fan, which helps to provide a quick circulation of heat. This function is suitable where quick browning is required and “sealing” the juices in, such as steaks, hamburgers, some vegetables etc. -
Page 18: Cooking Guidelines
Cooking guidelines o Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference. o If you are using the fan oven function, then you should follow the information given on the food packaging for this particular mode of cooking. -
Page 19: Accessories
o You should also never line the base of your oven with aluminium foil. o During cooking, never place pans or cookware directly onto the bottom of your oven. They should always be placed on the shelves provided. o The grill heating element and other internal components of the oven become extremely hot during operation, avoid touching them inadvertently when handling the food which you are grilling. -
Page 20: Cleaning And Maintenance
Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. -
Page 21: Removable Oven Roof Liner
Removable oven roof liner o Your appliance is supplied with a roof liner, which should be slid over the top of the grill element. o Once you have finished cooking, the liner should be removed and thoroughly cleaned after each use of the appliance. o Do not allow fat and grease to build up on the oven liner, as this could cause a fire hazard. -
Page 22: Removing The Oven Door For Cleaning
Removing the oven door for cleaning To facilitate the cleaning of the inside of the oven and the outer frame of the oven, the door can be removed as follows:- o Open the oven door completely. o Insert an allen key into the hinge holes in the left hand hinge. -
Page 23: Installation
Care must be taken to ensure that the temperature of the mains supply cable does not exceed 50°C. o If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. -
Page 24: Installing The Oven Into The Kitchen Cabinet
Installing the oven into the kitchen cabinet Fixing the oven into a cabinet. o Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagram. o Ensure that the rear panel of the furniture housing unit has been removed. -
Page 25: My Appliance Isn't Working Correctly
o Ensure that the oven has been securely fixed into the housing unit. The fixing of the oven into the housing is made by using four screws. These should be screwed through the oven cabinet and into the housing unit. My appliance isn’t working correctly o The oven isn’t coming on. - Page 26 * Check that the operating instructions for setting the time of day and putting the appliance into manual operation mode have been followed. o The grill function works but the main oven does not. * Check that you have selected the correct cooking function. o The grill and top oven element is not working, or cuts out for long periods of time during use.
- Page 27 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 28: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Amperova 495 Baumatic Buildings, 46215, Librec 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 800 185 263 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900 Slovak Republic Sales Fax Baumatic Slovakia, s.r.o.
