Page 1: Notebook Pc User Manual

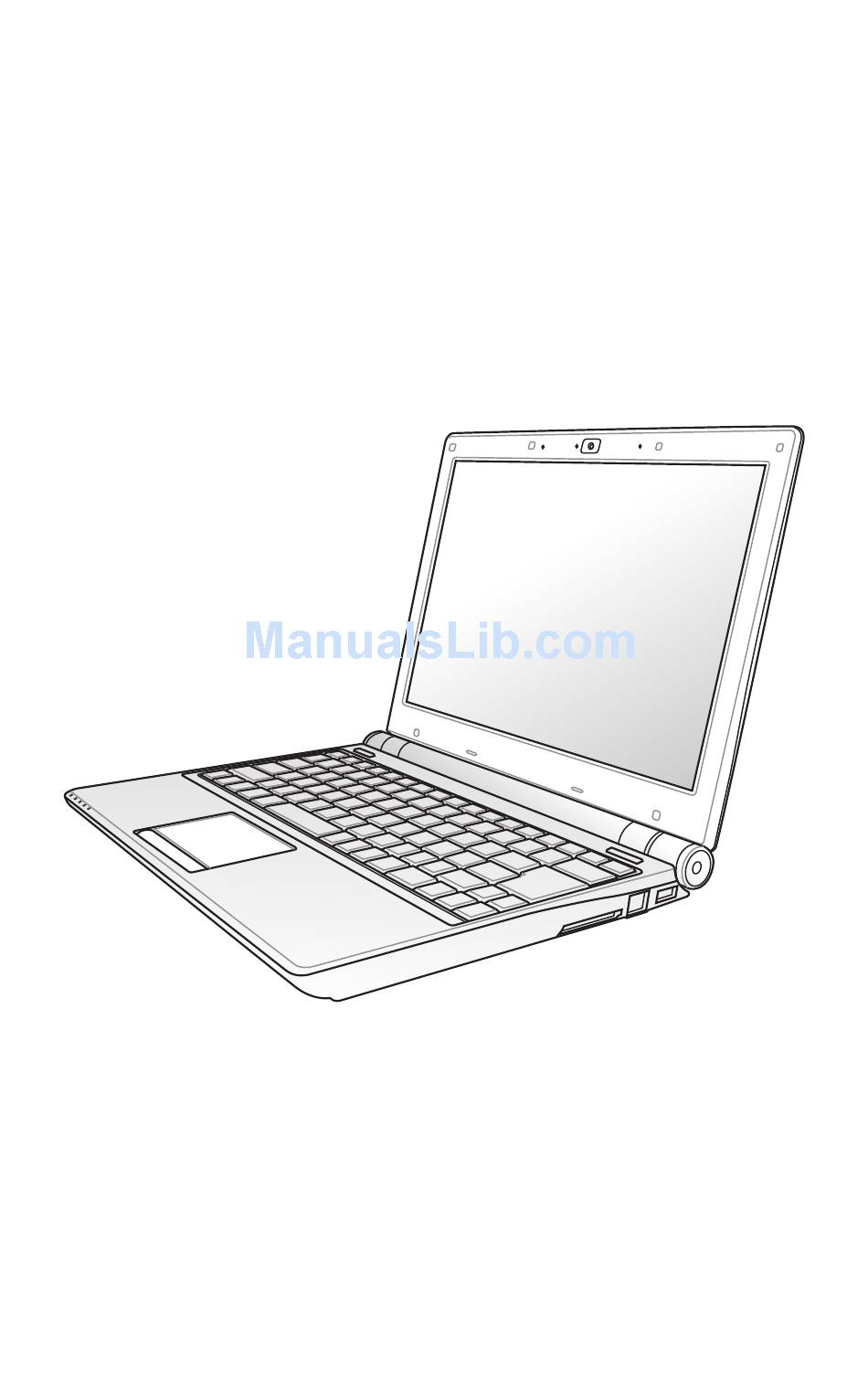

E4691 Notebook PC User Manual May 2009... -
Page 2: Table Of Contents
Table of Contents Safety Precautions ... 3 Preparing your Notebook PC ... 5 Using the Touchpad ... 7 Single-finger gesture input ... 7 Multi-finger gesture input ... 8 Knowing the Parts ... 9 Right Side ... 9 Left Side ...11 Rear Side ...13 Front Side ...14 Recovering Your Notebook PC ...15... -
Page 3: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the Notebook PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Disconnect the AC power and remove the battery pack(s) before cleaning. - Page 4 SAFE TEMP: This Notebook PC should only be used in environments with ambient temperatures between 10°C (50°F) and 35°C (95°F) DO NOT carry or cover a Notebook PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.
-
Page 5: Preparing Your Notebook Pc
Preparing your Notebook PC These are only quick instructions for using your Notebook PC. Installing the Battery Pack Connecting the Power Adapter 2 0 V V - 2 1 1 0 Notebook PC User Manual EXPRESS... - Page 6 Opening the LCD display panel Carefully lift up the display panel with your thumb. Slowly tilt the display panel forward or backward to a comfortable viewing angle. Turning on the Power Push and release the power button located beneath the LCD display panel.
-
Page 7: Using The Touchpad
Using the Touchpad Single-finger gesture input A. Slide your finger across the touchpad to move the pointer. You can also hold the left button and slide your finger to drag the selected item. Use the left and right buttons like a standard mouse. Notebook PC User Manual Right button Left button... -
Page 8: Multi-Finger Gesture Input
Multi-finger gesture input A. Use two fingertips to slide up/down/left/right on the touchpad to scroll a window up/down/left/right. Use three fingers to move horizontally on the touchpad to swipe pages. Swipe from left to the right to view the next page or right to the left to return to the previous pages. -
Page 9: Knowing The Parts
Knowing the Parts Right Side Optical Drive The Notebook PC comes in various models with different optical drives. The Notebook PC’s optical drive may support compact discs (CD) and/or digital video discs (DVD) and may have recordable (R) or re-writable (RW) capabilities. See the marketing specifications for details on each model. - Page 10 USB Port (2.0/1.1) The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0).
-
Page 11: Left Side
Left Side Kensington® Lock Port The Kensington® lock port allows the Notebook PC to be secured using Kensington® compatible Notebook PC security products. These security products usually include a metal cable and lock that prevent the Notebook PC to be removed from a fixed object. Some may also include a motion detector to sound an alarm when moved. - Page 12 USB Port (2.0/1.1) Display (Monitor) Output The 15-pin D-sub monitor port supports a standard VGA- compatible device such as a monitor or projector to allow viewing on a larger external display. HDMI Port (on selected models) HDMI HDMI (High-Definition Multimedia Interface) is an uncompressed all-digital audio/video interface between any audio/video source, such as a set-top box, DVD player, and A/V receiver and an audio and/or video monitor, such...
-
Page 13: Rear Side
SPDIF Output Jack This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices for digital audio output. Use this feature to turn the Notebook PC into a hi-fi home entertainment system. Headphone Output Jack The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to amplified speakers or headphones. -
Page 14: Front Side
Front Side Audio Speaker The built-in stereo speaker system allows you to hear audio without additional attachments. The multimedia sound system features an integrated digital audio controller that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled. -
Page 15: Recovering Your Notebook Pc
Using the Recovery Partition: Press [F9] during bootup. Press [Enter] to select Windows Setup [EMS Enabled]. Read the ASUS Preload Wizard screen and click Next. Select a partition option and click Next. Partition options: Recover Windows to first partition only. -
Page 16: Using Recovery Dvd (On Selected Models)
This option deletes all partitions from your hard drive and creates two new partitions “C” (60%) and “D” (40%). Follow the onscreen instructions to complete the recovery process. Visit the ASUS website at www.asus.com for updated drivers and utilities. Using Recovery DVD (on selected models) Creating the Recovery DVD: Double-click the AI Recovery Burner icon on the Window desktop. - Page 17 Follow the onscreen instructions to complete the recovery process. WARNING: Do not remove the Recovery disc, unless instructed to do so, during the recovery process or else your partitions will be unusable. Visit the ASUS website at www.asus.com for updated drivers and utilities. Notebook PC User Manual...
-
Page 18: Declarations And Safety Statements
Declarations and Safety Statements Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Fcc Radio Frequency (Rf) Exposure Caution Statement
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.) FCC Radio Frequency (RF) Exposure Caution Statement Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. -
Page 20: Ce Mark Warning
CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. IC Radiation Exposure Statement for Canada This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. -
Page 21: Wireless Operation Channel For Different Domains
Wireless Operation Channel for Different Domains N. America 2.412-2.462 GHz Japan 2.412-2.484 GHz Europe ETSI 2.412-2.472 GHz France Restricted Wireless Frequency Bands Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are: • 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz) •... - Page 22 60 Oise 64 Pyrénées Atlantique 68 Haut Rhin 71 Saône et Loire 82 Tarn et Garonne 89 Yonne 94 Val de Marne This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom.fr) Your WLAN Card transmits less than 100mW, but more than 10mW.
-
Page 23: Ul Safety Notices
UL Safety Notices Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70). -
Page 24: Power Safety Requirement
Check local regulations for disposal of electronic products. REACH Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://green.asus.com/english/REACH.htm. or H05VV-F, 2G, 0.75mm Notebook PC User Manual... -
Page 25: Nordic Lithium Cautions (For Lithium-Ion Batteries)
Nordic Lithium Cautions (for lithium-ion batteries) CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. (English) ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato. - Page 26 This product is protected by one or more of the following U.S. Patents: 7,416,423; 7,415,588; 7,413,402; 7,411,791; 7,408,855; 7,403,378; 7,400,721; 7,399,011; 7,394,533; 7,392,968; 7,388,754; 7,388,752; 7,388,743; 7,382,605; 7,382,314; 7,375,952; 7,374,433; 7,373,493; 7,369,402; 7,369,064; 7,362,568; 7,362,521; 7,362,276; 7,361,034; 7,359,209; 7,359,189; 7,355,372; 7,353,408; 7,352,586; 7,343,645; 7,342,777;...
- Page 27 Notebook PC User Manual...
- Page 28 Manufacturer Address, City Country Authorized Representative in Europe ASUS COMPUTER GmbH Address, City Country ASUSTek COMPUTER INC. No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C TAIWAN HARKORT STR. 21-23, 40880 RATINGEN GERMANY Notebook PC User Manual...
