Summary of Contents for Philips Selecon PLPROFILE1 MKI

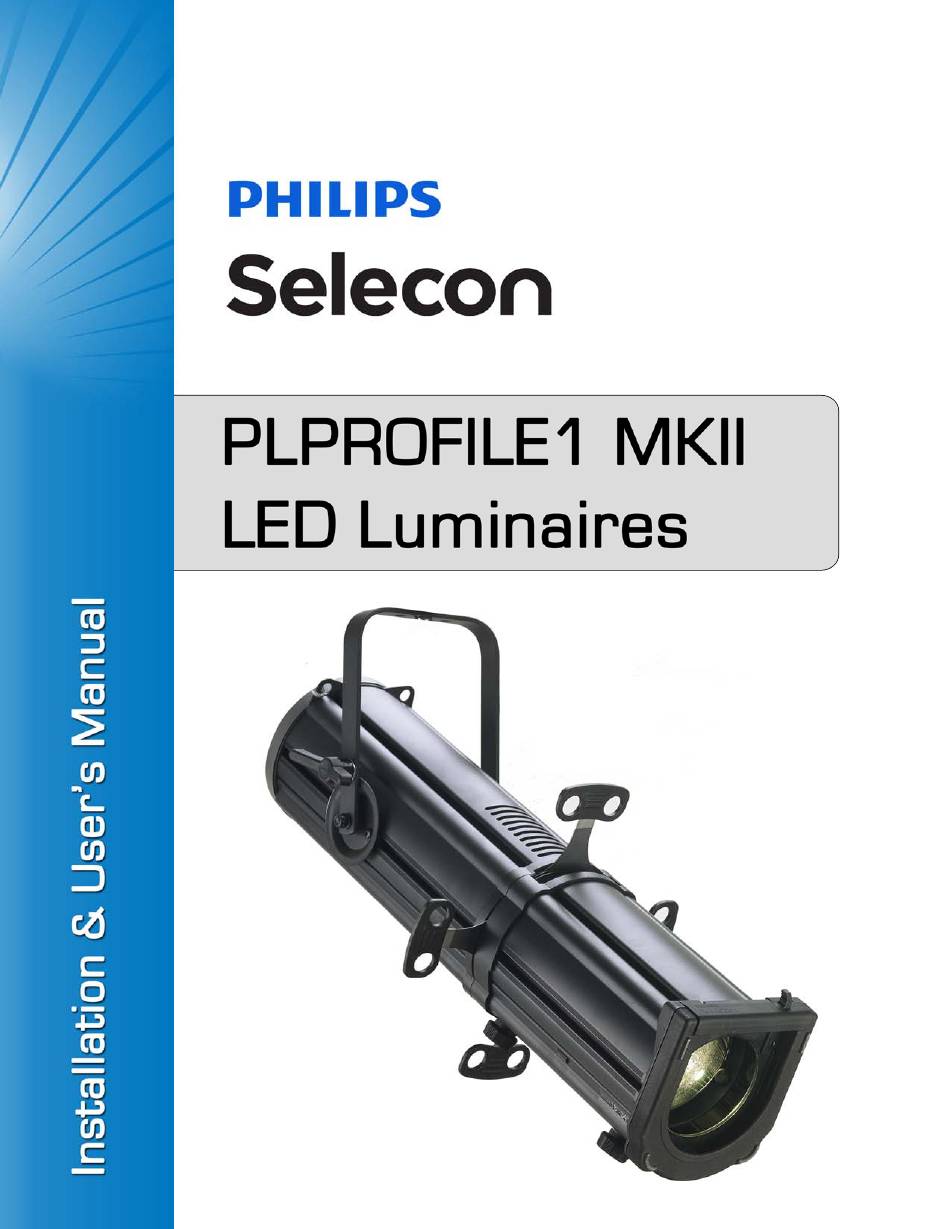

- Page 1 For PLZS1MKII-1834-03 & PLZS1MKII-2444-03...
-
Page 2: Philips Selecon Offices
Information contained in this document may not be duplicated in full or in part by any person without prior written approval of Philips Selecon. Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this document for all other purposes is specifically prohibited. -
Page 3: Important Information
Philips Selecon offers a three-year limited warranty of its luminaires against defects in materials or workmanship from the date of delivery. A copy of the Philips Selecon three-year limited warranty containing specific terms and conditions can be obtained from the Philips Selecon web site at www.seleconlight.com... -
Page 4: Table Of Contents
TABLE OF CONTENTS Philips Selecon Offices......................Inside Front Cover IMPORTANT INFORMATION Warnings and Notices............................1 Additional Resources for DMX512......................... 1 Philips Selecon Limited Three-Year Warranty ....................1 TABLE OF CONTENTS PREFACE About this Manual ..............................4 Accessories ................................4 PLPROFILE1 MKII LED Luminaire Power Input Cables ................4 PLPROFILE1 MKII LED Luminaire Zoomspot Lenses ................ - Page 5 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual DMX CONTROL 16-Bit Mode................................21 8-Bit Mode................................23 DMX 5-Channel (5-Chan) Mode ......................... 25 PLPROFILE1 MKII LED Luminaire DMX Timing Channel Detail..............25 PLPROFILE1 MKII LED Luminaire RDM Parameter IDs................. 31 CLEANING AND CARE Special Cleaning and Care Instructions........................
-
Page 6: Preface
Note: All PLPROFILE1 MKII LED Luminaires are universal voltage (100VAC to 240VAC, Auto-ranging). 2. Accessories Contact your Authorized Philips Selecon Dealer for price and availability of all accessories for PLPROFILE1 MKII LED Luminaires. Additional information can be found on the Philips Selecon web site at www.seleconlight.com. -
Page 7: Plprofile1 Mkii Led Luminaire Overview
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual PLPROFILE1 MKII LED LUMINAIRE OVERVIEW 1. PLPROFILE1 MKII LED Luminaire Components Major Luminaire Components Top Box Assembly (PLICB) (AC Input/Thru and DMX In/Out Connections) Accessory Holder (with latching door) Yoke Locking Handle Front of Unit Beam Shutter (4 each) Beam Angle Adjustment... -
Page 8: Top Box (Plicb) Luminaire Connections
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Top Box (PLICB) Luminaire Connections DMX512 Input Multi-Conductor Top Box to Luminaire Connection DMX512 Output/Thru Side View 1 AC (Power) Input Multi-Conductor Top Box to Luminaire Connection Side View 2 AC (Power) Output Figure 2: Top Box (PLICB) Connections LCD Display / Menu System 1) LCD Display (Menu System) -
Page 9: Installation And Set Up Power Requirements
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual INSTALLATION AND SET UP 1. Power Requirements WARNING! The PLPROFILE1 MKII LED Luminaire should be connected to a constant circuit or a relay device. It should never be connected to a dimmer or circuit controlled by a dimmer. The PLPROFILE1 MKII LED Luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). -
Page 10: Connecting To The Dmx512 Network
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Table 1: PLPROFILE1 MKII LED Luminaire AC Input Connections Main / Neutral Wire Color Purpose Line Brown Main / Line (100 to 240VAC) Blue Neutral AC Input Connector Green/Yellow Ground (on back of unit) Ground / Earth 3. -
Page 11: Mounting
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual 4. Mounting WARNING! Before attempting any installation or service, disconnect all power at power source. Dimming the luminaire does not disconnect power. Installation and service should only be performed by a trained and qualified professional. -
Page 12: Safety Cable Use
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Safety Cable Use The supplied safety cable MUST always be used when rigging luminaires on bars, truss, etc. (as shown in Figure The supplied safety cable is recommended for all hanging installation and may be required by national and local codes. -
Page 13: Focus And Beam Adjustments
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual FOCUS AND BEAM ADJUSTMENTS 1. Lens Tray Removal and Installation It is easy and quick to change to the lens tray on a PLPROFILE1 MKII LED Luminaire. Zoomspot lens trays (as shown in "PLPROFILE1 MKII LED Luminaire Zoomspot Lenses"... -
Page 14: Beam Shutter Operation
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Step 6. Hand-tighten Focus Adjustment Knob to lock position. Shutter (4 ea.) Zoom Adjustment Knob Lens Tray Assembly Focus Adjustment Knob Figure 8: Zoom and Focus Adjustment Knobs 3. Beam Shutter Operation Each PLPROFILE1 MKII LED Luminaire is equipped with four independent shutters (as shown in Figure 9) to block... -
Page 15: Gobo/Iris Access Panel
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual 4. Gobo/Iris Access Panel Each PLPROFILE1 MKII LED Luminaire is capable of holding one gobo holder, containing one "M" size glass or steel gobo. PLPROFILE1 MKII LED Luminaires are not supplied gobo holders or an iris. These items can be purchased from your local Authorized Dealer. -
Page 16: Operation And Programming
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual OPERATION AND PROGRAMMING 1. LCD Menu Operation The PLPROFILE1 MKII LED Luminaire’s LCD Display and Menu System provides local control for accessing all the fixture’s status information, menu options, and settings. Note: If there are multiple luminaires in a system, changes would need to be made at each LCD Menu as desired. Upon power up, the LCD will display the main screen showing the product type/name. -
Page 17: Lcd Menu System
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual 2. LCD Menu System The LCD Display Menu system consists of several categories. Use the four arrow buttons as required (refer to Figure 11 on page 14) to access and make changes to the menu items. When the desired menu item is reached, press [OK] to display the menu options. -
Page 18: Menu Structure
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual 3. Menu Structure Note: See "To navigate and access menu settings/selections:" on page 15 to learn how to access menus. To save changes, hit [OK]. Press [ESC] to cancel any changes you made. LCD Display / Menu System MAIN MENU... - Page 19 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Menu Structure (continued) Continued from previous page Edit a Preset Sub Menu Options Comments Users can: • Edit the current settings (look) to a specific recallable Preset in the fix- ture’s memory. •...
-
Page 20: Security
Note, Philips Selecon does not have records of PIN codes established by users or owners. Note: Contact Philips Selecon technical support if a unit is locked and the PIN code is lost for instructions on how to reset luminaire. -
Page 21: Presets
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Note: When the Fixture is Locked only the [ESC]/[MENU] key is functional. Pressing this key will display a request for a password. When a valid PIN code is entered the fixture is unlocked. 5. - Page 22 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Table 2: Settings Menu User-Settable Parameters Parameter Values Default Description General Normal Mode (120W), Sets the luminaire’s output mode - Normal Power, Fan Studio Mode (80W), or Normal Mode Mode (120W), Studio Mode (80W) or Quiet Mode (60W) Quiet Mode (60W).
-
Page 23: Dmx Control
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual DMX CONTROL This section contains information for operating the luminaire using DMX control in 16-Bit, 8-Bit, or 3-Channel (3- Chan) modes. For Menu options and detailed information, see "Settings" on page Note: These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. - Page 24 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Table 3: PLPROFILE1 MKII LED Luminaire DMX Channel Mapping (16-Bit Mode) Not used (for future use) Allows for luminaire timing of intensity. Profile should default to DMX 255 for smoothest Intensity Time 0 - 255 0 - 100% console fade times.
-
Page 25: 8-Bit Mode
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual 2. 8-Bit Mode Table 2-1 provides DMX channel mapping of all DMX512 control values when the PLPROFILE1 MKII LED Luminaire is in 8-bit DMX512 mode (as set by the luminaire’s menu system). Table 2-1: PLPROFILE1 MKII LED Luminaire DMX Channel Mapping (8-Bit Mode) Default - recommended... - Page 26 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Table 2-1: PLPROFILE1 MKII LED Luminaire DMX Channel Mapping (8-Bit Mode) Used to set different modes, parameters, and functions of the luminaire. Set control channel value for desired action. Hold value for at least 3 seconds.
-
Page 27: Dmx 5-Channel (5-Chan) Mode
PLPROFILE1 MKII LED Luminaires Installation & User’s Manual 3. DMX 5-Channel (5-Chan) Mode Table 2-2 provides DMX channel mapping of all DMX512 control values when the PLPROFILE1 MKII LED Luminaire is in 5-Channel (5-Chan) DMX512 mode (as set by the luminaire’s menu system). Note: This mode is for the simplest control of the luminaire’s LEDs and intensity for limited control consoles and controllers. - Page 28 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual % Value = Seconds 10.2 10.4 10.6 10.8 11.2 11.4 11.6 11.8 12.2 DMX CONTROL...
- Page 29 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual % Value = Seconds 12.4 12.6 12.8 13.2 13.4 13.6 13.8 14.2 14.4 14.6 14.8 15.2 15.4 15.6 15.8 16.2 16.4 16.6 16.8 17.2 17.4 17.6 17.8 18.2 18.4 18.6 18.8 19.2 19.4 19.6 19.8...
- Page 30 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual % Value = Seconds DMX CONTROL...
- Page 31 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual % Value = Seconds PLPROFILE1 MKII LED Luminaire DMX Timing Channel Detail...
- Page 32 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual % Value = Seconds 250* 60mS 251* 80mS 252* 100mS 253* 120mS 254* 140mS 255* 160mS (default) Note: * DMX values 250 to 255 provide smoothing when using console fade timing. DMX value 255 (recommended default) will provide the smoothest timing.
-
Page 33: Plprofile1 Mkii Led Luminaire Rdm Parameter Ids
Table 4: PLPROFILE1 MKII LED Luminaire RDM Product Parameters IDs Model ID Manufacturer Model Description Product Category 0X008C Philips Selecon PL ZoomSpot MK2 0X0101 Table 5: PLPROFILE1 MKII LED Luminaire RDM UID MSB of ESTA LSB of ESTA 1st of... - Page 34 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Table 6: PLPROFILE1 MKII LED Luminaire RDM Parameters IDs RDM Parameter IDs Value Comment Implemented Allowed Allowed ■ ■ MANUFACTURER_LABEL 0x0081 ■ ■ ■ DEVICE_LABEL 0x0082 ■ ■ ■ FACTORY_DEFAULTS 0x0090 ■ LANGUAGE_CAPABILITIES 0x00A0 ■...
- Page 35 PLPROFILE1 MKII LED Luminaires Installation & User’s Manual Table 6: PLPROFILE1 MKII LED Luminaire RDM Parameters IDs RDM Parameter IDs Value Comment Implemented Allowed Allowed ■ ■ PRESET_PLAYBACK 0x1031 Table 7: PLPROFILE1 MKII LED Luminaire RDM Manufacturer Status IDs Manufacturer Specific messages are in the range of 0x8000 - 0xFFDF. Each Manufacturer-specific Status ID shall have a unique meaning, which shall be consistent across all products having a given Manufacturer ID.
-
Page 36: Cleaning And Care
If you have any questions regarding the use or care of your PLPROFILE1 MKII LED Luminaire, please contact Philips Selecon technical support or your local Authorized Dealer. 2. Lens Tray Assembly Cleaning To clean the front lens: Step 1. -
Page 37: Service And Maintenance
Step 6. Re-latch lens tray assembly. 3. Service and Maintenance For all other service and maintenance issues, please contact your local Philips Selecon office or an Authorized Service Center. WARNING! Disassembly (other than as described herein), alterations, unauthorized service, etc. will void the product warranty. -
Page 38: Troubleshooting
1. Troubleshooting Guide The chart below provides possible causes and remedies for various error messages and/or symptoms. WARNING! Any service and maintenance (including troubleshooting), other than described herein should be performed by an Authorized Philips Selecon Dealer or Service Center. Description Symptom Possible Cause/Remedy Unit is set to Preset Off... -
Page 39: Technical Specifications
Compliance: cETLus Listed, CE, and C-Tick Marked Note: Common model specifications shown. For specific model specifications, features, and accessories, refer to the product specification sheet or visit the Philips Selecon web site at www.seleconlight.com for more details. 2. PLPROFILE1 MKII LED Luminaire Dimensions 310.0 mm / 12.2 in.
