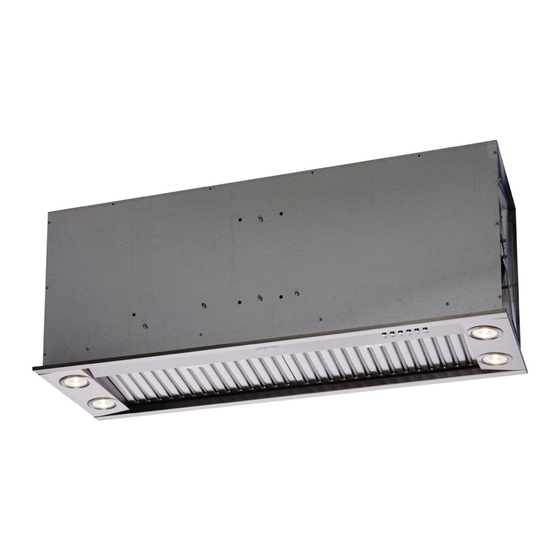

Summary of Contents for Smeg KDIAM90AX
- Page 1 Instructions Manual...
- Page 2 Once you remove the appliance from its packaging make sure it is intact. If the • product is damaged, do not use it and contact the Smeg assistance network. It is recommended that a qualified technician performs installation and adjustment •...
-
Page 3: Operation
OPERATION This appliance has been designed to work as a DUCTING hood (evacuation of the air) or RECYCLING hood (recycling of the filtered air). DUCTED MODE: In order to use the hood in the ducted mode, connect the motor • intake, by means of a suitable ducting hose not less than 120mm diameter, directly to the external fumes outlet. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS: The hood is supplied with all the necessary Fig.1 accessories for installation. The minimum distance between the cooker and the lower part of the hood must be 750 mm for gas cookers and 650 mm for electric cookers (Fig. 1). The hood is supplied with a motor intake (Fig 2). -
Page 5: Chimney Assembly
Recirculation mode: Fig.4 Leave the motor intake free. Install the active carbon filters as shown in page 7. Warning: if the hood is not supplied with an active carbon filter, it is necessary to buy it separately and assemble it before using the hood. m) Chimneyassembly: Adjust the two telescopic chimneys to the required length (fig. -
Page 6: Control Panel
OPERATING INSTRUCTIONS: CONTROL PANEL: In order to achieve the best performance, it is recommended to start the hood a few minutes before starting cooking and keep it on for at least 15 minutes after finishing cooking or after all fumes and odours have disappeared. To start the hood, identify your type of control panel and follow the instructions: SLIDER: ... -
Page 7: Optional Functions
ELECTRONIC PUSHBUTTONS: Lights ON/OFF OFF/1 speed Speed adjustment Filters reset button OPTIONAL FUNCTIONS: - AUTO POWER-OFF TIMER: Pushing one of the speed adjustment buttons (2-3-4) twice, you will activate the “Auto power-off timer” function that turns the motor and light off 10 mins. - Page 8 METAL FILTERS CLEANING: Special attention should be reserved to the metal grease filters. An excess of grease in the filter, as well as affecting the performance of the hood, can also be a fire risk. To avert fires, the filters must be cleaned regularly at least once a month or more frequently, in the case of a heavy use of the appliance.
-
Page 9: Lights Replacement
LIGHTS REPLACEMENT: Before performing cleaning and/or maintenance operation, disconnect the hood from the mains supply. According to the model, the hood can be equipped with different kind of lighting such as incandescent, halogen and neon lamps. Incandescent lamps: E14 – 40W 230V lamps. To replace them, remove the transparent fixture from the control panel, unscrew the lamp and screw in the new one. -
Page 10: Warranty & Service
SERVICE The hood packaging includes, together with this operating and maintenance booklet, the Smeg Warranty Booklet. Please read the Smeg Warranty Booklet for complete information about the warranty (N.B. bulbs and filters are not covered by your warranty). In the case of failure, please call Fig.7... - Page 11 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
- Page 12 Cod. 1720120_02...
-
Page 13: Safety Warnings
Safety Warnings Model KDIAM90AX The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely. - Page 14 For Under cupboard and Universal model KDIAM Make cut out to the following sizes. MODEL HOOD SIZE BASE SIZE CUT OUT DIMENSION Model Hood Size Base size Cut Out Dimension KDIAM90AX 258x880 280x900 270x885 For the fixed Hoods 1. Loosen screws A and B by turning anti-clockwise.
