HDTVI/AHD/HDCVI/CVBS to HDMI/VGA/Composite
XL-ADH11A support 4 analog cameras: HD-TVI/AHD/HDCVI/CVBS, convert signal to HDMI,
VGA and Composite Video or loop out which enabling users to use cost effective
HDMI/VGA/BNC monitor to display all HD analog or regular analog camera. It also supports 3
different output displays at same time. It is perfect solution when user wants to display HD
analog camera to different monitor without HD DVR.
The
2
IN/OUT function could works with 3 different function selections: CVBS output or
HD loop out as a distributor function or as second HD camera input could be works as a switcher
function with PIP feature to display 2 sources in one monitor.
Features:
Converts HD-TVI/AHD/CVI/NTSC/PAL/960H signal to HDMI, VGA, Composite Video or
out.
Input support: HD-TVI/AHD/HDCVI support: 720p@25/30/50/60, 1080p@25/30Hz.
Output support: HDMI, VGA, Composite Video or loop out.
3 outputs could be display simultaneously.
BNC connector function selection: loop output, composite video output or as second camera
input.
Built in PIP (display two input picture) under dual camera input mode.
HDMI/VGA output support: 480p,576p,720p,1080i,1080p
Composite video output support NTSC, PAL.
Composite output built in underscan adjustment. (allow
Built in OSD to display input/output setting.
HDMI and DVI compliant. (support DVI monitor by a HDMI to DVI adaptor)
Installation:

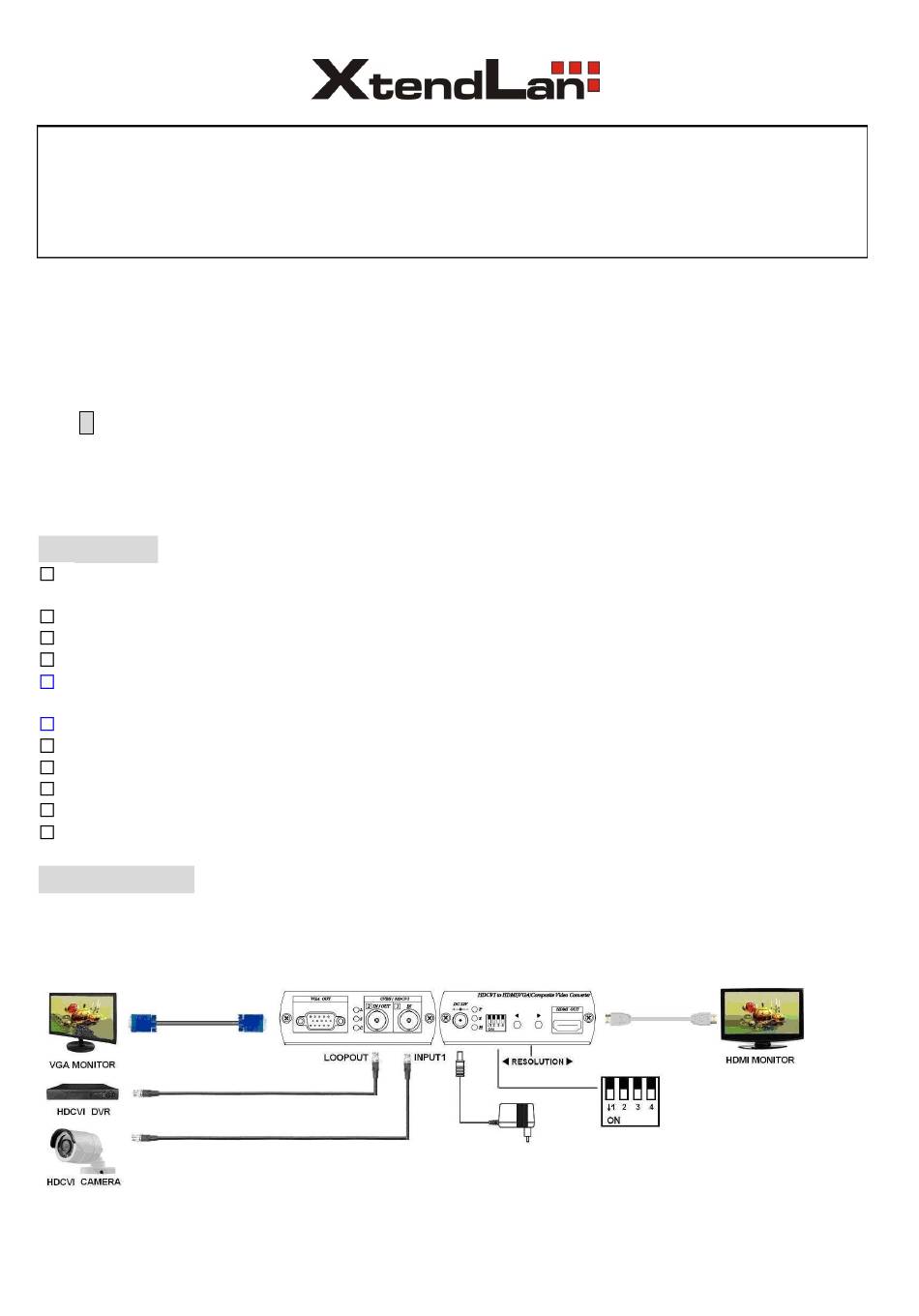

Loop out Mode:
* 3 outputs: HDMI, VGA, loop output as a distributor.
XL-ADH11A
Video Converter
the edges of the picture fit well)
loop
1
Advertisement
Related Manuals for XtendLan XL-ADH11A
Summary of Contents for XtendLan XL-ADH11A
- Page 1 HDTVI/AHD/HDCVI/CVBS to HDMI/VGA/Composite Video Converter XL-ADH11A support 4 analog cameras: HD-TVI/AHD/HDCVI/CVBS, convert signal to HDMI, VGA and Composite Video or loop out which enabling users to use cost effective HDMI/VGA/BNC monitor to display all HD analog or regular analog camera. It also supports 3 different output displays at same time.
-
Page 2: Panel View
CVBS Output Mode: * 3 outputs: HDMI, VGA, CVBS could be display simultaneously. HD-TVI/AHD/CVI/NTSC/PAL/960H Input Mode: * Allow two camera inputs with 2 outputs: HDMI, VGA as a switcher. Panel View: DC 12V DC 12V power terminal HDMI OUT HDMI output interface VGA OUT VGA output interface 1 IN... - Page 3 Switch mode + Button Function Quick reference: When press two buttons at same time to switch video input as AHD or HDCVI mode (HD-TVI mode: no need to switch), after complete switching, the power must be resetting to be effective the new mode.
- Page 4 Button for underscan adjustment, press decrease CVBS OUT underscan, press enlarge CVBS OUT underscan CVBS underscan adjustment is to avoid overscan situation on CRT screen (Overscan is the situation in which not all of a televised image is present on a viewing screen) which cause picture enlarge and could not see the edge of screen.
-
Page 5: Restore Factory Default
This product HDHDCVI input and HDHDCVI loop out do not support audio and data transmission. When AHD or HDCVI input model selection error, the picture will become black and white. ITEM NO XL-ADH11A Video Input HD-TVI / AHD / HDCVI 720p@25/30/50/60Hz、1080p@25/30Hz、NTSC、PAL、960H Video Output HDMI &...
