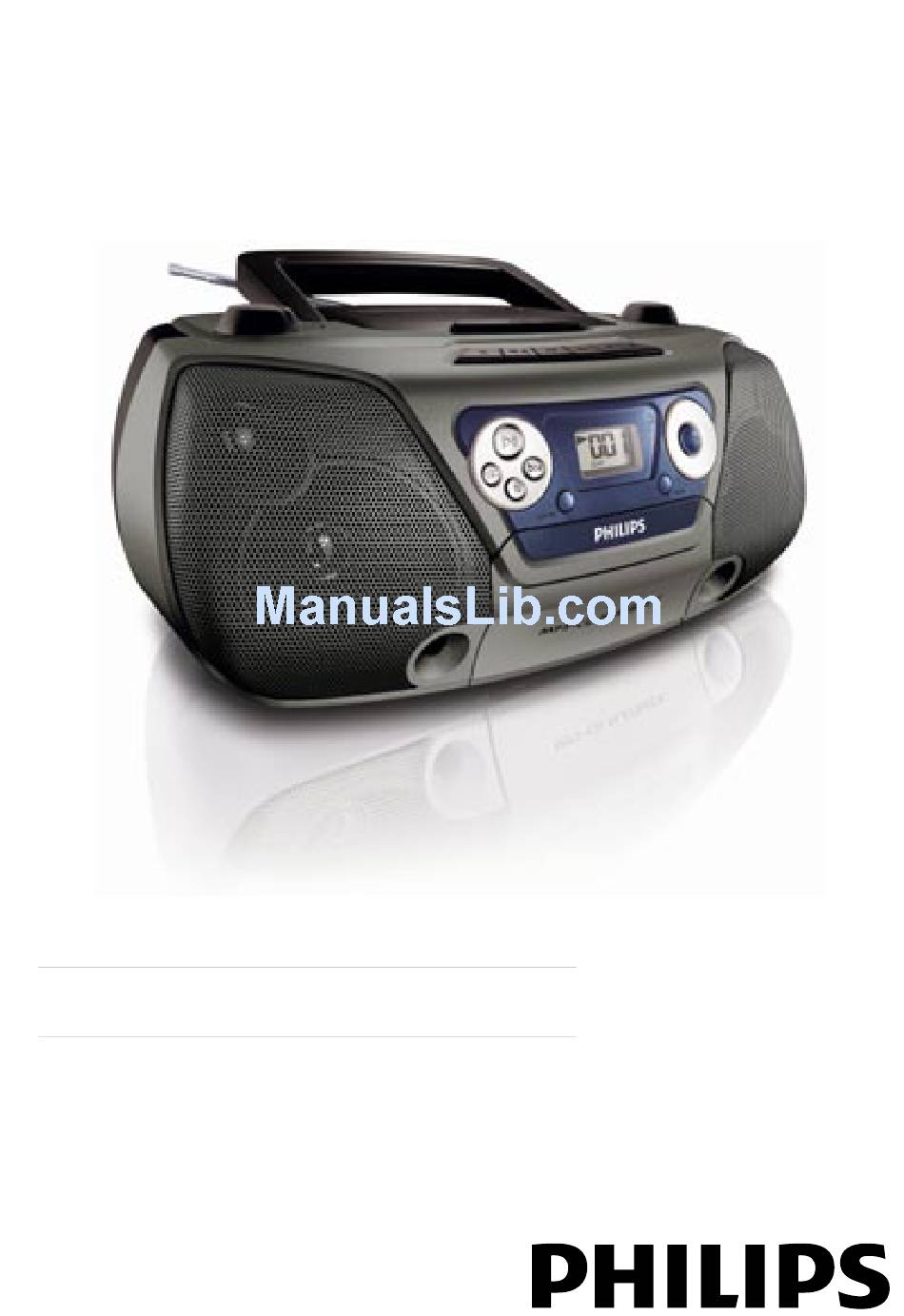

- Page 1 AZ1852 Register your product and get support at www.philips.com/welcome User manual...
-
Page 2: Table Of Contents
Contents Important Safety Notice Trademark notice Your CD Soundmachine Introduction What’s in the box Overview of the main unit Overview of the remote control Get started Install batteries Prepare the remote control Connect power Play Play CD Play tape Play from USB devices Listen to an external device... - Page 3 Play options Adjust volume level Enhance bass Select play modes Program tracks Record from CD/USB to tape Record from radio to tape CD Ripping Tape/Tuner Ripping Folder and file name Delete from USB device Listen to the radio Tune to a radio station Product information Specifications Supported MP3 disc formats...
-
Page 4: Important
Important Safety Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 5 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Page 6 Warning • Never remove the casing of this apparatus. • Never lubricate any part of this apparatus. • Never place this apparatus on other electrical equipment. • Keep this apparatus away from direct sunlight, naked flames or heat. • Never look into the laser beam inside this apparatus. •...
-
Page 7: Notice
This product complies with the radio interference requirements of the European Community. Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Recycling Your product is designed and manufactured with high quality materials... - Page 8 When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products.
-
Page 9: Trademark Notice
The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes. Trademark notice Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. -
Page 10: What's In The Box
Note • The type plate is located on the back of the apparatus. What’s in the box Check and identify the contents of the package: • Main unit • AC power cord • Remote control • User Manual • Quick Start Guide... -
Page 11: Overview Of The Main Unit
Overview of the main unit Antenna • USB socket. Source selector:CD, USB, FM, TAPE (OFF). • Select source and turn on/off the unit. LIFT-OPEN • Open/Close the CD compartment VOLUME • Adjust volume. • Fast rewind/wind the tape. UPPER 2 LOWER 2 BATTERY SUPPLY: 6 x 1.5V R14/ UM2/ C CELL... - Page 12 • Stop the tape or open the tape compartment. • Pause tape Play. • Start or pause CD play • Skip to the previous/next track. • Search within a track. • Stop play or erase a program. USB REC • Record from a disc to a USB device.
-
Page 13: Overview Of The Remote Control
MP3 LINK • Jack for an external audio device. Overview of the remote control • Search within a track. • Stop play. • Erase a program. • Start or pause play. • Skip to the previous/next track. AL-/AL+ • Skip to the previous/next album. -
Page 14: Get Started
Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here: Model No. -
Page 15: Prepare The Remote Control
1 Open the battery compartment. 2 Insert 6 batteries (type: R-14, UM-2 or C-cells) with correct polarity (+/-) as indicated. 3 Close the battery compartment. UPPER 2 LOWER 2 BATTERY SUPPLY: 6 x 1.5V R14/ UM2/ C CELL Prepare the remote control Caution •... -
Page 16: Connect Power
Connect power Warning • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the apparatus. • Risk of electric shock! When you disconnect the AC power, always pull the plug from the socket. -
Page 17: Play
Note • To save energy: turn off the apparatus after use. Play Play CD 1 Slide the source selector to CD. 2 Pull LIFT-OPEN to open the disc tray. 3 Insert a disc with the printed side facing up, then close the disc tray. Play starts automatically. -
Page 18: Play Tape
Play tape 1 Slide the source selector to TAPE. 2 Press on main unit to open the tape door. 3 Load the tape with the open side upward and the full spool to the left. 4 Press on main unit to start play. •... -
Page 19: Play Options
Play options Adjust volume level 1 During play, turn VOLUME to increase/decrease the volume level. Enhance bass 1 During play, press DBB to turn on or off dynamic bass enhancement. If DBB is activated, DBB is displayed. » Select play modes 1 Press MODE repeatedly to select a play mode: •... -
Page 20: Program Tracks
Program tracks You can program a maximum of 20 tracks. 1 In CD/USB mode, at the stop position, press PROG to activate the program mode. [PROG] (program) starts to blinks. » 2 For MP3/WMA tracks, press AL-/AL+ to select an album. 3 Press to select a track number, then press PROG to confirm. -
Page 21: Record From Cd/Usb To Tape
Record from CD/USB to tape 1 Slide the source to CD/USB. 2 Insert a CD/USB device. 3 (Optional) Set playing sequence (see “ Program tracks “ section). 4 Press to open the tape door. 5 Insert a blank cassette. 6 Press to start recording. -
Page 22: Tape/Tuner Ripping
Record all tracks 1 Insert an audio CD. 2 Slide the source selector to CD. 3 Press to stop playing. 4 Plug in an USB device. 5 Press USB REC to start recording. [RIP] and [ALB] appear. » • To stop recording, press Note •... -
Page 23: Folder And File Name
Press USB REC. Tape/tuner ripping begins. [Rip] flashes on display. » To stop ripping, Press Folder and file name For USB devices, a folder named RECORD is created after ripping, files are saved as below: Root Sub-folder Folder RECORD CDREC_01 CDREC_02 CDREC_XX COPY_01... -
Page 24: Delete From Usb Device
Delete from USB device 1 During USB play, press • To delete an audio folder, in the stop position, press AL-/AL+ to select an audio folder. 2 Press DEL . A confirmation message is displayed. » 3 While the message is displayed, press DEL again to confirm. •... -
Page 25: Specifications
Specifications Disc Laser Type Disc Diameter Support Disc Audio DAC Total Harmonic Distortion Frequency Response S/N Ratio Tuner Tuning Range Total Harmonic Distortion Signal to Noise Ratio General Power supply Operation Power Consumption 25 W Dimensions - Main Unit (W x H x D) Net Weight Gross Weight Semiconductor... -
Page 26: Supported Mp3 Disc Formats
Supported MP3 disc formats • ISO9660, Joliet • Maximum title number: 512 (depending on file name length) • Maximum album number: 255 • Supported sampling frequencies: 32 kHz, 44.1kHz, 48 kHz • Supported Bit-rates: 32~256 (kbps), variable bit rates USB playability information Compatible USB devices: •... -
Page 27: Maintenance
Clean the disc lens • After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good play quality, clean the disc lens with Philips CD lens cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. -
Page 28: Troubleshooting
If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.Philips.com/support), or contact Philips (see Contact information). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available. - Page 29 • Aim the remote control directly at the sensor on the front of the unit. USB device not supported • The USB device is incompatible with the apparatus. Try another one. No disc detected • Insert a disc. • Check if the disc is inserted upside down. •...
- Page 30 © Royal Philips Electronics N.V. 2010 All rights reserved. AZ1852_61_UM_V2.0_1012...
