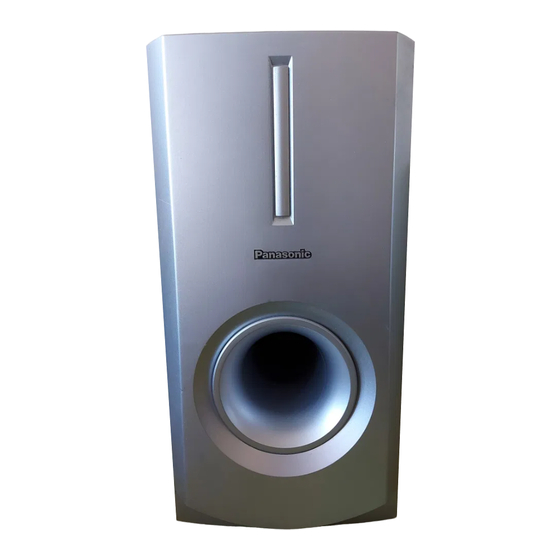

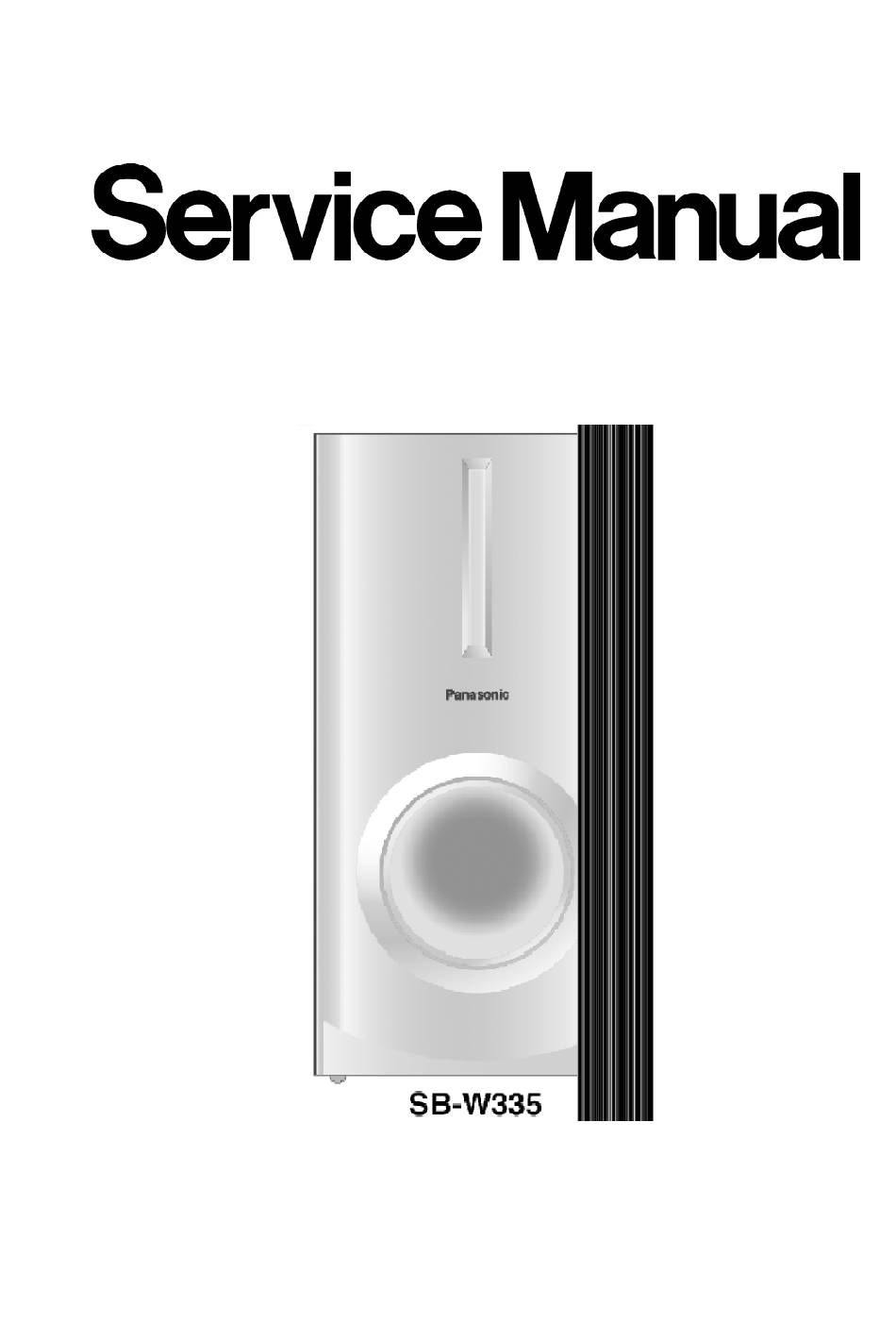

- Page 1 ORDER NO. MD0506270C8 Subwoofer System SB-W335EG Colour (S)... Silver Type SPECIFICATIONS Specification...
- Page 2 For HT330 Music Center : SA-HT330EB-S System : SC-HT330EB- Front Speaker : SB-FS335EG-S Surround Speaker : SB-FS335EG-S Center Speaker : SB-PC335EG-S Active Subwoofer : SB-W335EG-S Music Center : SA-HT330GCPS System : SC- HT330GCPS Front Speaker : SB-FS335EG-S Surround Speaker : SB-FS335EG-S...
-
Page 3: Disassembly Process
Music Center : SA-HT330GC-S System : SC-HT330GC- Front Speaker : SB-FS335EG-S Surround Speaker : SB-FS335EG-S Center Speaker : SB-PC335EG-S Active Subwoofer : SB-W335EG-S For HT335 Music Center : SA-HT335E-S System : SC-HT335E-S Front Speaker : SB-FS335EG-S Surround Speaker : SB-FS335EG-S... - Page 4 Step 1: Slot in a steel ruler to make a gap allowance between the Front Cabinet Assembly and the Speaker Cabinet Assembly as arrow shown. Step 2: Slot a piece of wood chip in between the Front Cabinet Assembly and the steel ruler as arrow shown.
- Page 5 Note: Be careful with the bosses which are glued to the Speaker Cabinet Assembly. Step 4: Remove the Front Cabinet Assembly from the Speaker Cabinet Assembly as arrow shown. 1.1.1. Assembly of the Front Cabinet Assembly Step 1: Clean up the remaining glue at the 8 bosses as arrow shown and replace with the normal glue.
- Page 6 Step 2: Replace the Front Cabinet Assembly firmly back to the Speaker Cabinet Assembly. 1.2. Disassembly of the Woofer Step 1: Remove all 4 screws from the Woofer Guard. Step 2: Take out the Woofer from Speaker Cabinet Assembly as arrow shown.
-
Page 7: Connection Of The Speaker Cables
Step 3: Remove the Woofer by detaching the (+) white and (-) blue wires. 2. Connection of the Speaker Cables - Be sure to connect speaker cables before connecting the AC power supply cord. - The load impedance of any speaker used with this unit must be 4 . - Be sure to connect the cable from the right speaker to the right terminal and the cable from the left speaker to the left terminal. -
Page 8: Cabinet Parts Location
Notes : - To prevent damage to circuitry, never short-circuit positive (+) and negative (-) speaker wires. - Be sure to connect only positive (white) wires to positive (+) terminals and negative (blue) wires to negative (-) terminals. Incorrect connection can damage the speakers. 3. -
Page 9: Replacement Parts List
5. Replacement Parts List Notes : - Important safety notice : When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list. - [M] indicates in the Remarks columns indicates parts supplied by PAVCSG. - Page 10 Ref. No. Part No. Part Name & Description Remarks SPEAKER L0AA16A00017 WOFFER UNIT 6. Packaging (SB-HT335EG-S & SB-W335EG-S) Note: The diagram below shows the packaging for SB-HT335EG-S & SB-W335EG-S.
- Page 11 FLE0506W/S...
